Electrical Diagrams

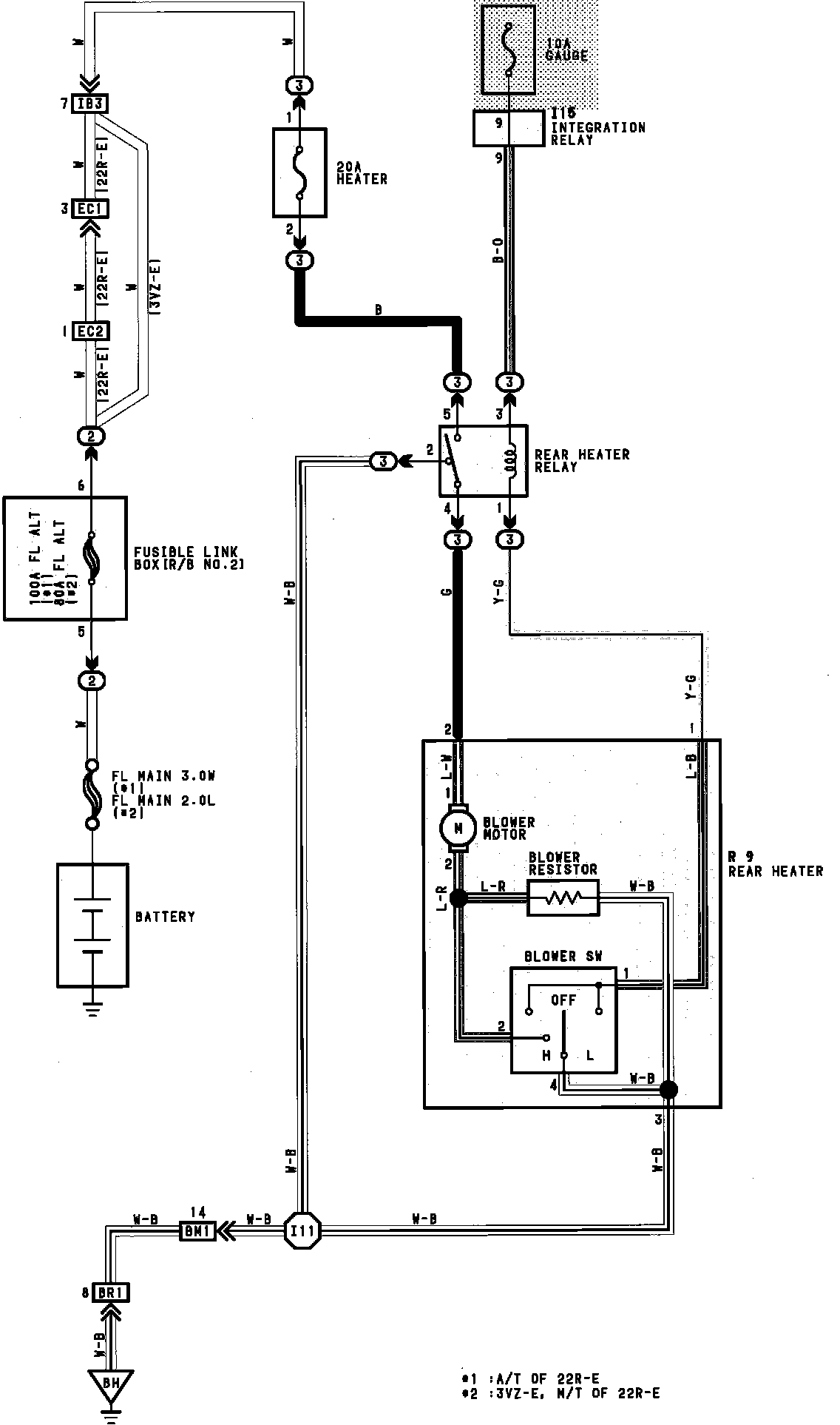

Rear Heater:
Air Conditioning, Front Heater & Cooling Fan (Engine):
Air Conditioning, Front Heater & Cooling Fan (Engine):
