Toyota Truck
>>
1991
>>
4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Points
>>
BH, EA, EB, IE and IF
BH, EA, EB, IE and IF

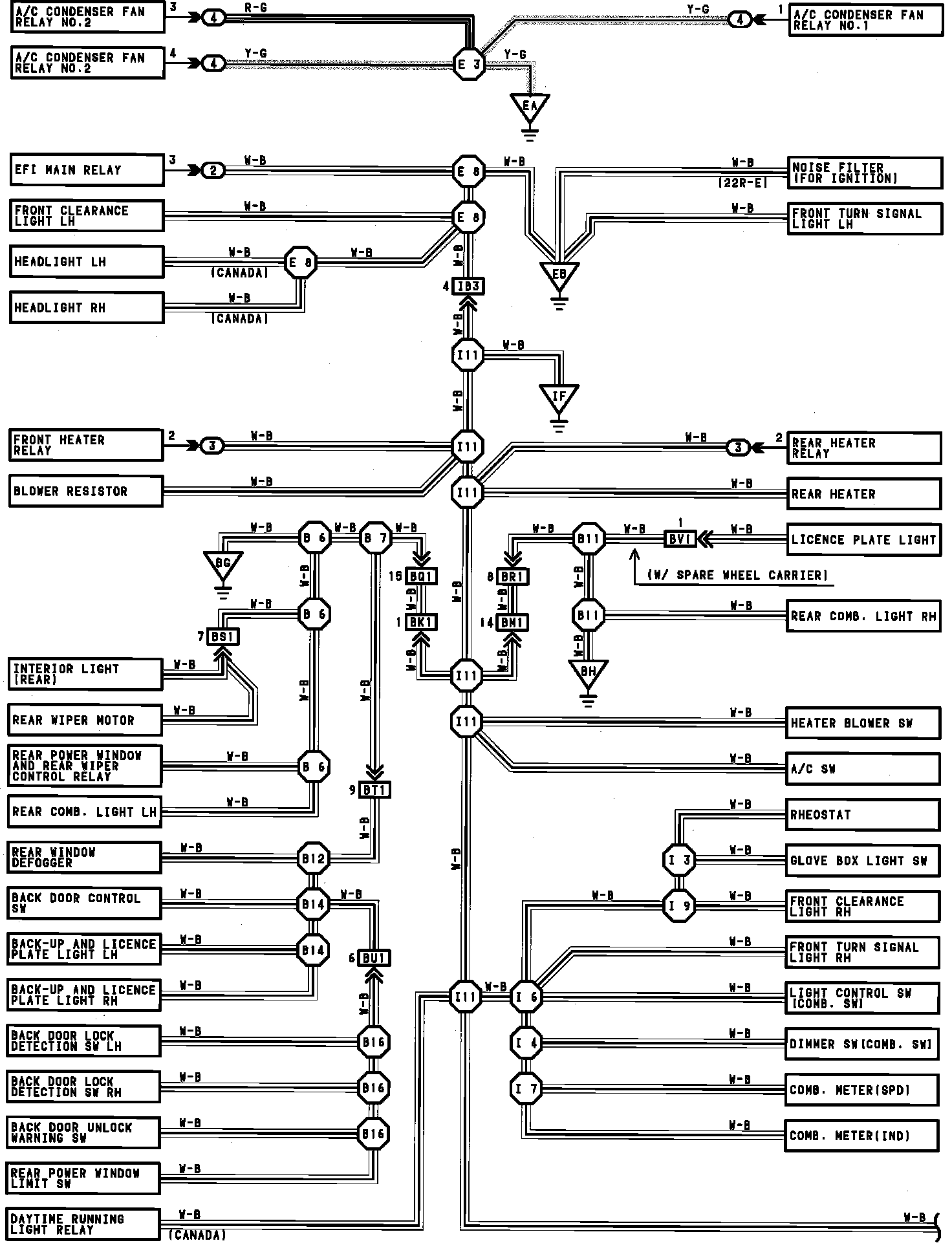

Ground Distribution. BH, EA, EB, IE & IF:

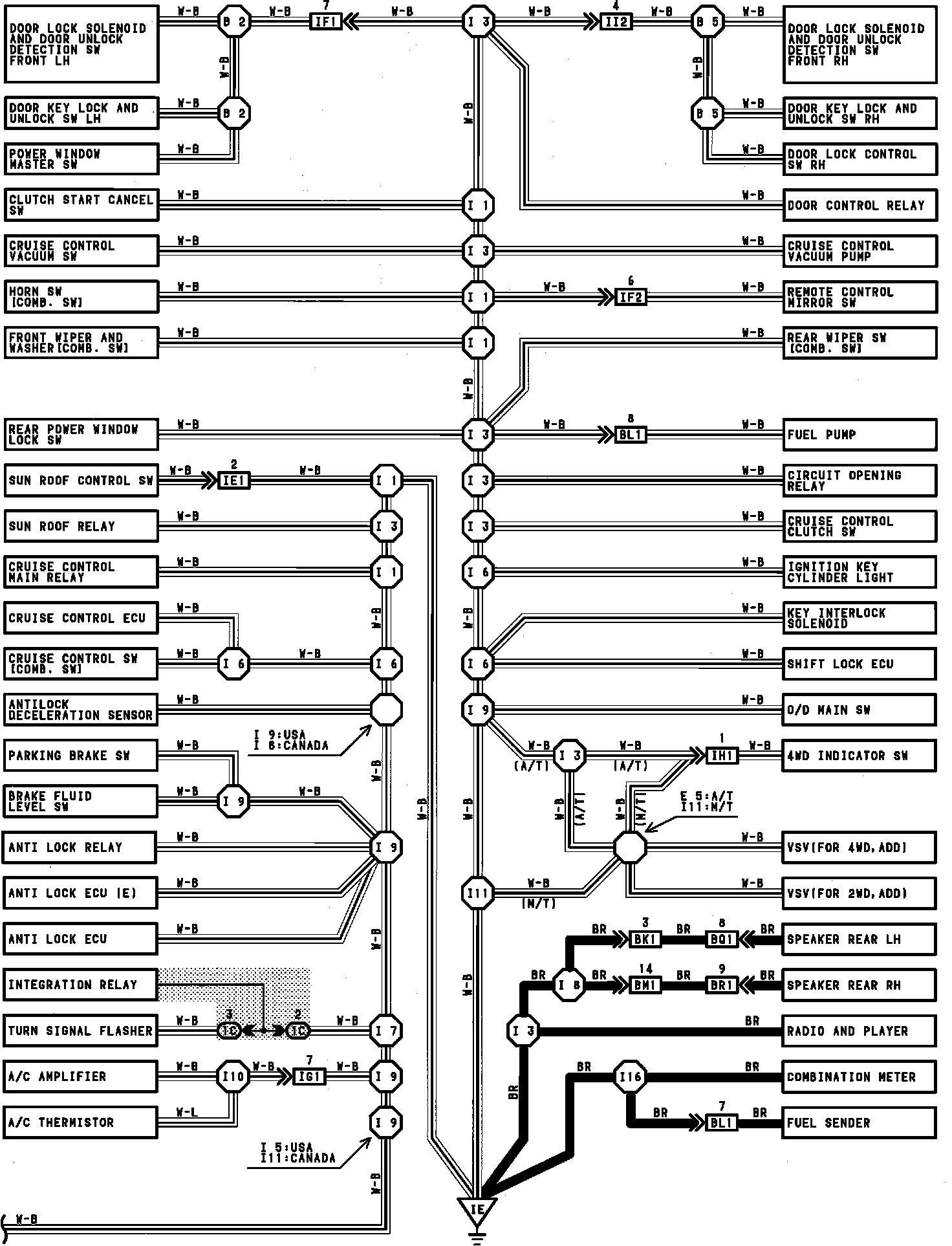

Ground Distribution. BH, EA, EB, IE & IF:
