Chart 10
>>
4WD With Automatic Transmission
4WD With Automatic Transmission

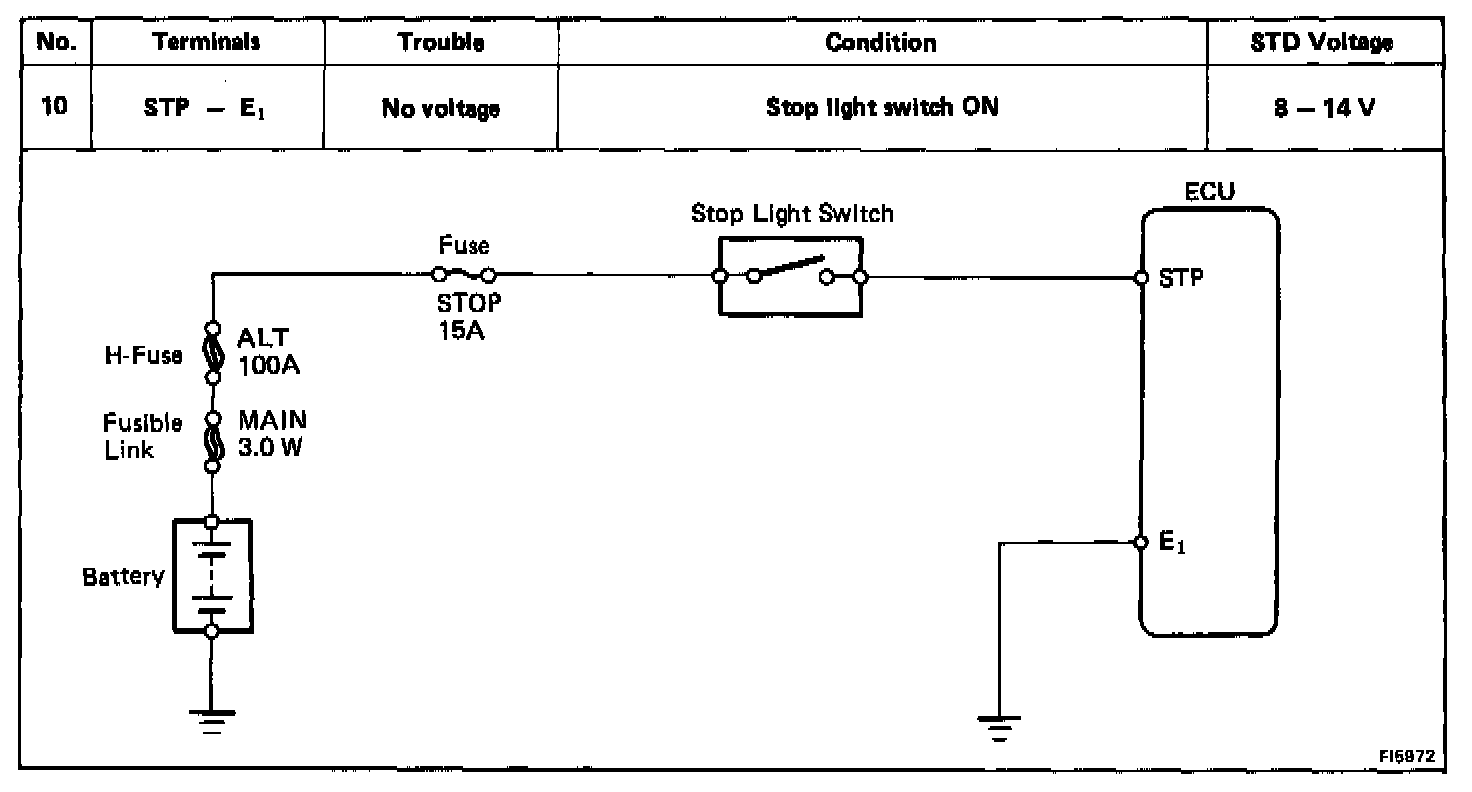

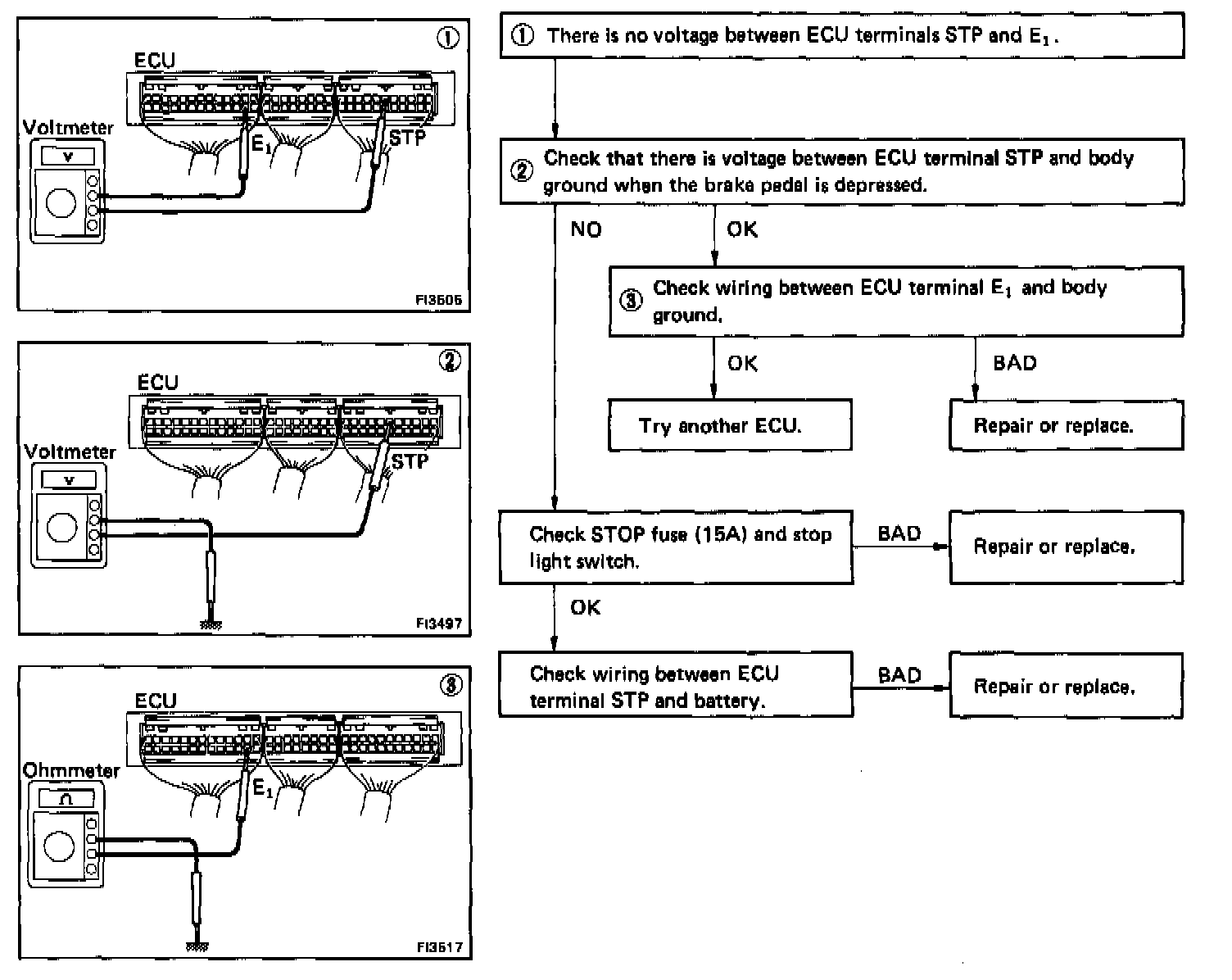

Chart No. 10 - Stop light switch
