Home >> Toyota Truck >> 1991 >> 4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Circuit Test Charts (For Trouble Code Diagnosis) >> Chart 10 >> Except 4WD With Automatic Transmission

Except 4WD With Automatic Transmission

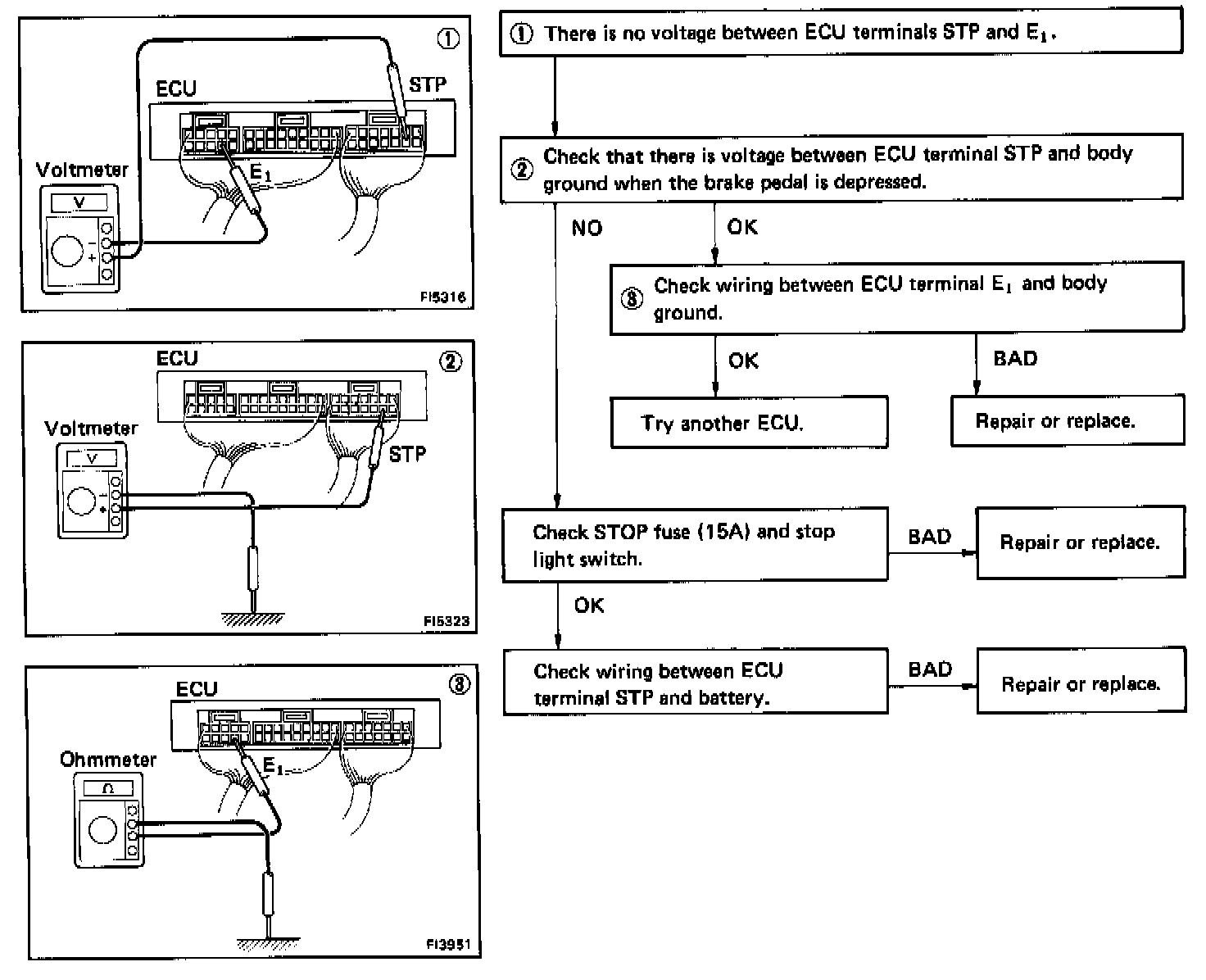

Chart No. 10 - Stop light switch
