Chart 6
>>
Except 4WD With Automatic Transmission
Except 4WD With Automatic Transmission

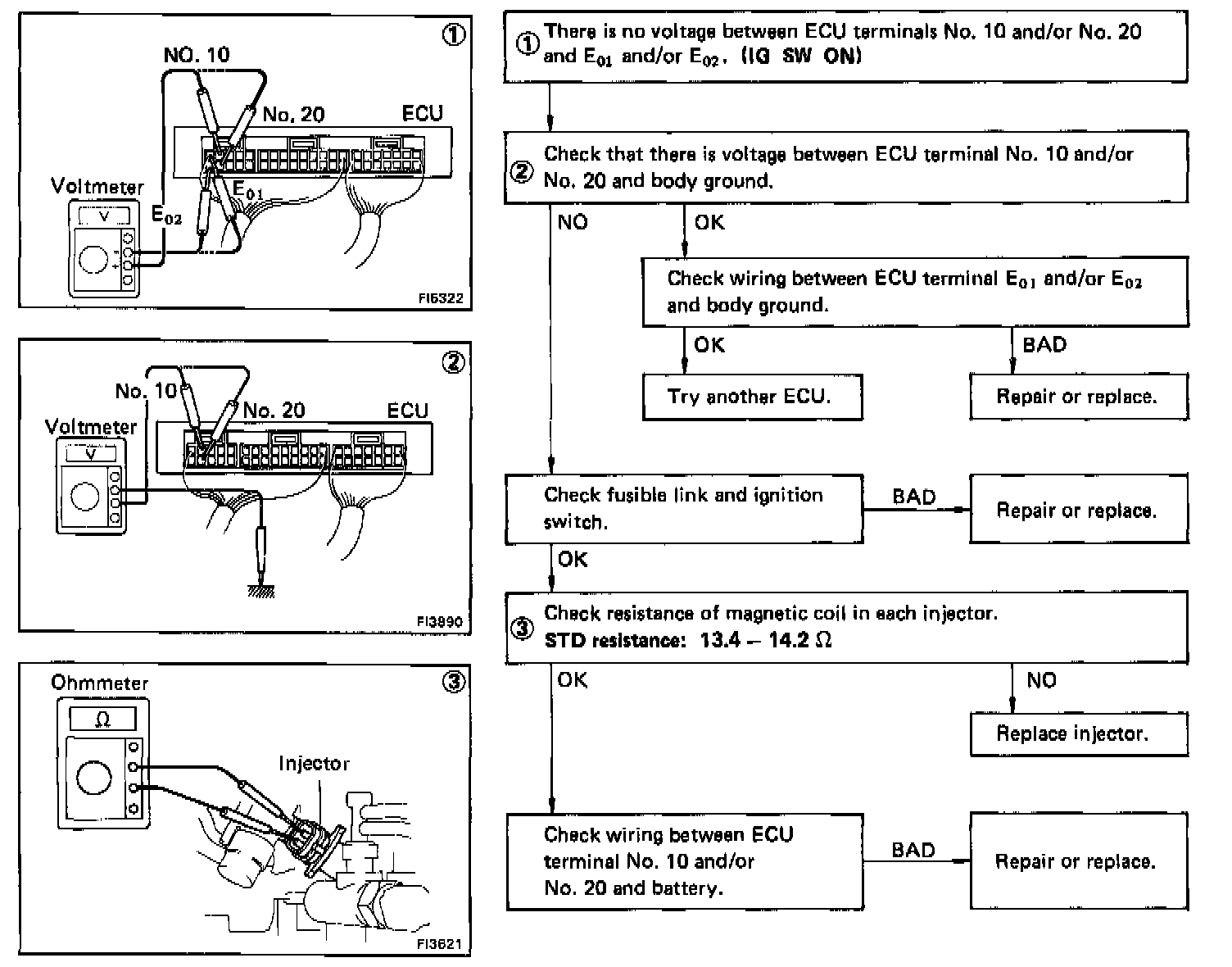

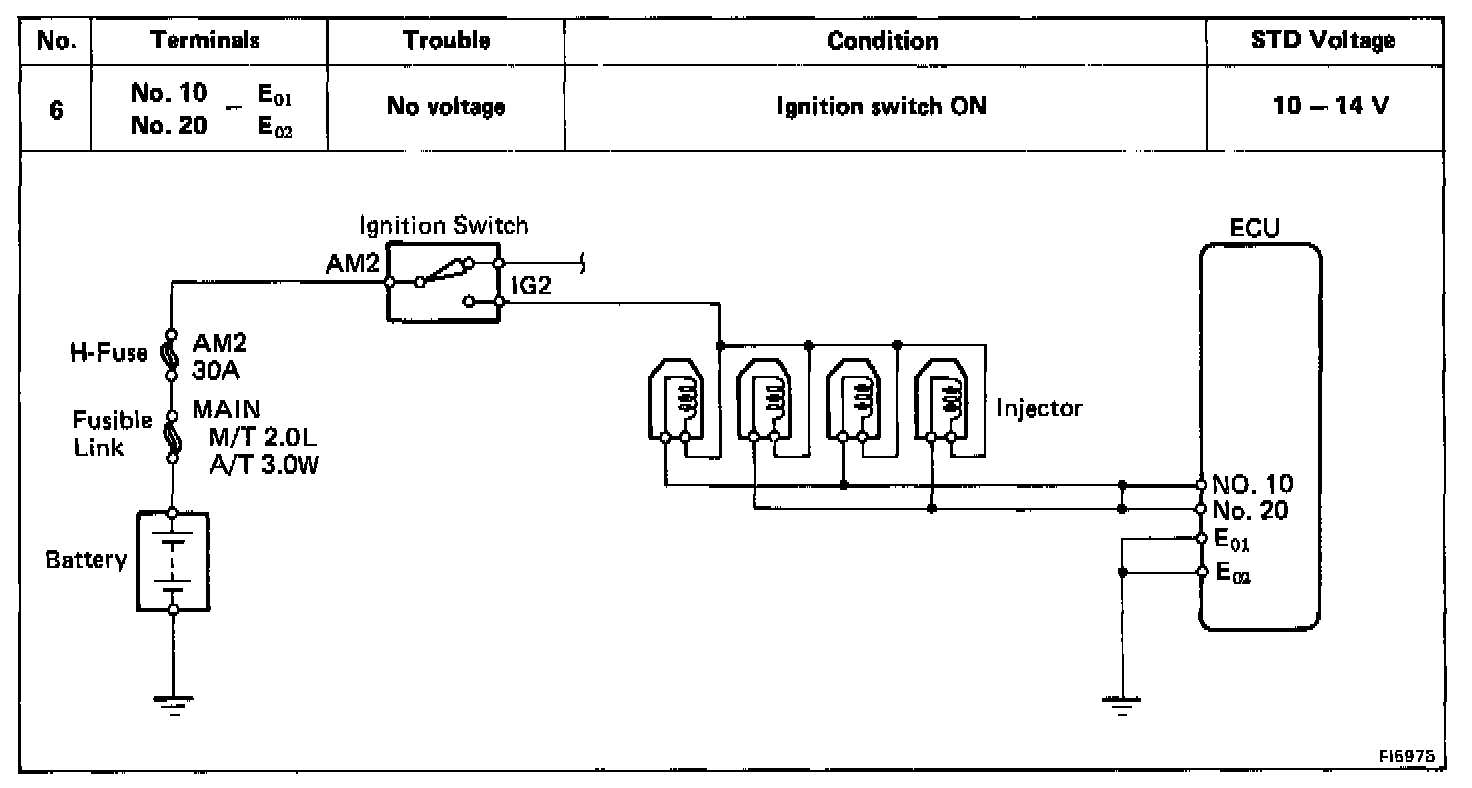

Chart No. 6 - Fuel injectors
