Home >> Toyota Truck >> 1991 >> 4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Circuit Test Charts (For Trouble Code Diagnosis) >> EGR Gas Temperature Sensor >> 4WD With Automatic Transmission

4WD With Automatic Transmission

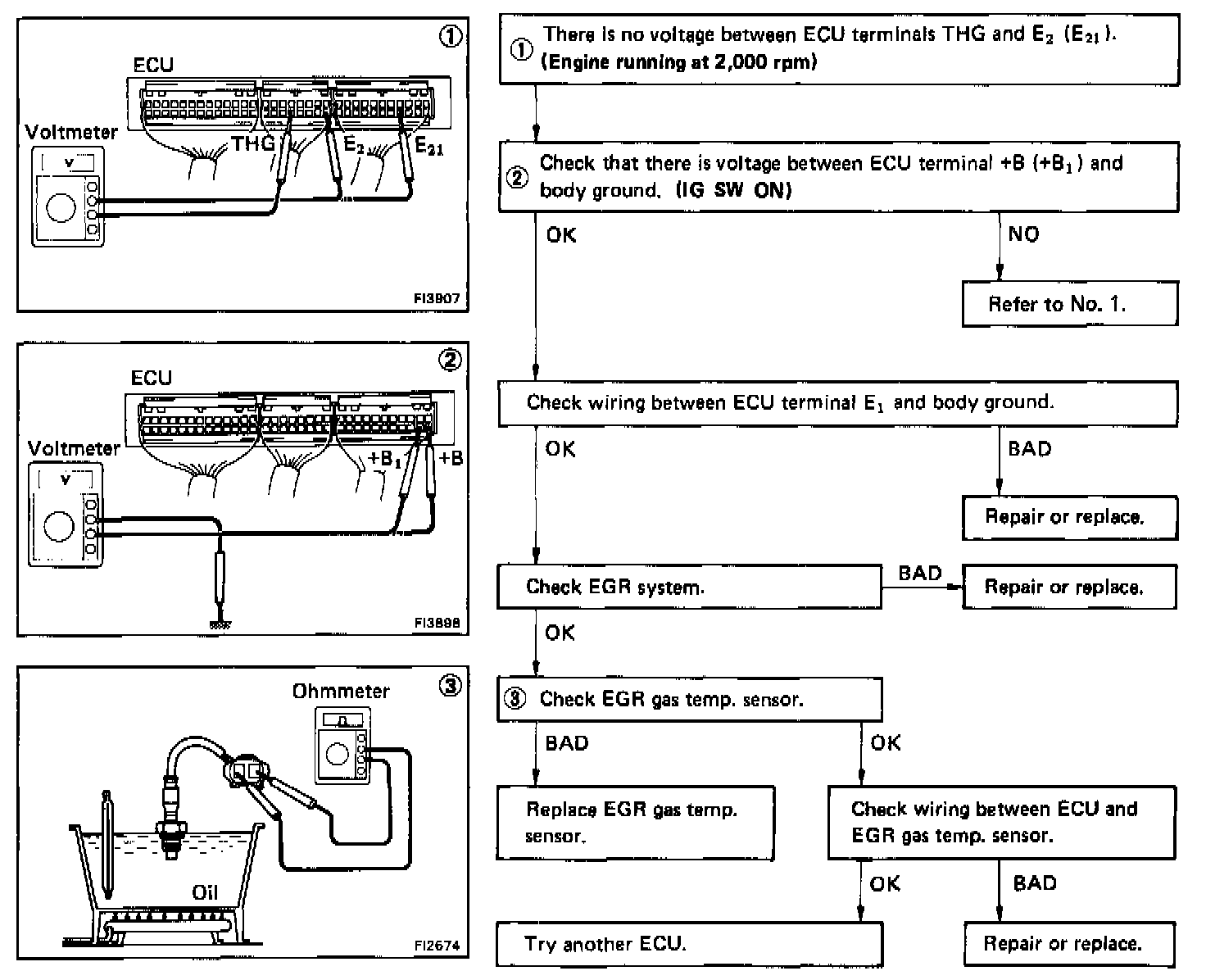

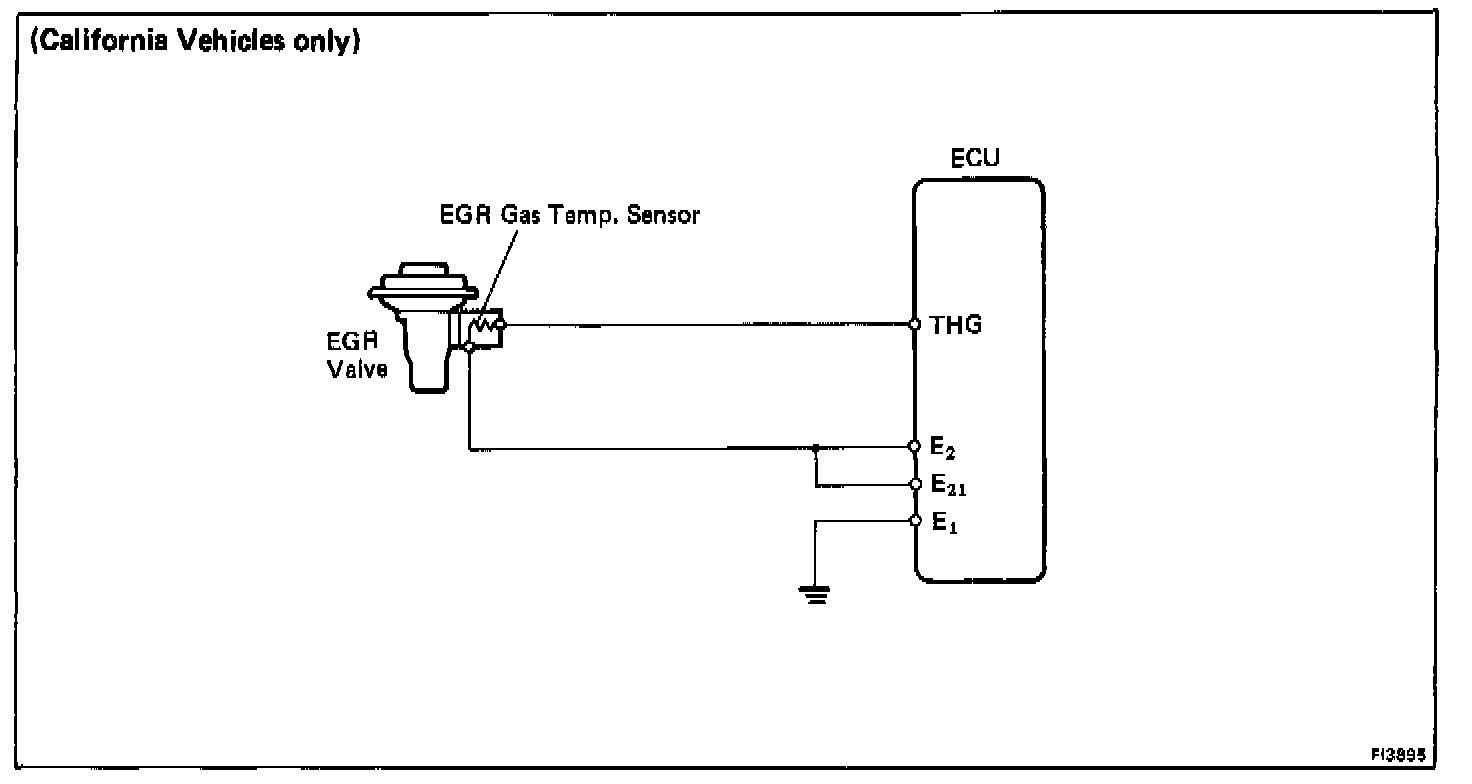

EGR gas temperature sensor
