Home >> Toyota Truck >> 1991 >> 4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Control Module Terminal ID >> 4WD With Automatic Transmission

4WD With Automatic Transmission

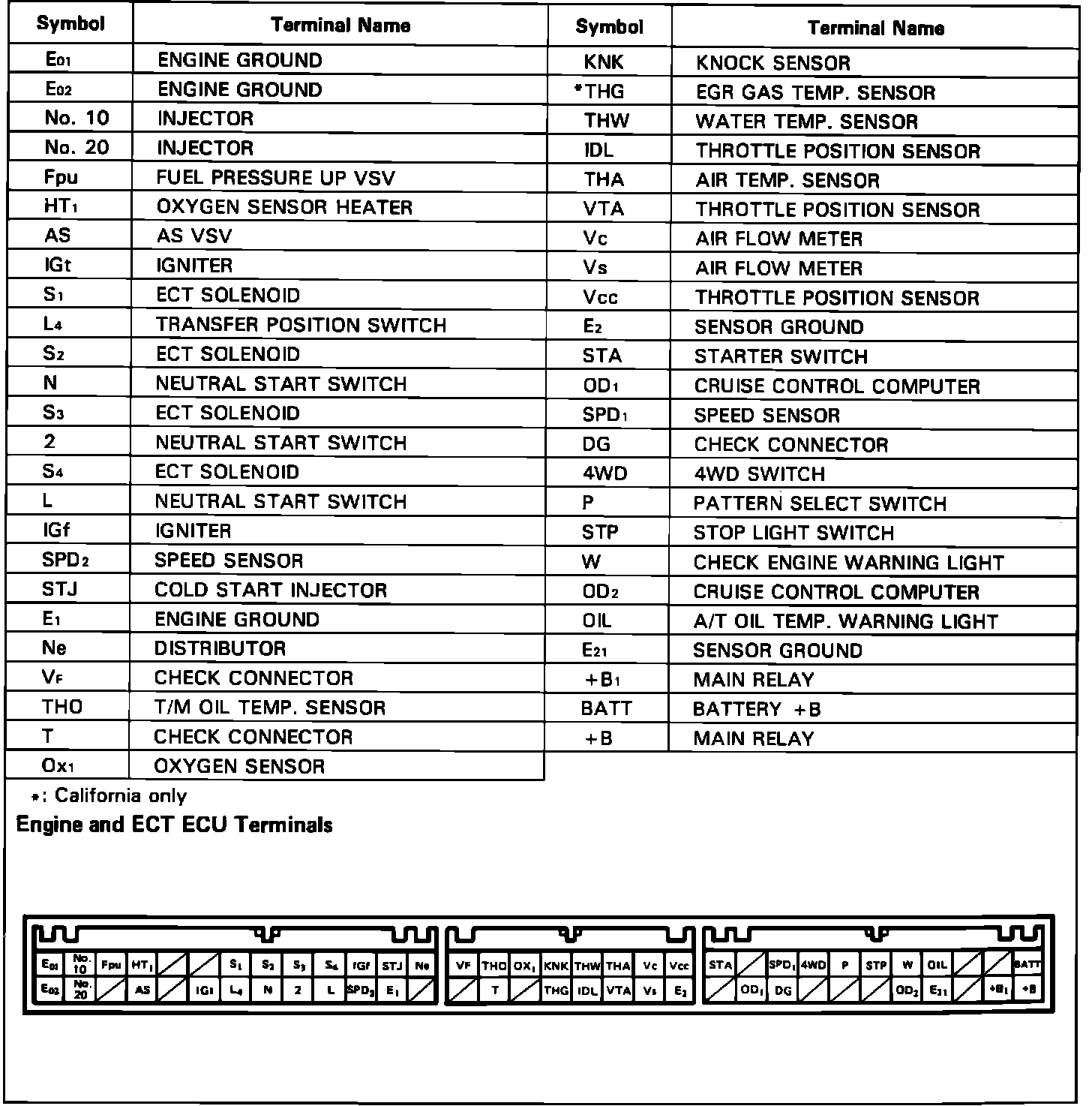

ECU Component Pin-outs:
