Engine Backfires
>>
Muffler Explosion (Backfire) - Rich Air Fuel Mixture - Misfire
Muffler Explosion (Backfire) - Rich Air Fuel Mixture - Misfire

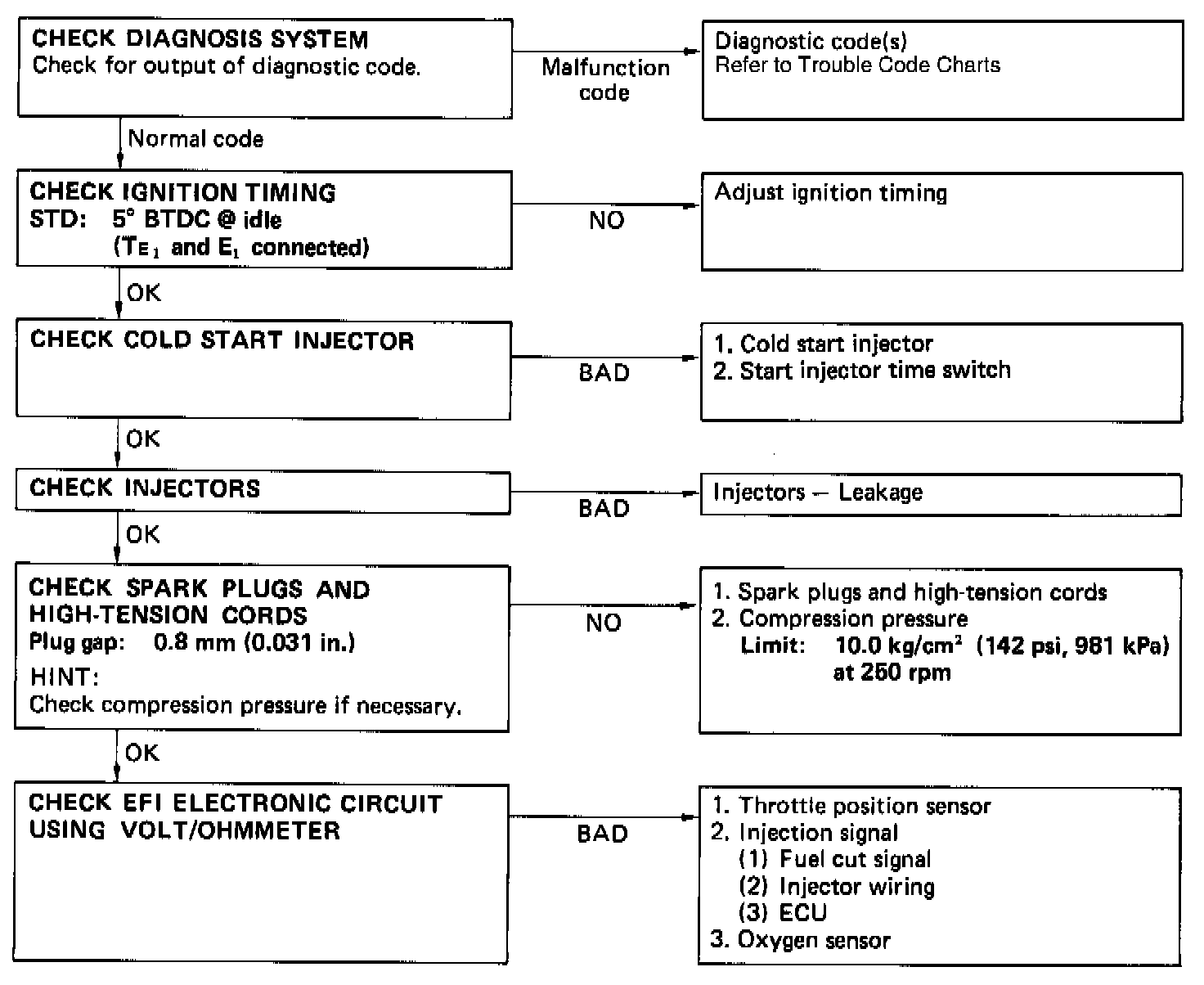

SYMPTOM - MUFFLER EXPLOSION (AFTER FIRE) -Rich Air Fuel Mixture-Misfire
