Air Injection Control Valve: Description and Operation

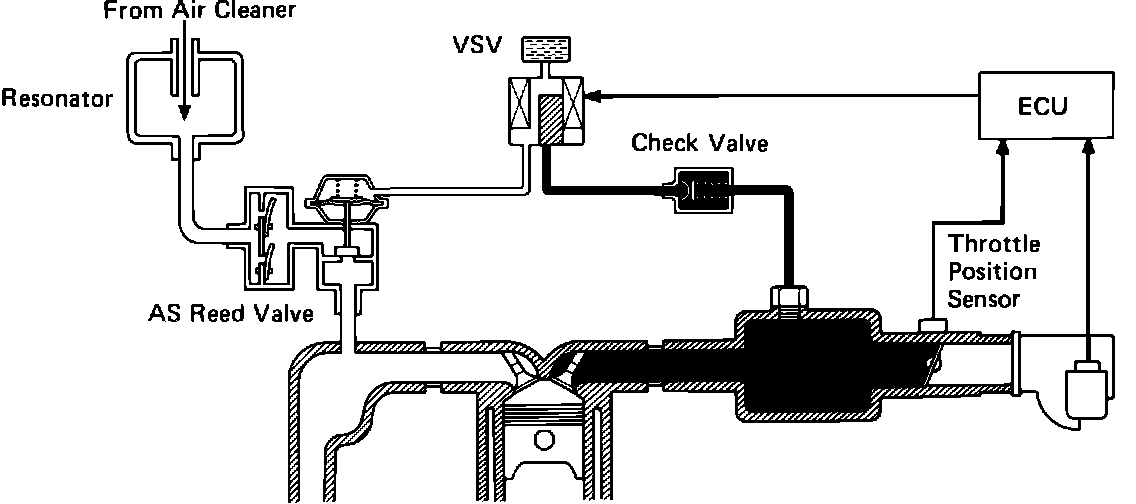

Air Suction System Schematic:

The VSV that controls operation of the air suction system is switched electronically by the ECU. Based on information received from the water temperature sensor and engine rpm, the ECU completes the circuit and opens the VSV. The VSV inputs the ECU through terminal AS.
