Vacuum Check Valve: Testing and Inspection

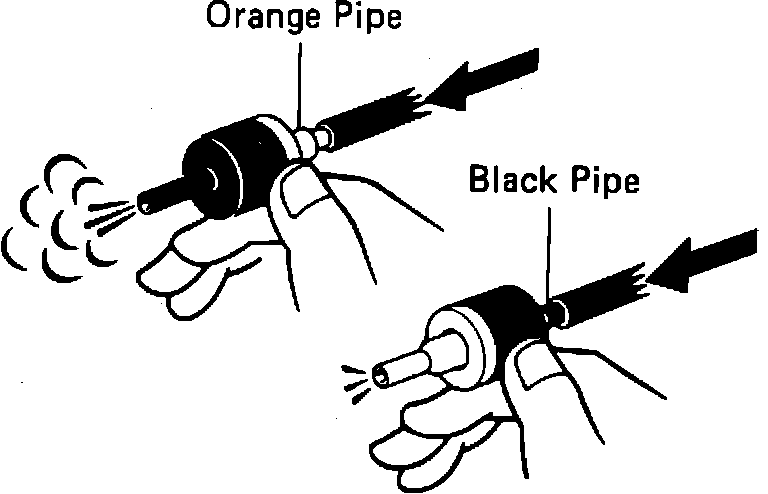

Fig. 27 Testing AS Check Valve:

1. Check that air flows from the orange pipe to the black pipe. Fig. 27
2. Check that air does not flow from the black pipe to the orange pipe.
