Toyota Truck
>>
1991
>>
4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Injector
>>
Testing and Inspection
>>
Circuit Test
Circuit Test

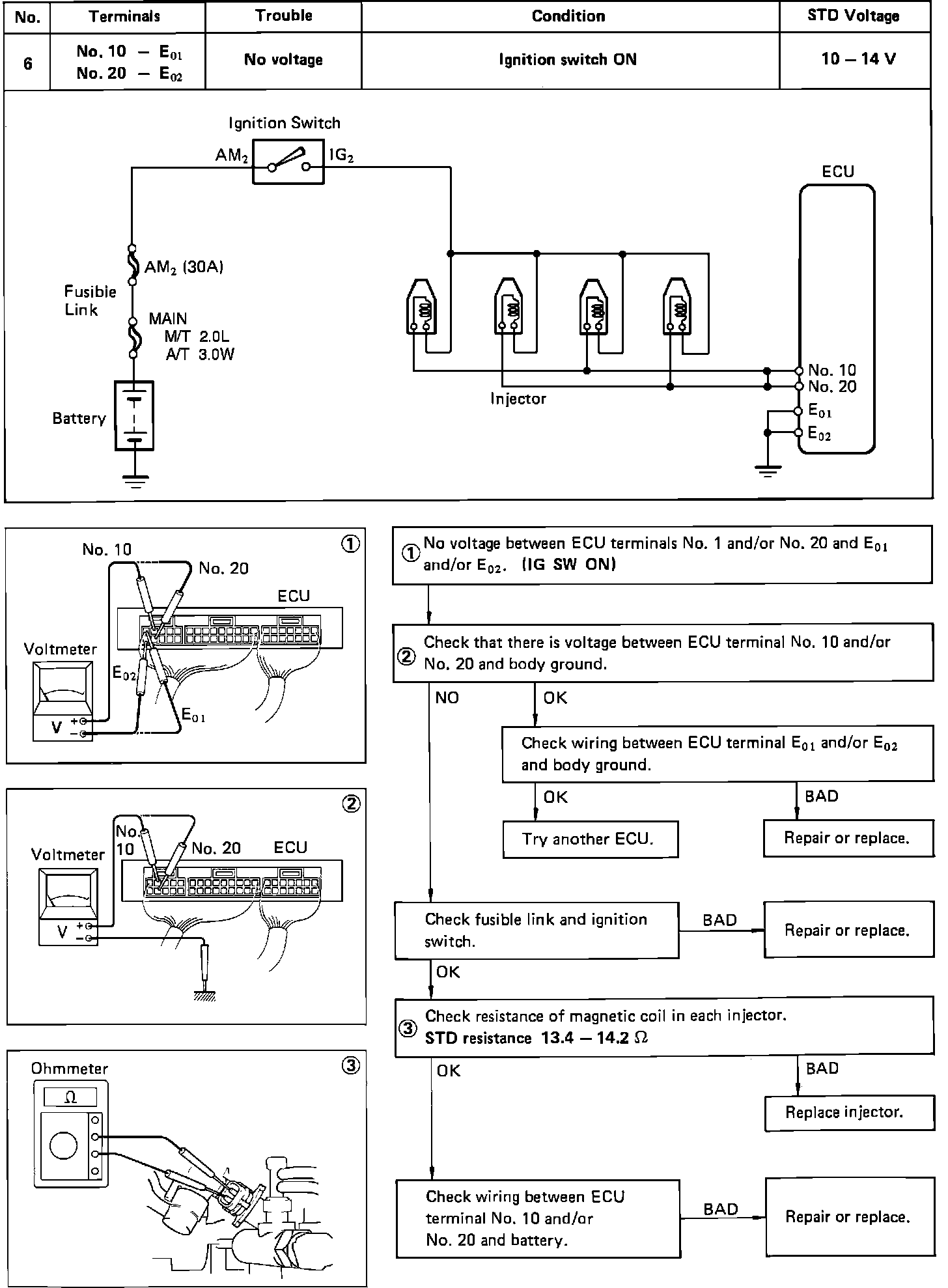

Fuel Injector Circuit Test:
