Diesel Data: Automotive Repair
Home >> Toyota Truck >> 1991 >> 4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Main Relay (Computer/Fuel System) >> Testing and Inspection >> Circuit Test >> Except 4WD A/T

Except 4WD A/T

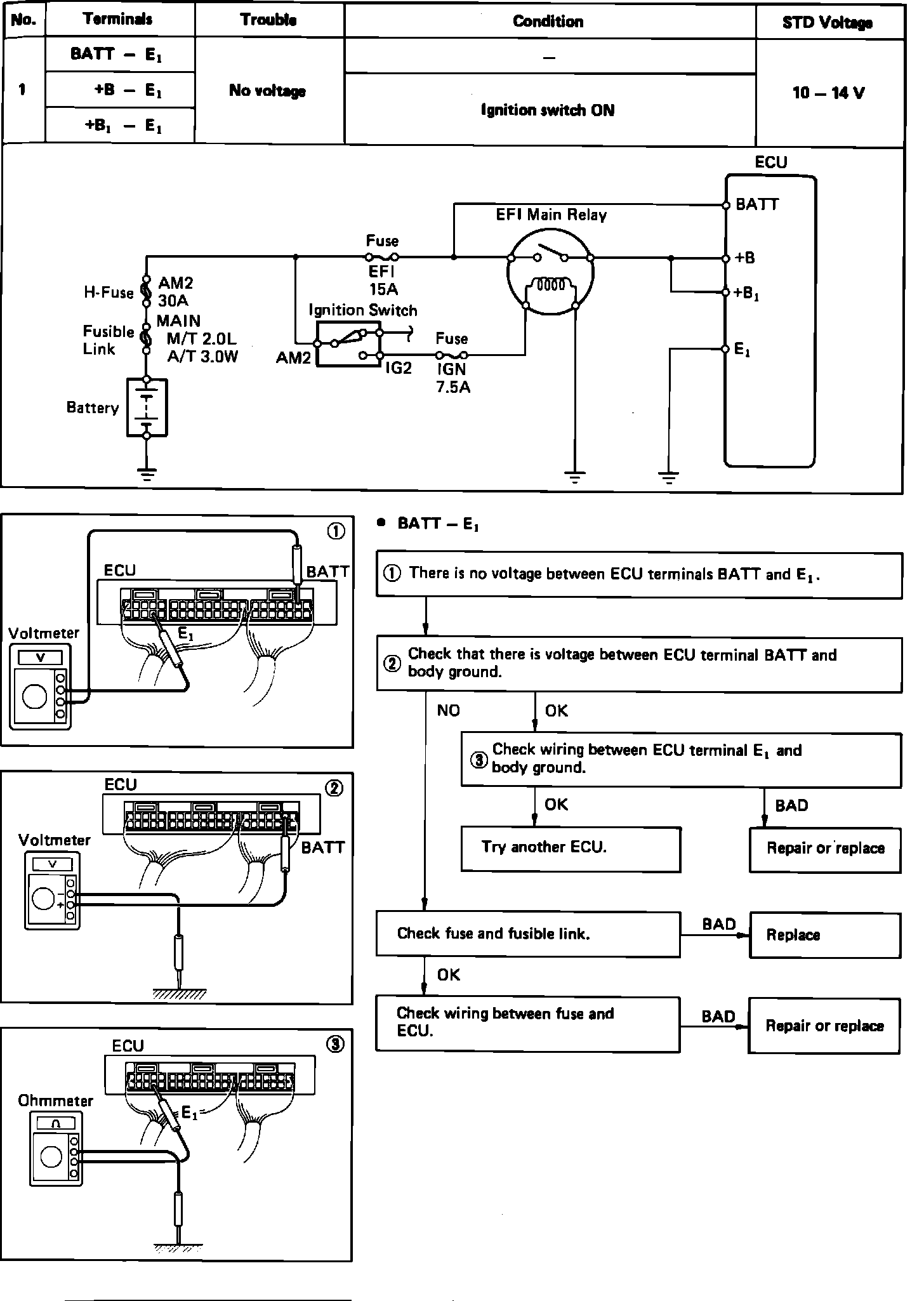

�0:EFI Main Relay Circuit Test:
