Transmission Temperature Sensor/Switch: Testing and Inspection

INSPECT TRANSMISSION FLUID TEMPERATURE SENSOR

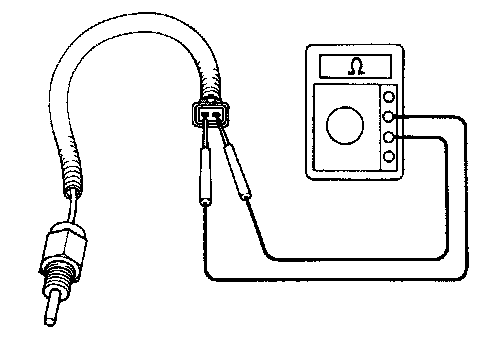

Measure the resistance between terminals.

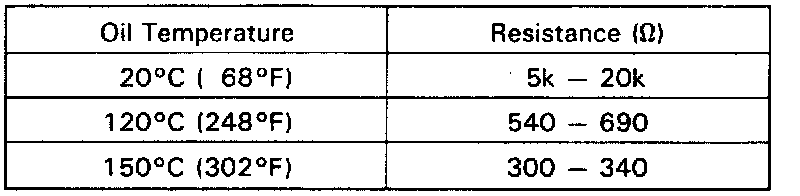

If resistance is not as specified, replace the sensor.
