Blower Motor Switch: Service and Repair

BLOWER SPEED CONTROL SWITCH REMOVAL

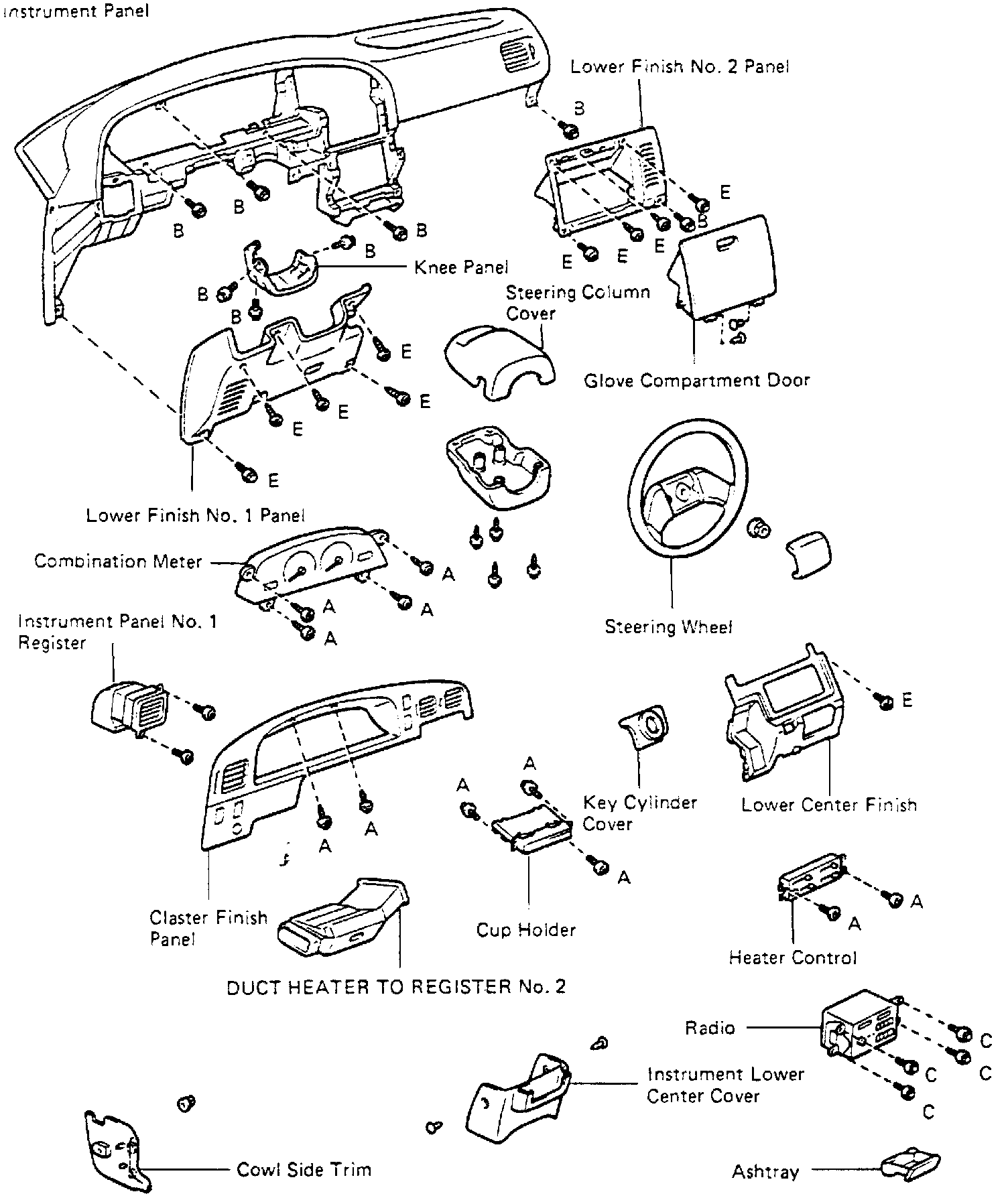

Fig. 6 Exploded View Of Instrument Panel & Components (Part 1 Of 2).:

1. Remove heater control plate.
A. Pull off the heater control knobs.
B. With A/C: Pry off the A/C switch.

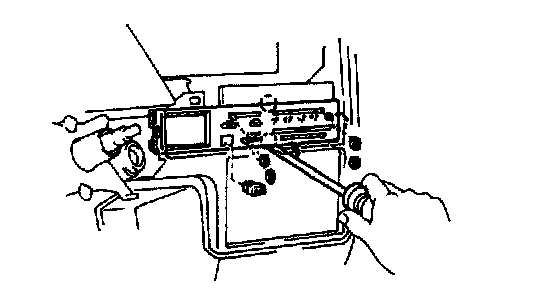

C. Using a screwdriver, pry out the heater control plate.
HINT: Tape the screwdriver tip before use.
D. With Clock: Disconnect the connector.
2. Remove the 2 screws and hang the heater control unit.
3. Remove the illumination light from the A/C control assembly.
4. Using a screwdriver, pry loose the clip and push out the blower speed control switch to the rear of the A/C control.

Reverse procedure to reinstall.
