Diesel Data
: Automotive Repair
Home
>>
Toyota Truck
>>
1991
>>
4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Points
>>
EC, ED and IE
EC, ED and IE

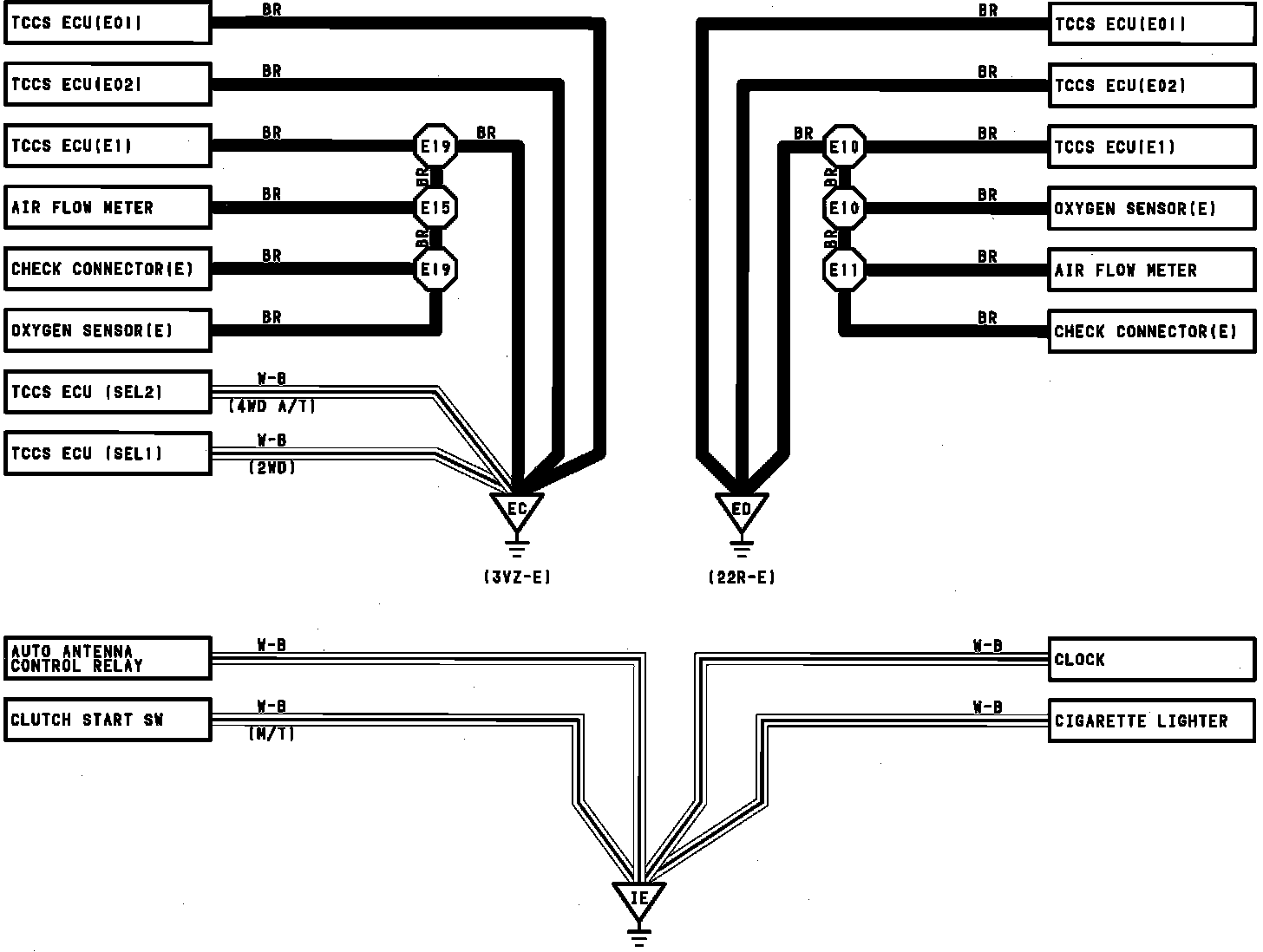

Ground Distribution. EC, ED & IE:
