Toyota Truck
>>
1991
>>
4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Steering Column
>>
Service and Repair
>>
With Tilt Column
With Tilt Column

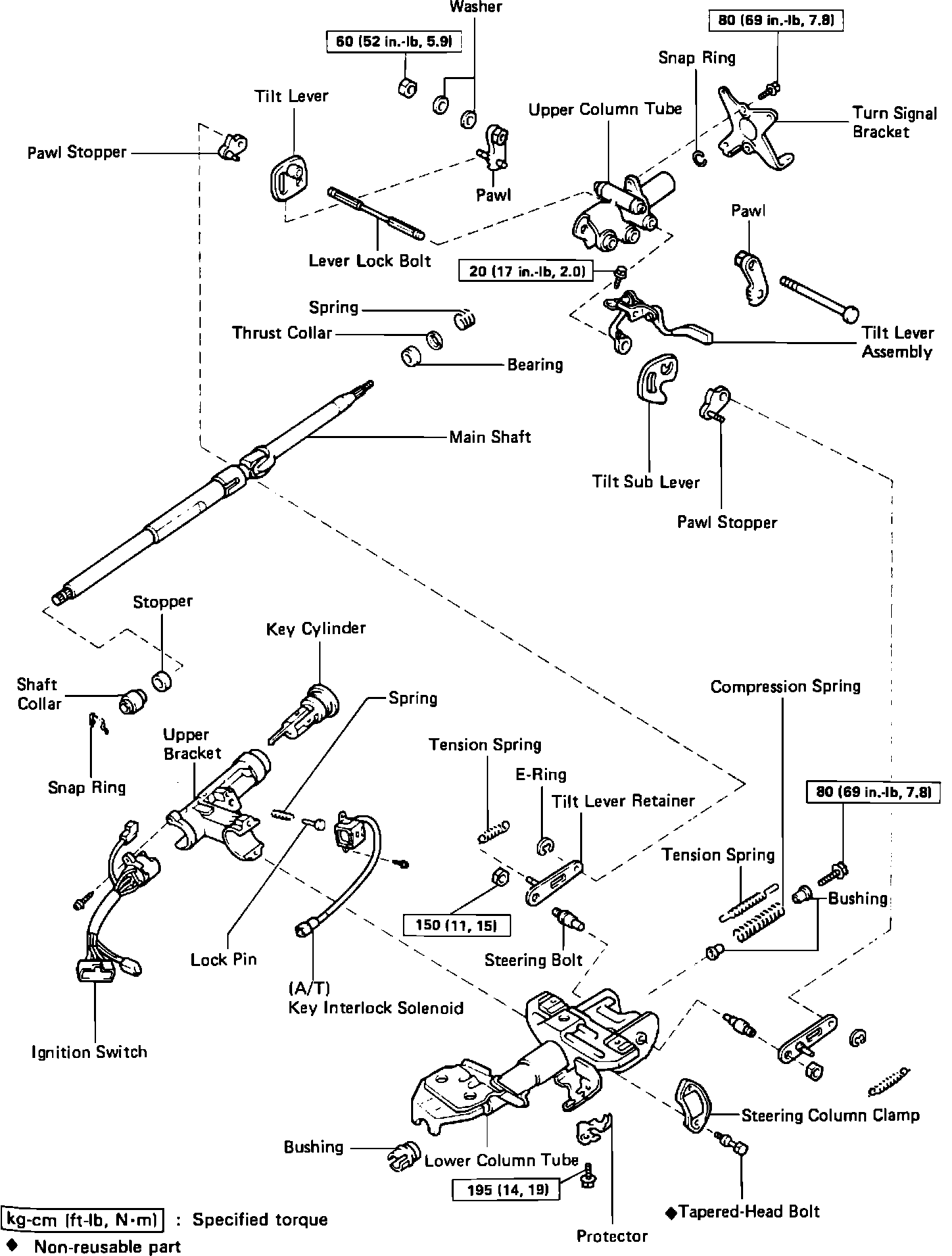

Fig. 26 Exploded View Of Steering Column. 1989-91 Pickup & 1990-91 4Runner w/Tilt Column:
