With Progressive Power Steering (PPS) System

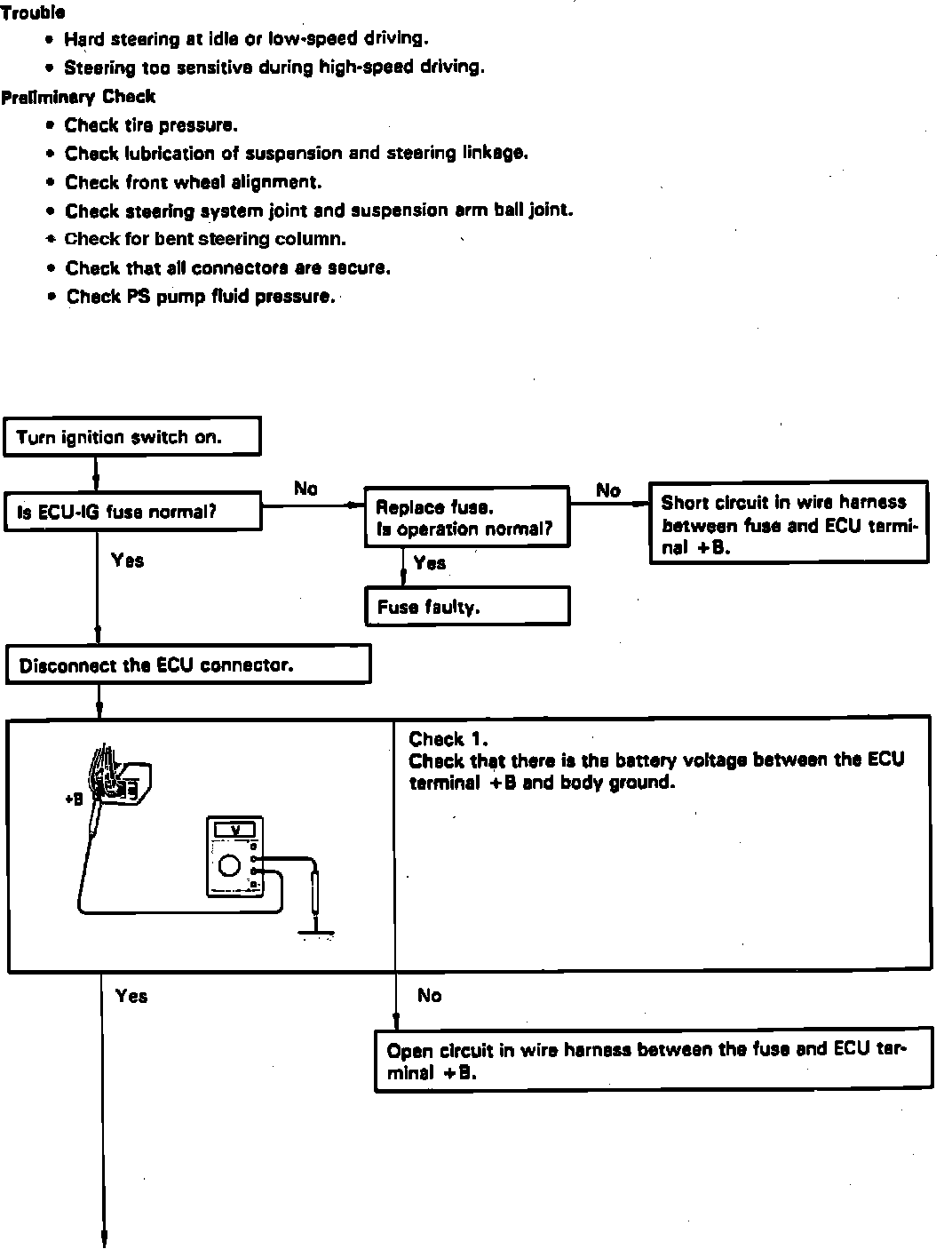

Fig. 34 PPS Troubleshooting (Part 1 Of 3):

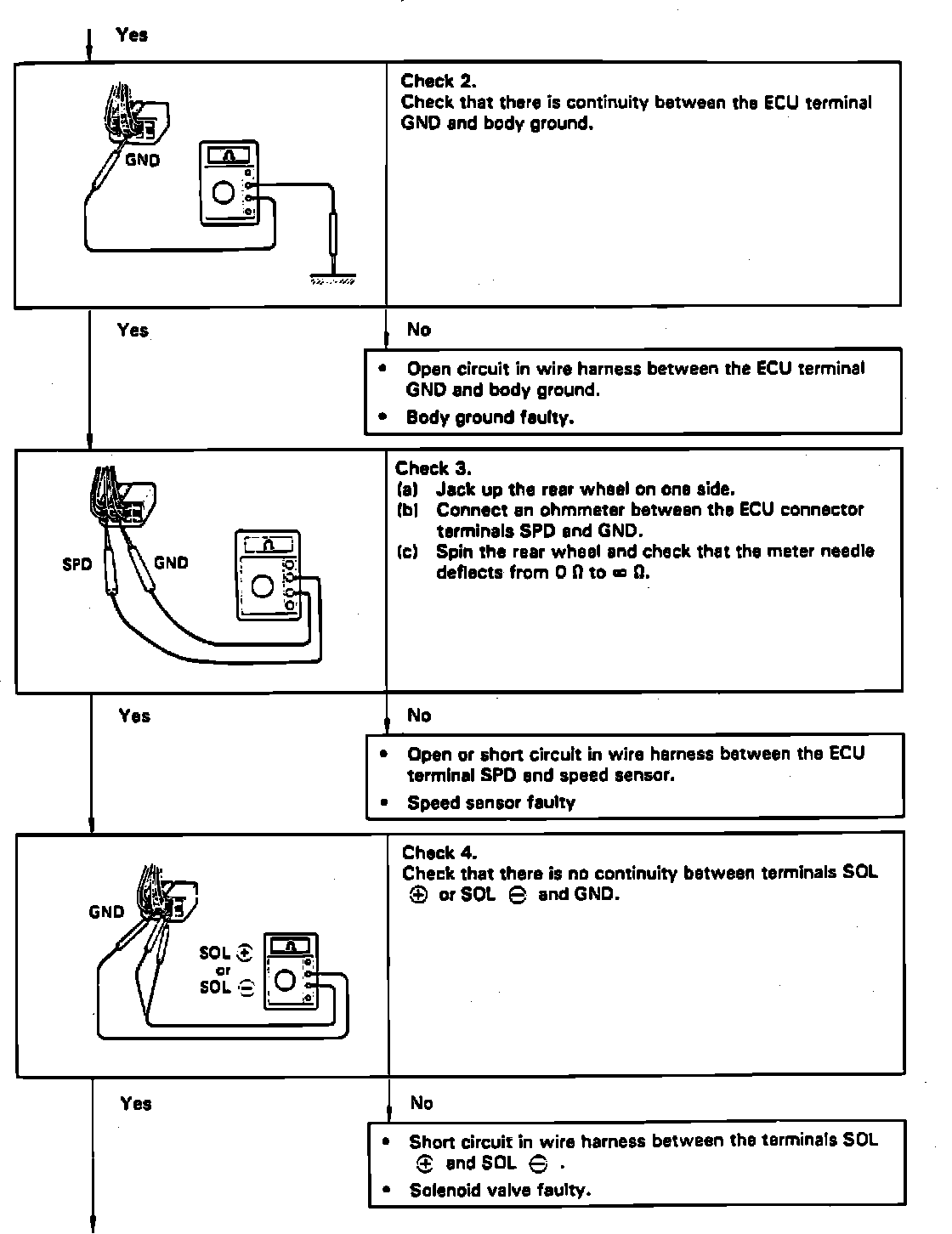

Fig. 34 PPS Troubleshooting (Part 2 Of 3):

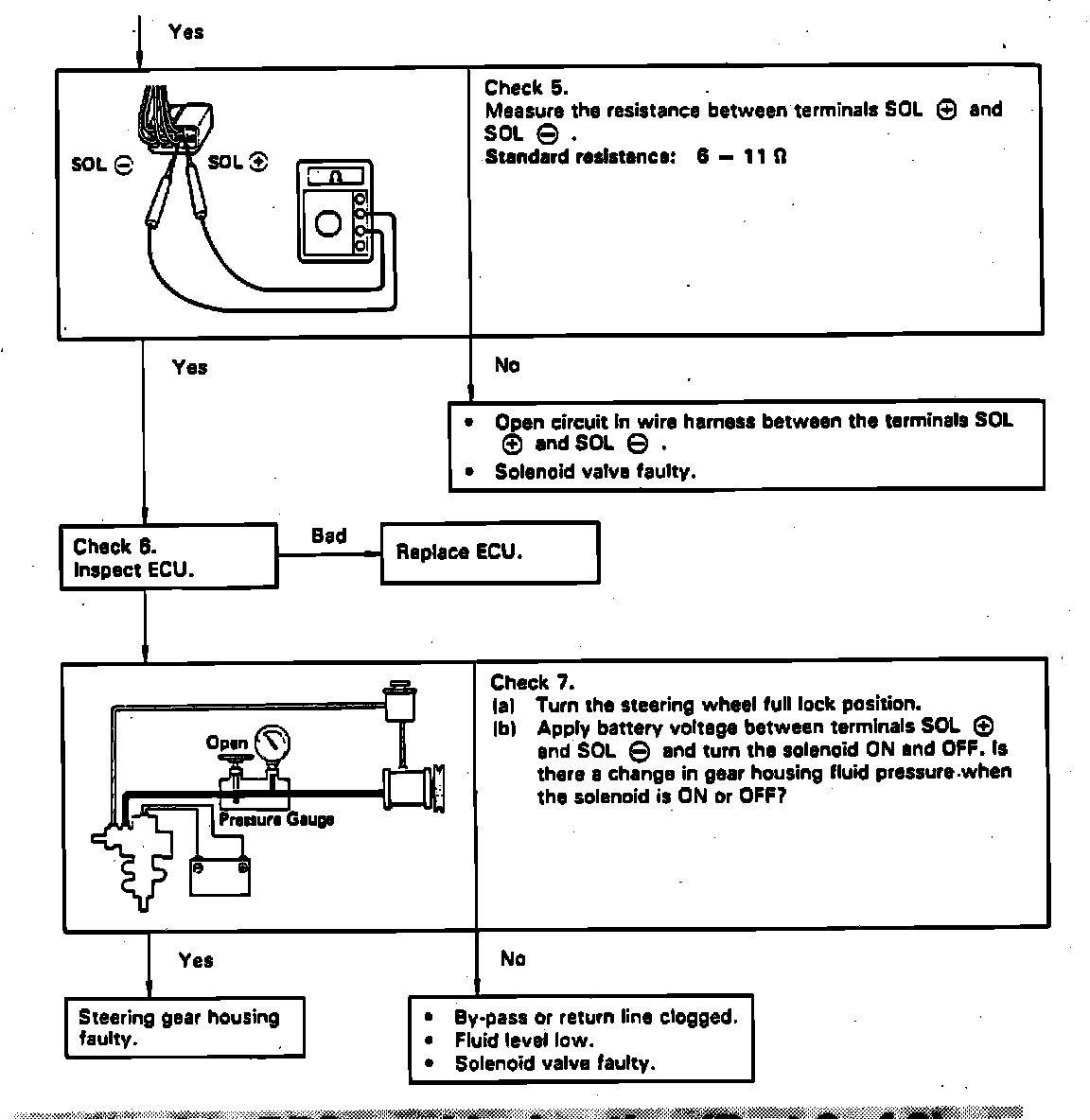

Fig. 34 PPS Troubleshooting (Part 3 Of 3):

Refer to Fig. 34, for troubleshooting PPS system.
