Repair Manual Corrections - Ball Joint Specifications

REF:
PRODUCT GENERAL INFORMATION

NO.:
PI92-008


DATE:
OCTOBER 30, 1992


MODEL:
VN/RN



1989 - 1992 TRUCK & 4RUNNER REPAIR MANUAL CORRECTIONS

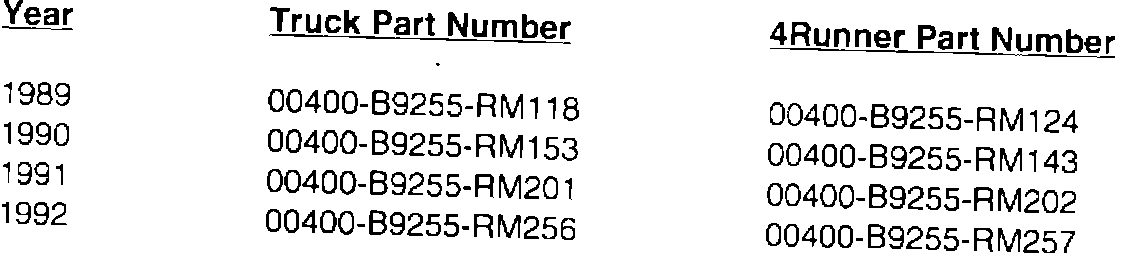

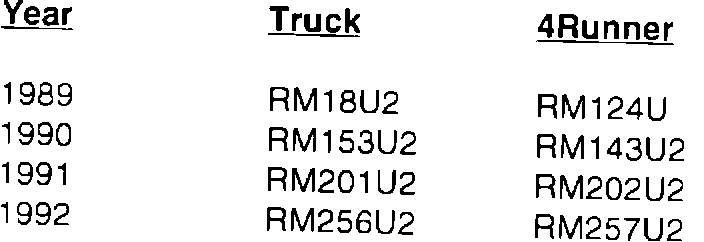

Listed are corrections for the 1989 - 1992 Truck & 4Runner Repair Manuals. Actual Truck & 4Runner Repair Manual corrections are attached as paste-in pages for Toyota dealers. See illustration for the Repair Manual -- Publication numbers.






Additional Truck & 4Runner Repair Manual corrections are available through the Dealer Support Material Network (MDC NPM system) by ordering the part numbers.

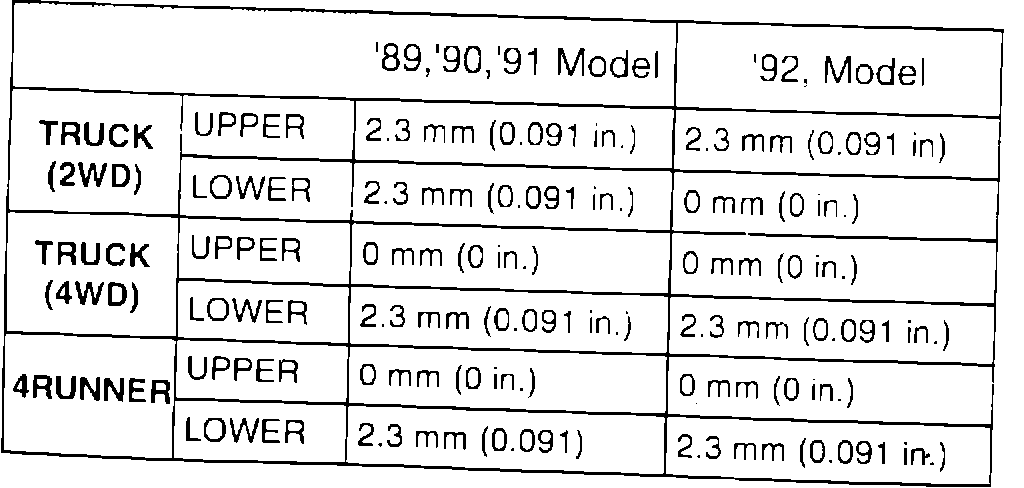

CORRECTED UPPER AND LOWER BALL JOINT SPECIFICATIONS.
