With A340E Automatic Transmission

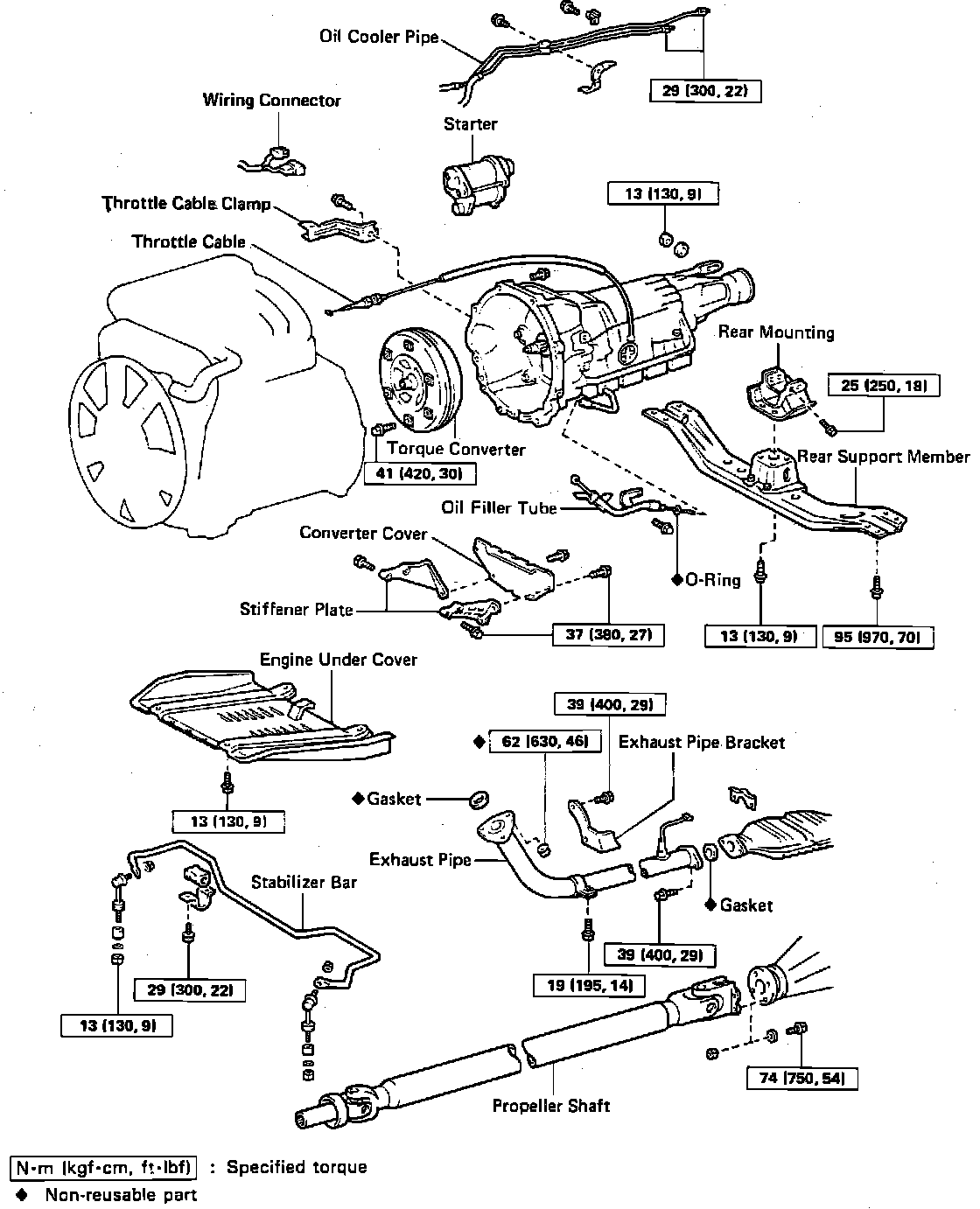

Fig. 8 Transmission Replacement.:

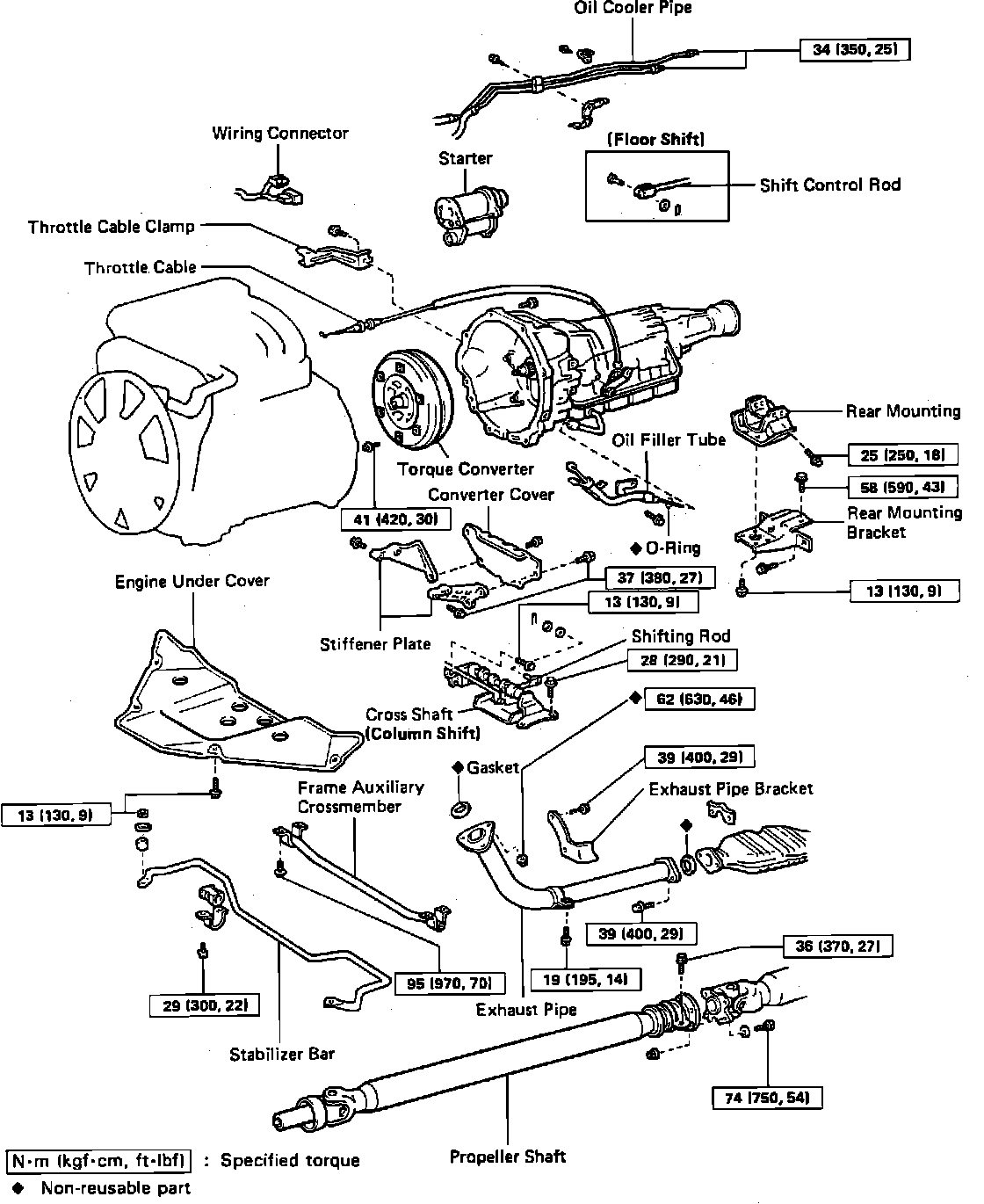

Fig. 9 Transmission Replacement.:

On Pickup models, refer to Fig. 8, for transmission replacement. On 4Runner models, refer to Fig. 9, for transmission replacement.
