A/T - A340H Slip/Chatter On Acceleration
TECHNICAL BULLETIN # 130TRANSMISSION: A-340H
SUBJECT: Slip/Chatter on Acceleration
APPLICATION: Toyota
DATE: Sept. 92
Toyota A-340H-Slip/Chatter On Acceleration
Vehicles equipped with an A-340H (4x4) transmission may exhibit a slip or chatter on acceleration only when the transfer case is in either the 2 high or 4 high positions.
The cause may be a leaking or damaged direct clutch in the transfer case.

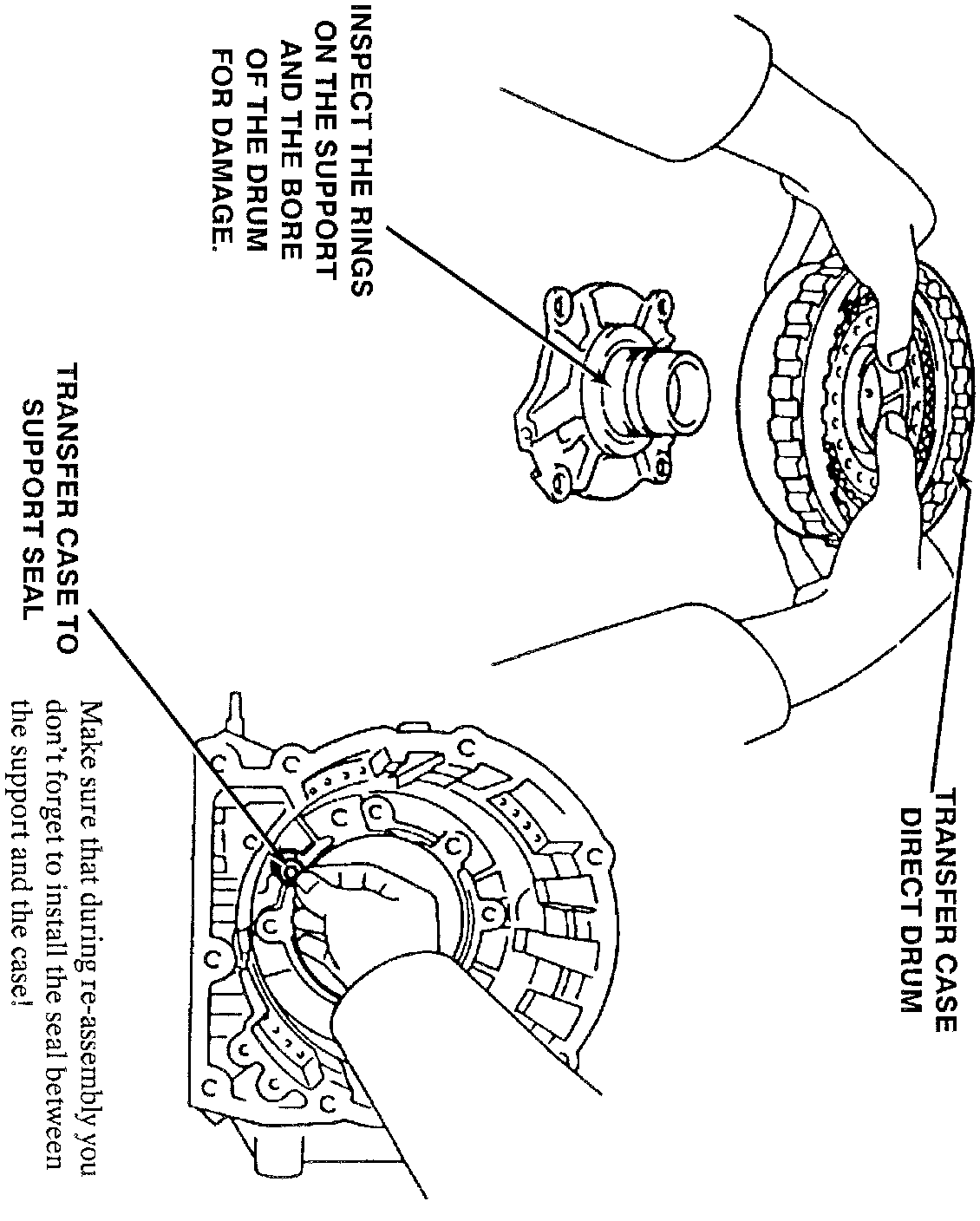

Inspect the clutch drum for ring grooves, cracks, etc. Also, look for damaged rings on the support.
