A/T - Transfer Direct Clutch (C3) 'O' Ring Modification

91toyota03

REF: TRANSMISSION & CLUTCH


No.: TM91-010


DATE: MAY 10, 1991


MODEL: VN, RN, 4RUNNER
w/ A340H


TRANSFER DIRECT CLUTCH (C3) "O" RING

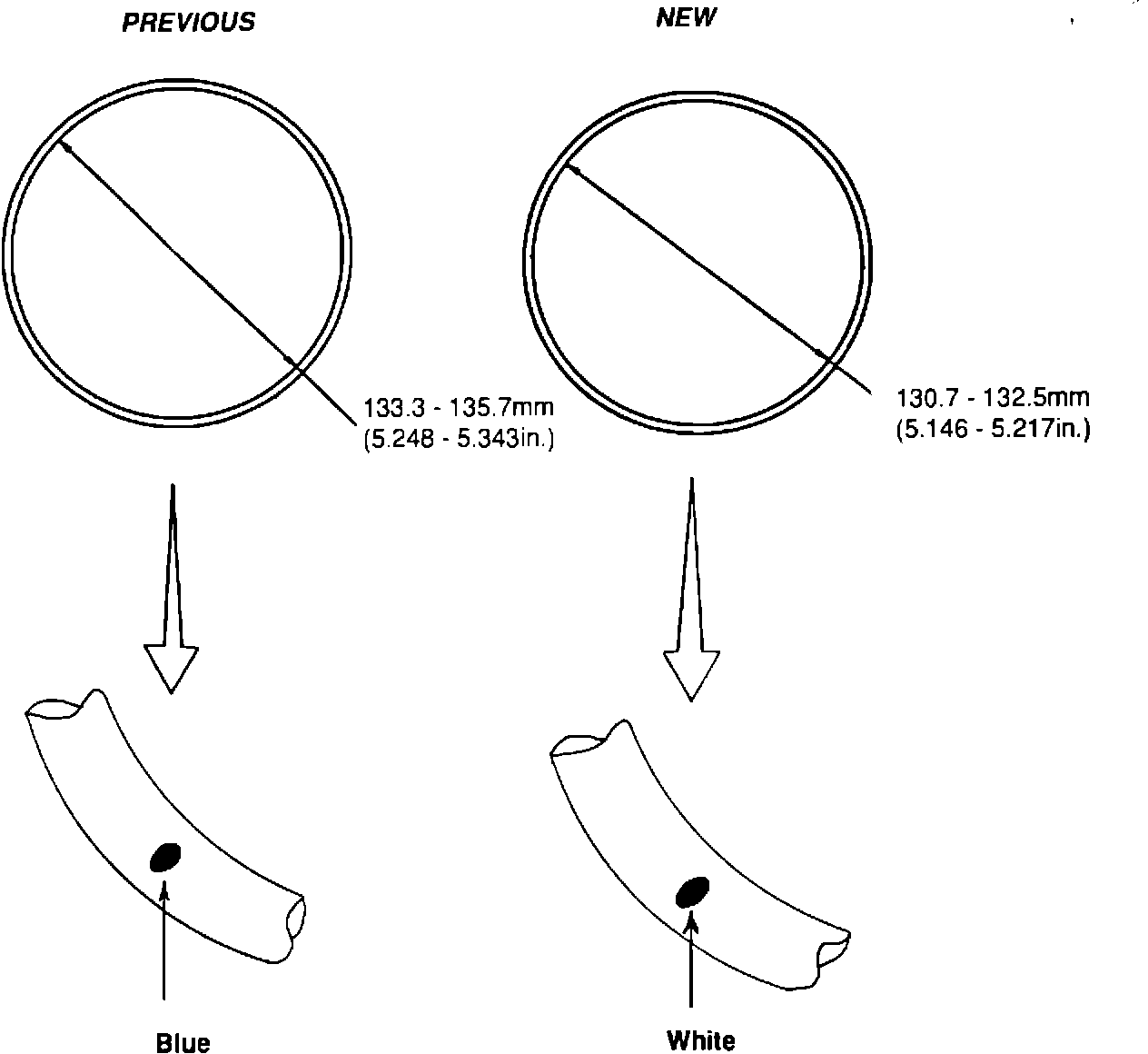

To prevent the Transfer Direct Clutch (C3) "O" ring from twisting during the installation of the transfer direct clutch piston, the "O" ring has been modified as shown.


PRODUCTION EFFECTIVE:

From VIN

JT4VN02 * # L2001556 5/90

JT4VN13 * # L5030636 5/90

JT3VN39 * # L9005930 5/90

JT3VN39 * # L0042034 5/90

JT3VN39 * # L8005745 5/90


PART NUMBER INFORMATION:

Prev. Part No. New Part No. Part Name

90301-99041 *90301-99075 Ring, "O"

* New Part is interchangeable with previous part
