Clutch Disc: Testing and Inspection

1. INSPECT CLUTCH DISC FOR WEAR OR DAMAGE

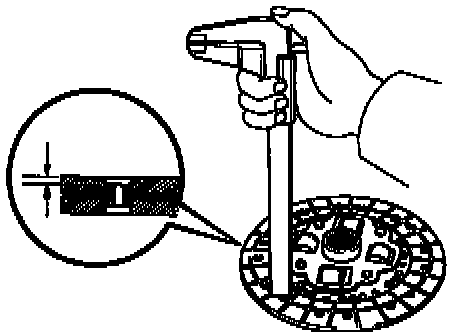

Using calipers, measure the rivet head depth.

Minimum rivet depth: 0.3 mm (0.012 in.)

If a problem is found, repair or replace the clutch disc.






2. INSPECT CLUTCH DISC RUN OUT

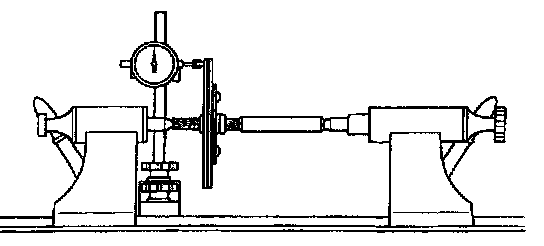

Using a dial indicator, check the disc runout.

Maximum runout: 0.8 mm (0.031 in.)

If runout is excessive, replace the disc.
