Disassembly
Disassembly

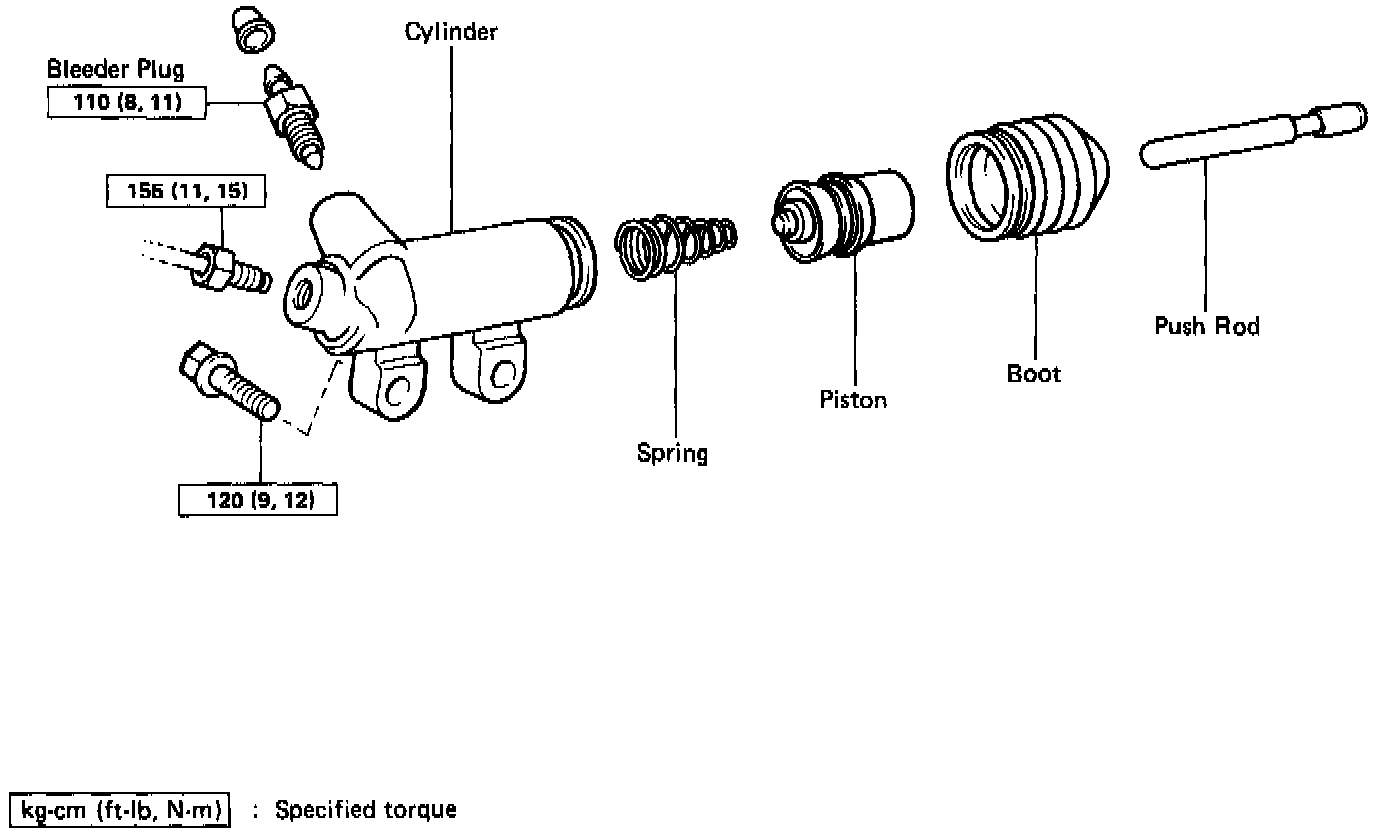

DISASSEMBLY OF RELEASE CYLINDER
1.
PULL OUT PUSH ROD
2.
REMOVE BOOT

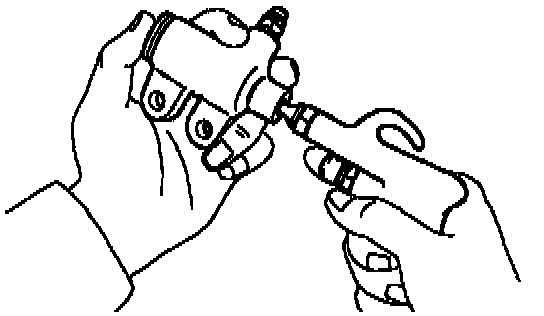

3.
REMOVE PISTON
