Installation

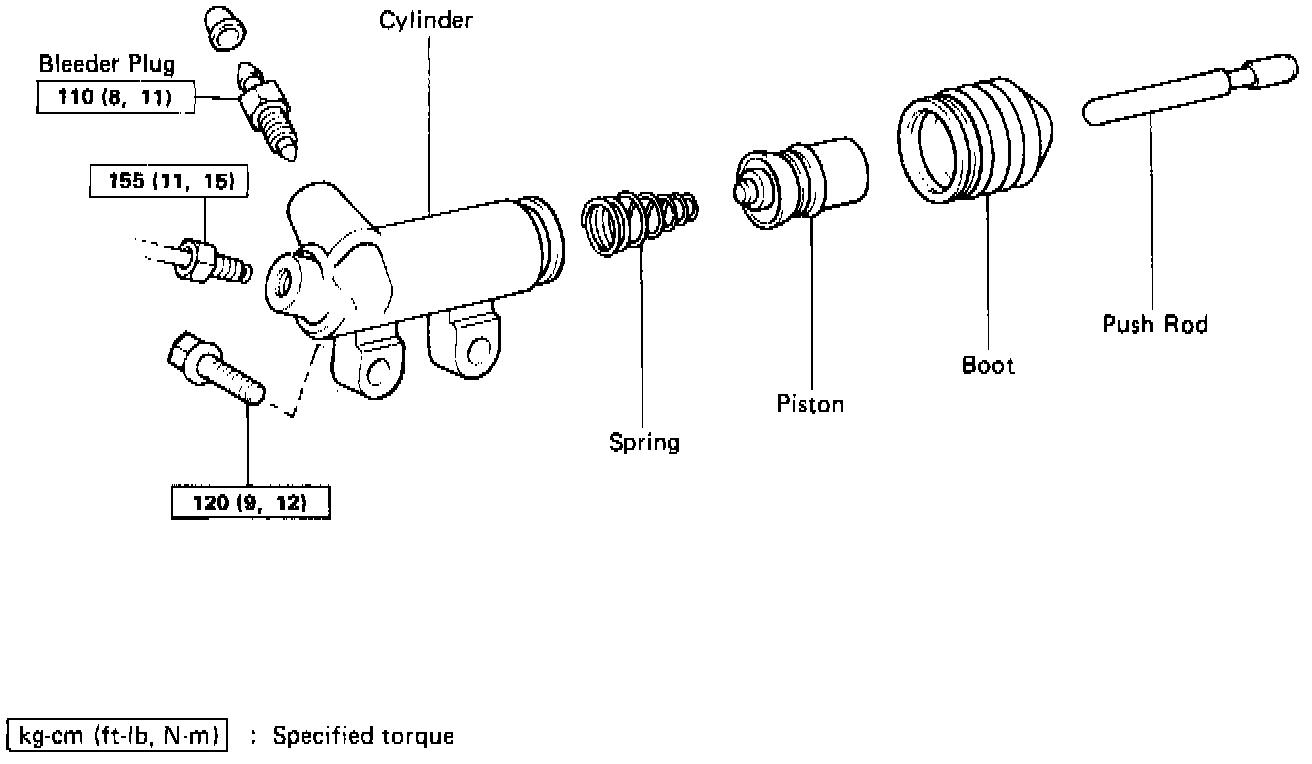

INSTALLATION OF RELEASE CYLINDER
1. INSTALL RELEASE CYLINDER WITH TWO BOLTS

Torque: 120 kg-cm (9 ft-lb, 12 N-m)

2. CONNECT CLUTCH LINE UNION
Using SST, connect the union.
SST 09751-36011
3. BLEED CLUTCH SYSTEM
