Toyota Truck
>>
1991
>>
4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

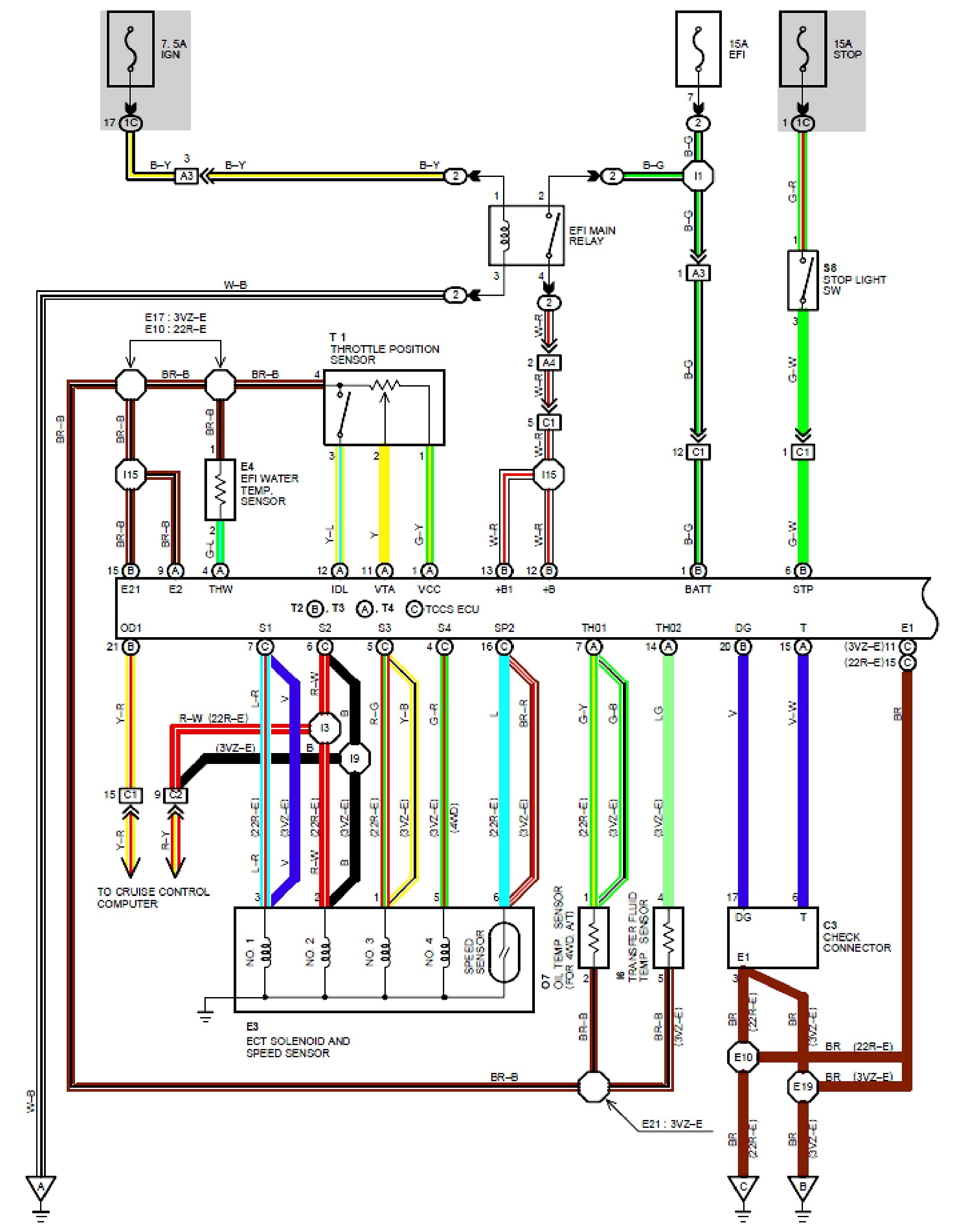

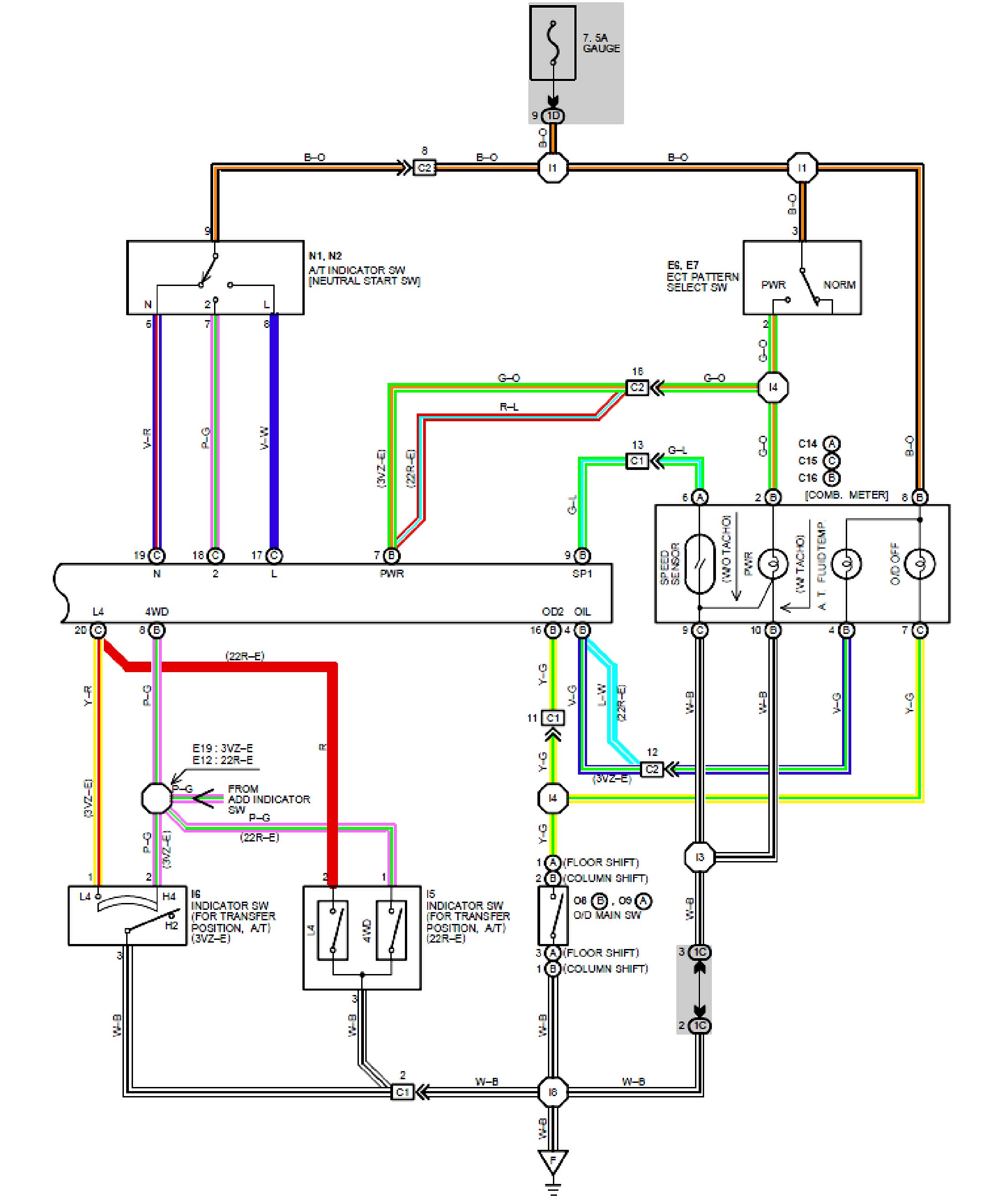

Electronically Controlled Transmission
