G57 & G58 Transmissions

REPLACEMENT OF OIL SEALS





1. (2WD)
IF NECESSARY, REPLACE EXTENSION HOUSING OIL SEAL

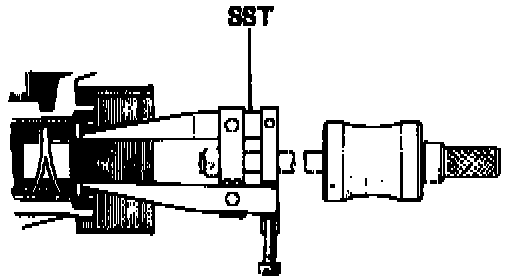

(a) Using SST, remove the oil seal.
SST 09308-00010 or 09308-10010 with output shaft installed

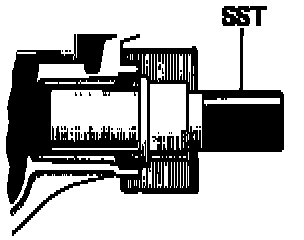

(b) Using SST, drive in a new oil seal.
SST 09325-20010





2. (4WD)
IF NECESSARY, REPLACE TRANSFER ADAPTOR OIL SEAL

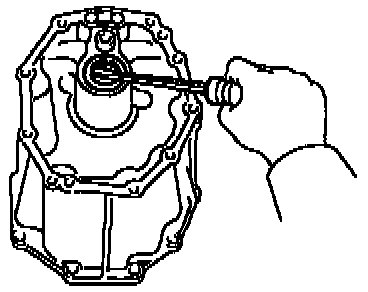

(a) Using a screwdriver, pry out the oil seal.

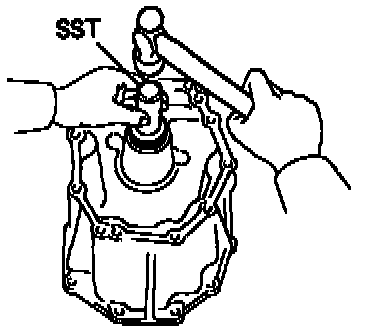

(b) Using SST drive in new oil seal.
SST 09325-12010





3. (2WD)
IF NECESSARY, REPLACE SPEEDOMETER DRIVEN GEAR OIL SEAL

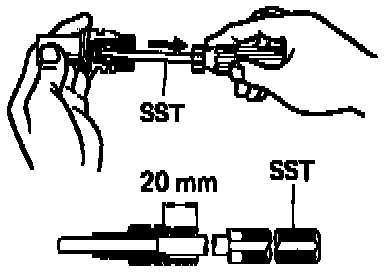

(a) Using SST, pull out the oil seal.
SST 09921-00010
(b) Using SST, drive in a new oil seal into the sleeve.
SST 09201-60011
Oil seal depth: 20 mm (0.79 in.)
