Counter Gear Assembly and Reverse Idler Gear

COMPONENTS





DISASSEMBLY OF COUNTER GEAR ASSEMBLY

REMOVE HUB SLEEVE NO.3, SHIFTING KEYS AND SPRINGS
Using a screwdriver, remove hub sleeve No.3, three shifting keys and two springs.





INSPECTION OF COUNTER GEAR ASSEMBLY
1. MEASURE COUNTER FIFTH GEAR OIL CLEARANCE
(a) Install spacer, needle roller bearing and counter 5th gear to counter gear.

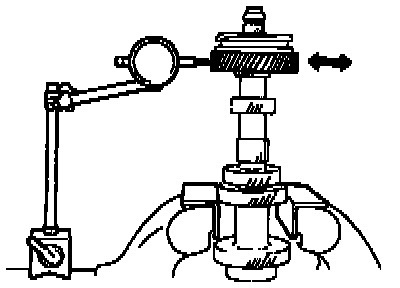

(b) Using a dial indicator, measure counter 5th gear oil clearance
Standard clearance:
0.009 - 0.032 mm (0.0004 - 0.0013 in.)
Maximum clearance:
0.032 mm (0.0013 in.)





2. INSPECT COUNTER GEAR

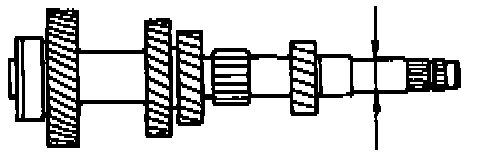

Using a micrometer, measure the outer diameter of needle roller bearing race.
Standard clearance:
25.98 - 26.00 mm (1.0228 - 1.0236 in.)
Minimum clearance:
25.86 mm (1.0181 in.)





3. INSPECT SYNCHRONIZER RING

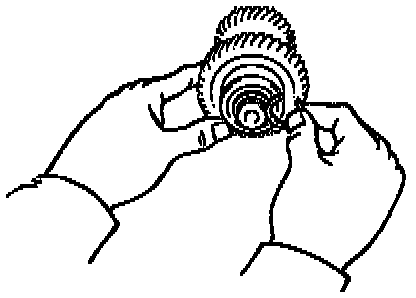

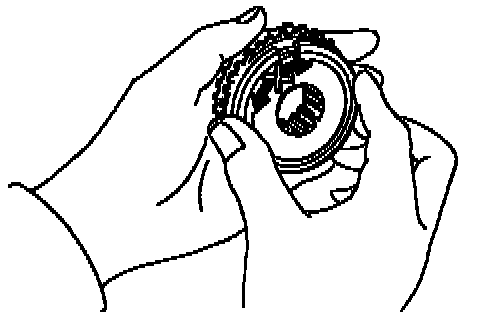

(a) Turn the ring and push it in to the check the beaking action.

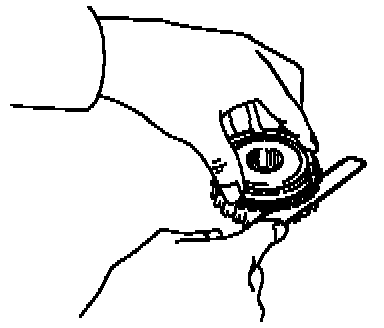

(b) Measure the clearance between the synchronizer ring back and the gear spline end.
Standard clearance:
1.0 - 2.0 mm (0.039 - 0.079 in.)
Minimum clearance:
0.8 mm (0.031 in.)





4. MEASURE CLEARANCE OF SHIFT FORK AND HUB SLEEVE

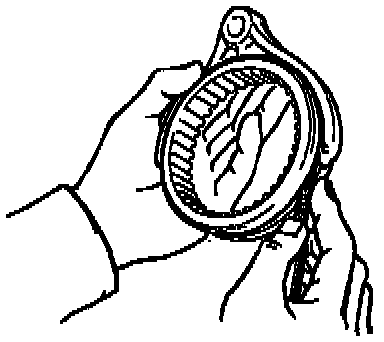

Using a feeler gauge, measure the clearance between the hub sleeve and shift fork.
Maximum clearance: 1.0 mm (0.039 in.)





REPLACEMENT OF BEARING

IF NECESSARY, REPLACE COUNTER GEAR FRONT BEARING

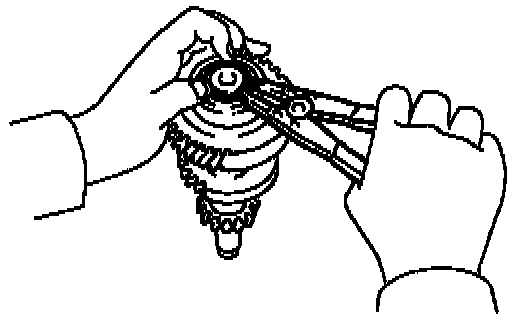

(a) Using snap ring pliers, remove the snap ring.

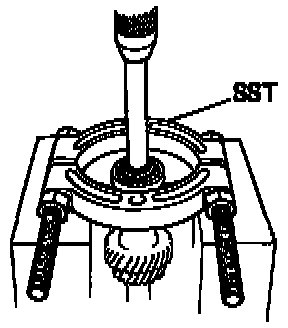

(b) Using SST, press out the bearing.
SST 09950-00020
(c) Replace the side race.

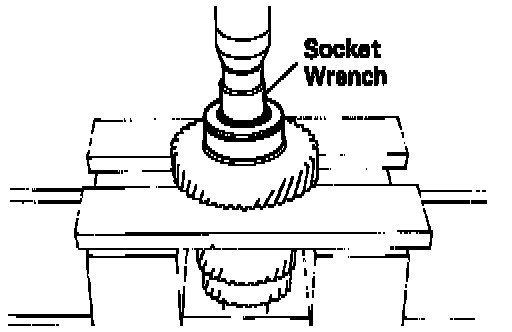

(d) Using a socket wrench, press in the bearing, side race and inner race.








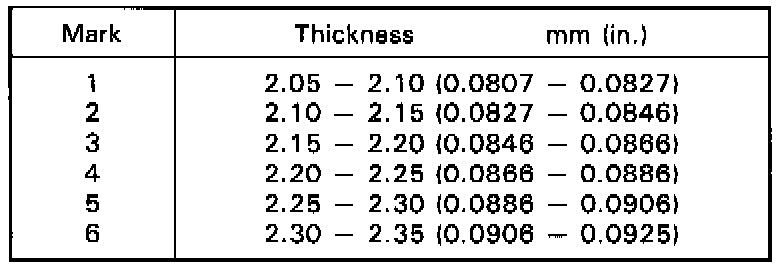

(e) Select a snap ring that will allow minimum axial play and install it on the shaft.





ASSEMBLY OF COUNTER GEAR ASSEMBLY

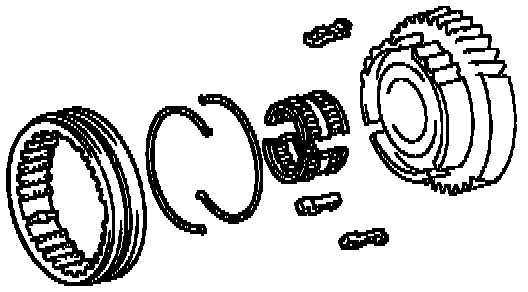

INSTALL HUB SLEEVE NO.3, SHIFTING KEYS AND SPRINGS

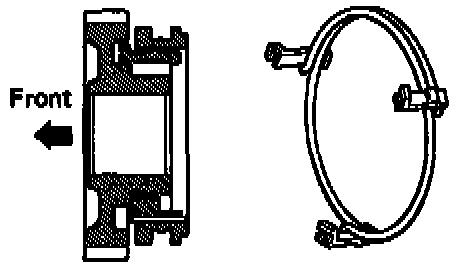

(a) Install the clutch hub and shifting keys to the hub sleeve.
(b) Install the shifting key springs under the shifting keys.
NOTICE: Install the key springs positioned so that their end gaps are not in line.





INSPECTION OF REVERSE IDLER GEAR
1. MEASURE REVERSE IDLER GEAR OIL CLEARANCE
Using a dial indicator measure reverse idler gear oil clearance.
Standard clearance:
0.04 - 0.08 mm (0.0016 - 0.0031 in.)
Maximum clearance:
0.13 mm (0.0051 in.)





2. MEASURE CLEARANCE OF REVERSE IDLER GEAR AND SHIFT ARM SHOE
Using a feeler gauge, measure the clearance between the reverse idler gear and shift arm shoe.
Standard clearance:
0.05 - 0.27 mm (0.0020 - 0.106 in.)
Maximum clearance:
0.5 mm (0.197 in.)
