Input Shaft Assembly

COMPONENTS





INSPECTION OF INPUT SHAFT ASSEMBLY
INSPECT SYNCHRONIZER RING

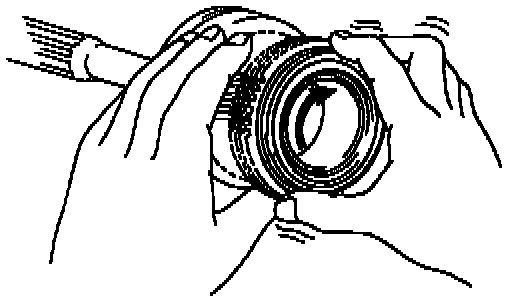

(a) Turn the ring and push it in to check the braking action.

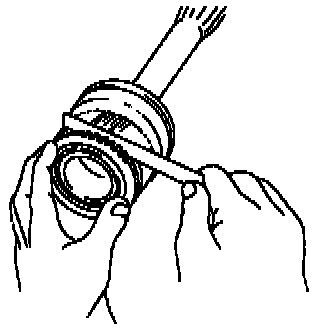

(b) Measure the clearance between the synchronizer ring back and the gear spline end.
Standard clearance:
0.7 - 1.7 mm (0.028 - 0.067 in.)
Minimum clearance:
0.5 mm (0.020 in.)
If the clearance is less than the limit, replace the synchronizer ring.





REPLACEMENT OF BEARING
IF NECESSARY, REPLACE INPUT SHAFT BEARING

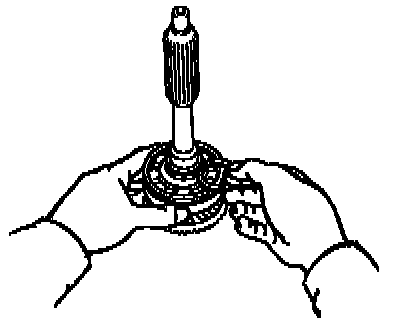

(a) Using snap ring pliers, remove the snap ring.

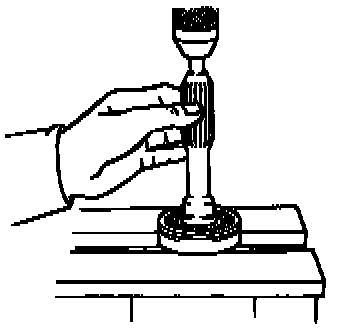

(b) Using a press, remove the bearing.

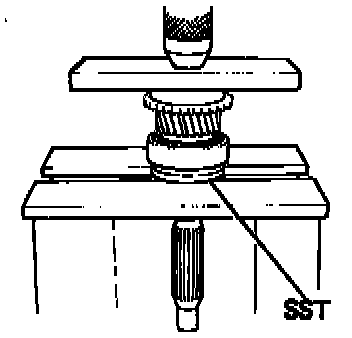

(c) Using a press and SST, install a new bearing.
SST 09506-35010

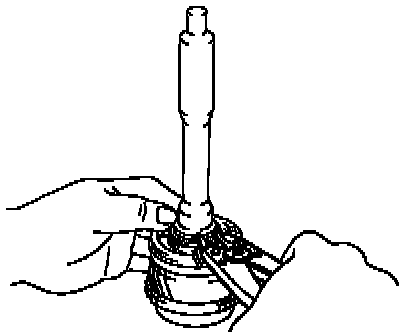

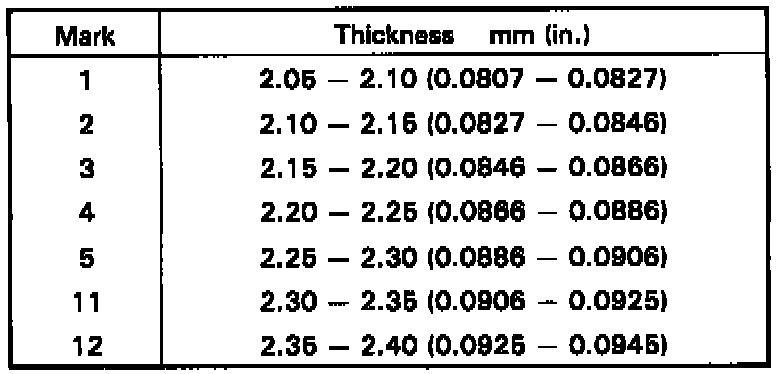

(d) Select a snap ring that will allow minimum axial play and install it on the shaft.
