Transfer Case: Application and ID

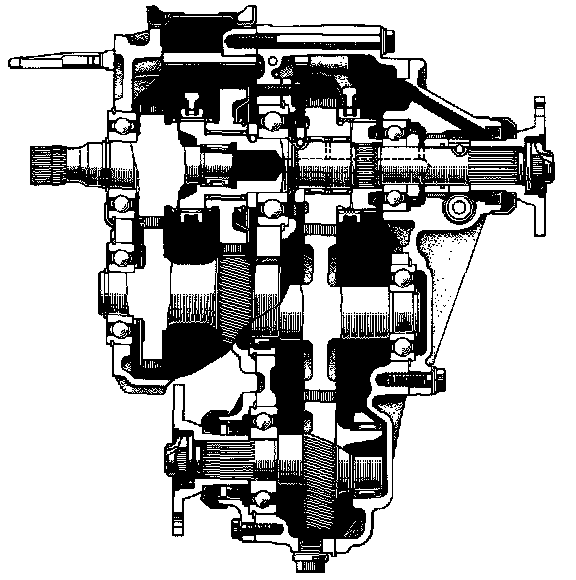

RF1A - Counter Gear Type Transfer:

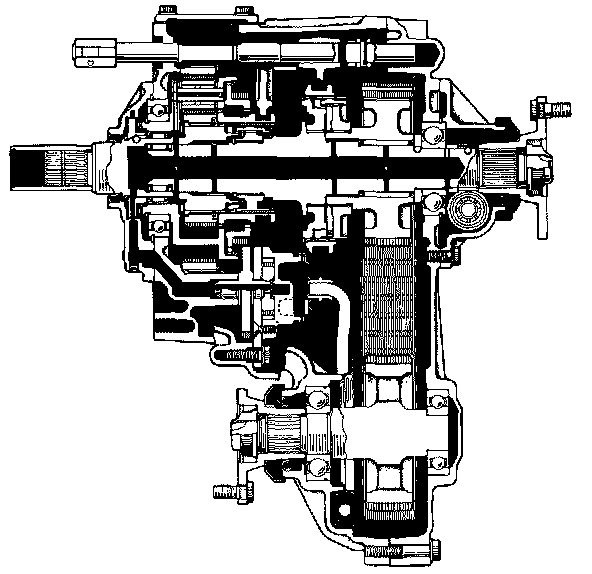

VF1A - Planetary Gear Type Transfer:





Transfer Types

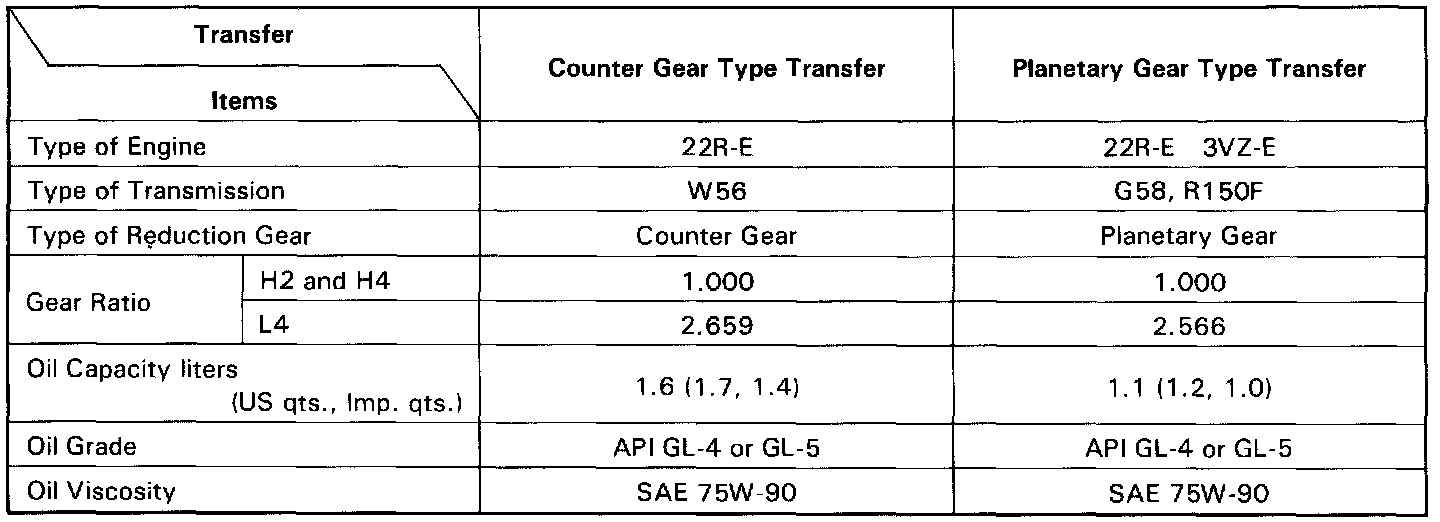

Application and Design Specifications
