RF1A

FRONT DRIVE GEAR

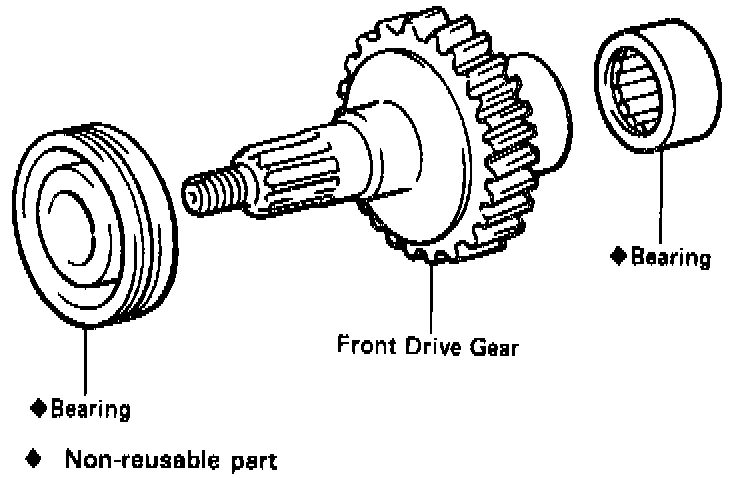

COMPONENTS






BEARING REPLACEMENT

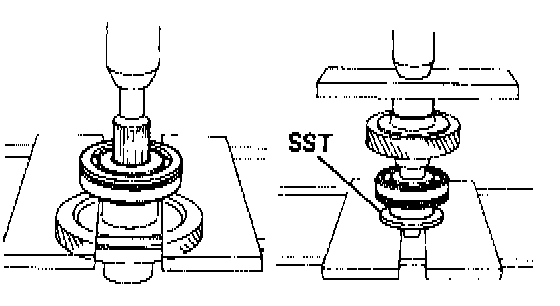

1. IF NECESSARY, REPLACE FRONT DRIVE GEAR FRONT BEARING
(a) Press out the bearing.
(b) Using SST and a press, press in a new bearing. SST 09316-60010 (09316-00020)

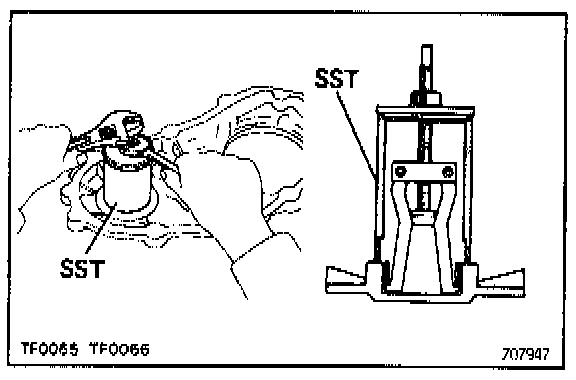

2. IF NECESSARY. REPLACE FRONT DRIVE GEAR REAR BEARING
(a) Using SST, remove the bearing. SST 09612-30012

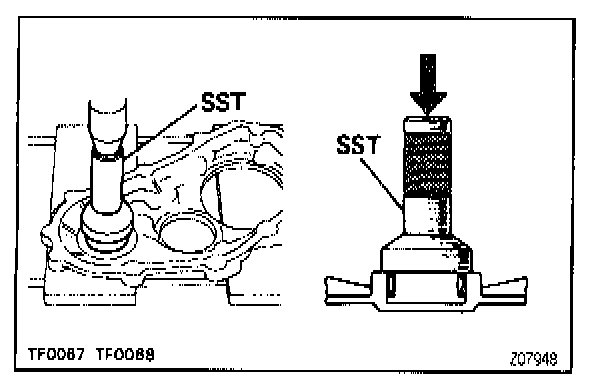

(b) Using SST and a press. press in a new bearing. SST 09310-35010
