VF1A

DRIVEN SPROCKET

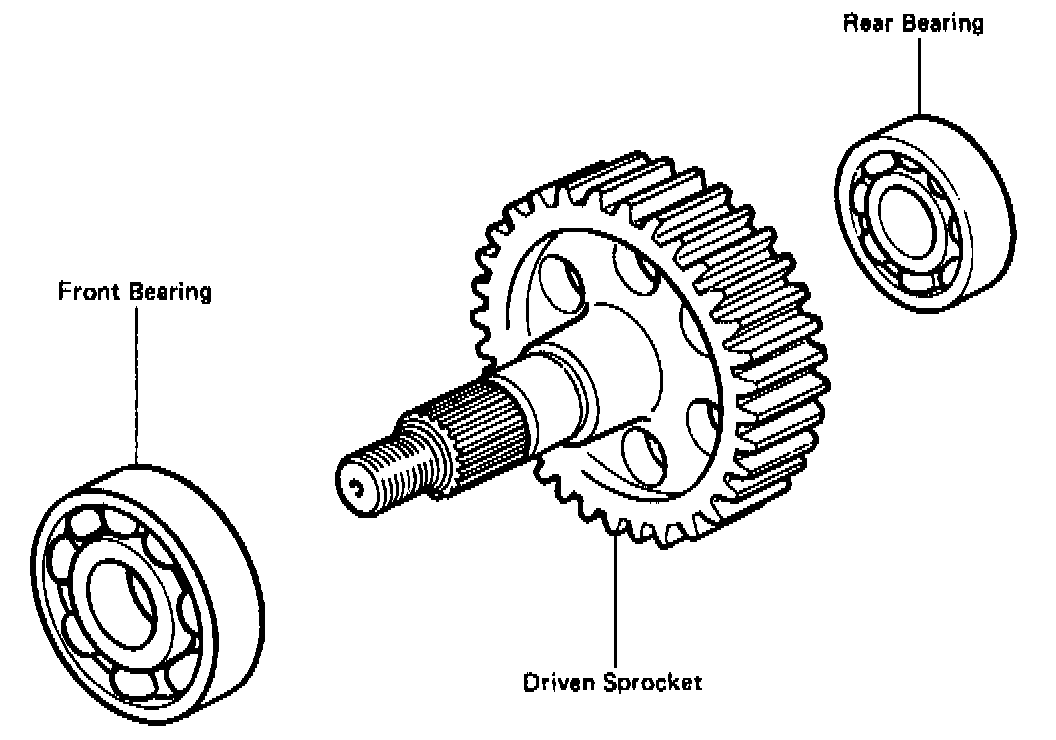

COMPONENTS






DRIVEN SPROCKET DISASSEMBLY

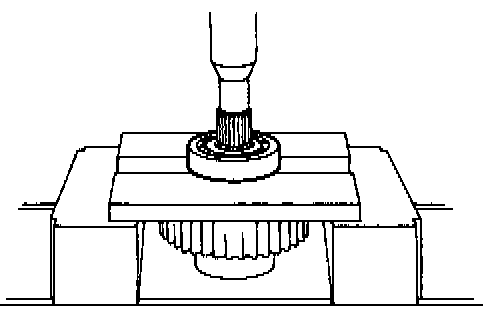

1. REMOVE FRONT BEARING
Using a press, remove the front bearing.

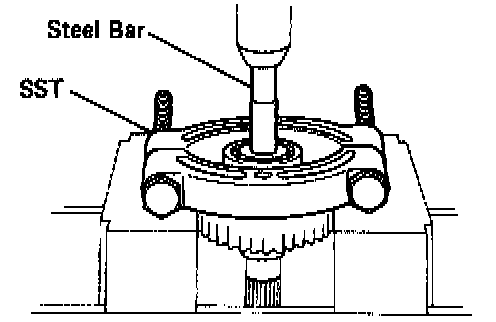

2. REMOVE REAR BEARING
Using SST and a press, remove the rear bearing. SST 09950-00020



DRIVEN SPROCKET ASSEMBLY

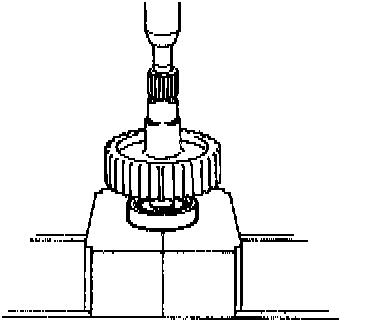

1. INSTALL REAR BEARING
Using a press, install the rear bearing.

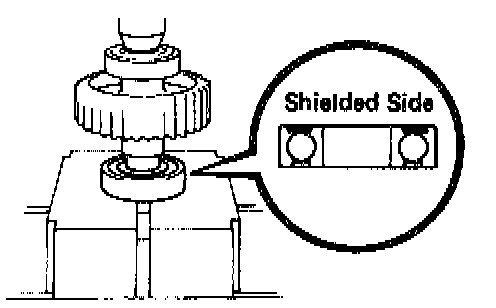

2. INSTALL FRONT BEARING
Using a press, install the front bearing.

HINT: Ensure the bearing is installed in the correct direction.
