RF1A

INPUT GEAR

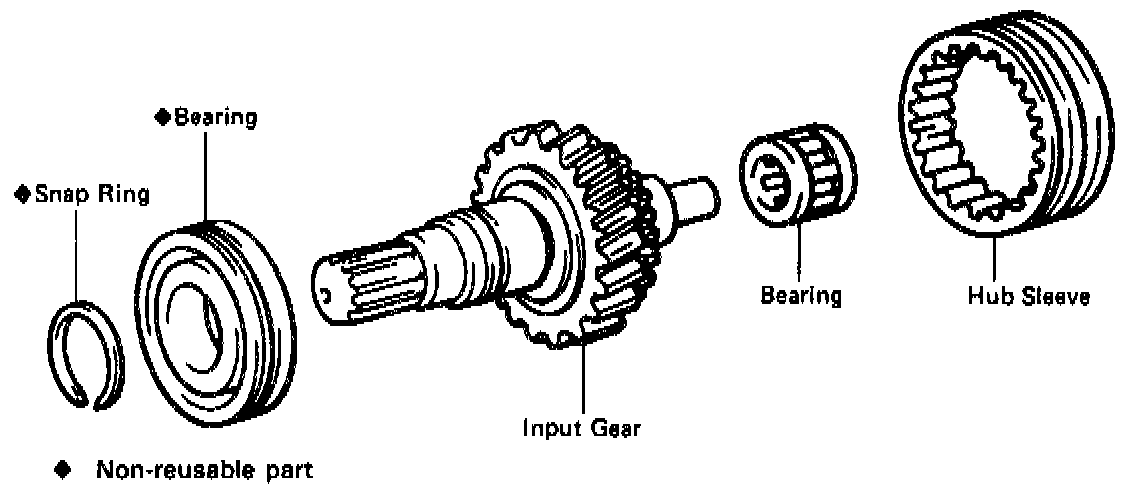

COMPONENTS






BEARING REPLACEMENT

IF NECESSARY. REPLACE INPUT GEAR BEARING

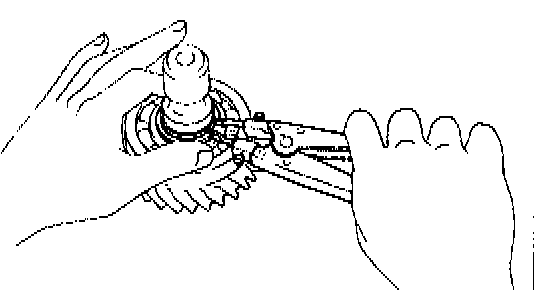

(a) Using a snap ring expander, remove the snap ring.

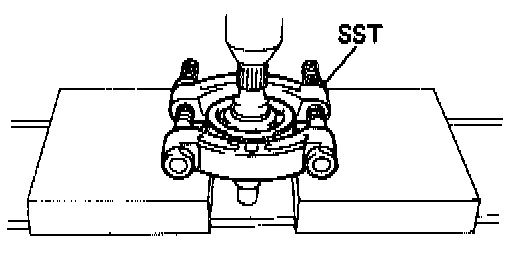

(b) Using SST and a press, remove the bearing. SST 09950-00020

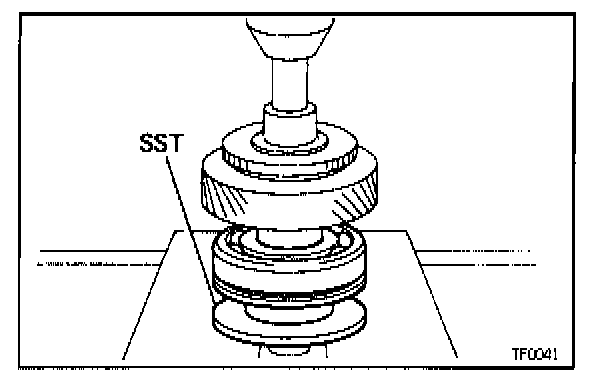

(c) Using SST, press in a new bearing.
SST 09316-60010 (09316-00070)

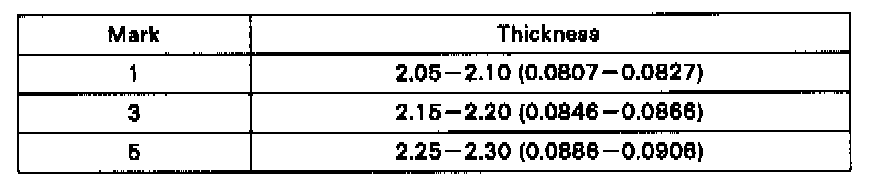

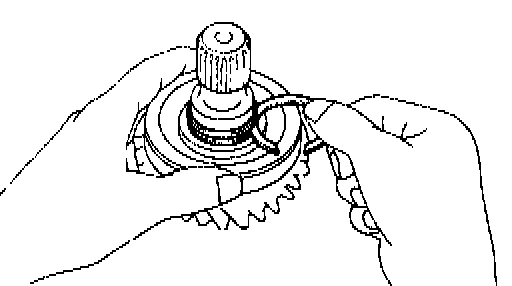

(d) Select a snap ring that will allow minimum axial play and install it on the shaft.
Maximum play: 0.15 mm (0.0059 in.)






HUB SLEEVE AND SHIFT FORK INSPECTION




INSPECT SHIFT FORK AND HUB SLEEVE CLEARANCE

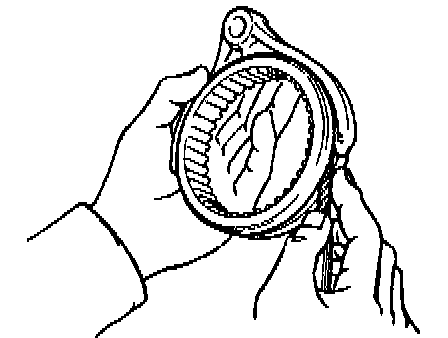

Using a feeler gauge measure the clearance between the hub sleeve and shift fork.
Maximum clearance: 1.0 mm (0.039 in.)
If the clearance exceeds the maximum, replace the shift fork or hub sleeve.
