VF1A

INPUT SHAFT

COMPONENTS






INPUT SHAFT DISASSEMBLY




REMOVE SUN GEAR

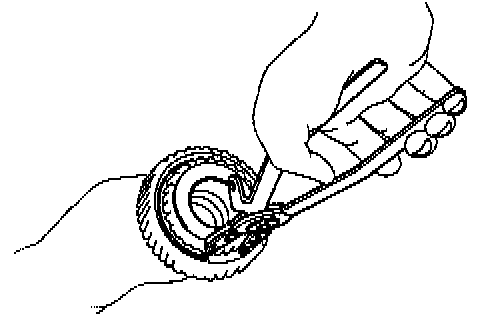

(a) Using snap ring pliers, remove the snap ring.

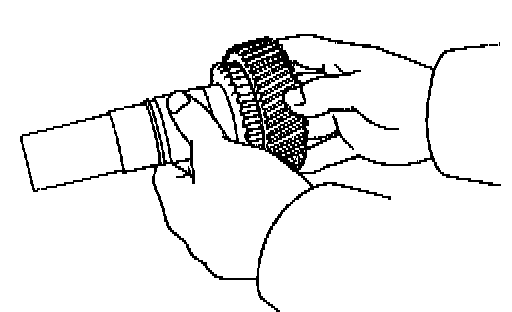

(b) Remove the sun gear from the input shaft.



INPUT SHAFT INSPECTION




1. INSPECT INPUT SHAFT

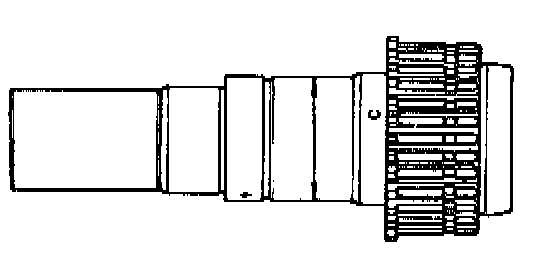

(a) Using a micrometer, measure the outer diameter of the input shaft journal surface.
Minimum diameter: 47.59 mm (1.8736 in.)

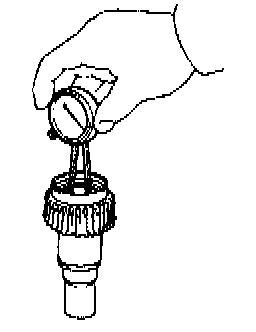

(b) Using a dial indicator, measure the inside diameter of the input shaft bushing.
Maximum inside diameter: 39.14 mm (1.5409 in.)
If the inside diameter exceeds the maximum. replace the input shaft.




2. INSPECT SYNCHRONIZER RING (M/T)

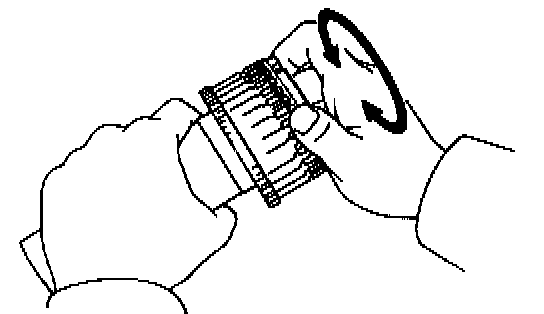

(a) Turn the ring and push it in to check the braking action.

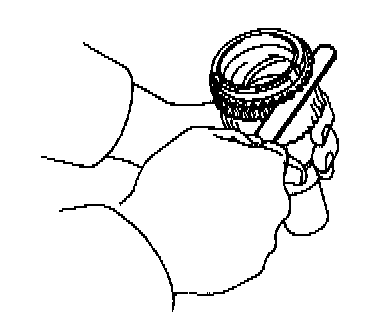

(b) Measure the clearance between the synchronizer ring back and the input shaft spline end.
Standard clearance: 1.15-1.85 mm (0.0453-0.0728 in.)
Minimum clearance: 0.8 mm (0.031 in.)
If the clearance is less than the minimum, replace the synchronizer ring.



INPUT SHAFT ASSEMBLY




INSTALL SUN GEAR

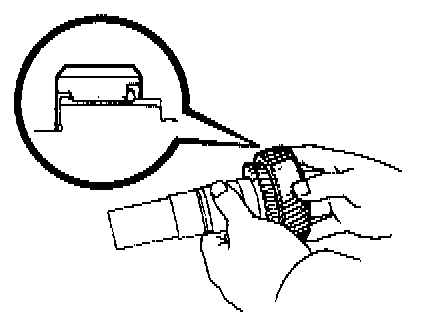

(a) Install the sun gear to the input shaft.

HINT: Ensure that the sun gear is installed in the correct direction.




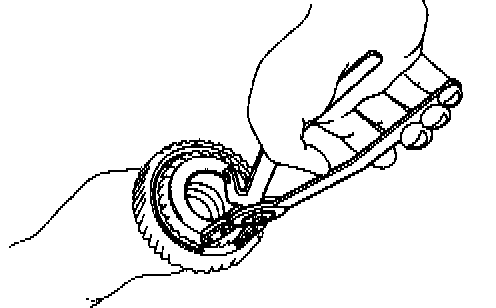

(b) Using snap ring pliers, install the snap ring.
