Oil Seals Replacement

OIL SEALS

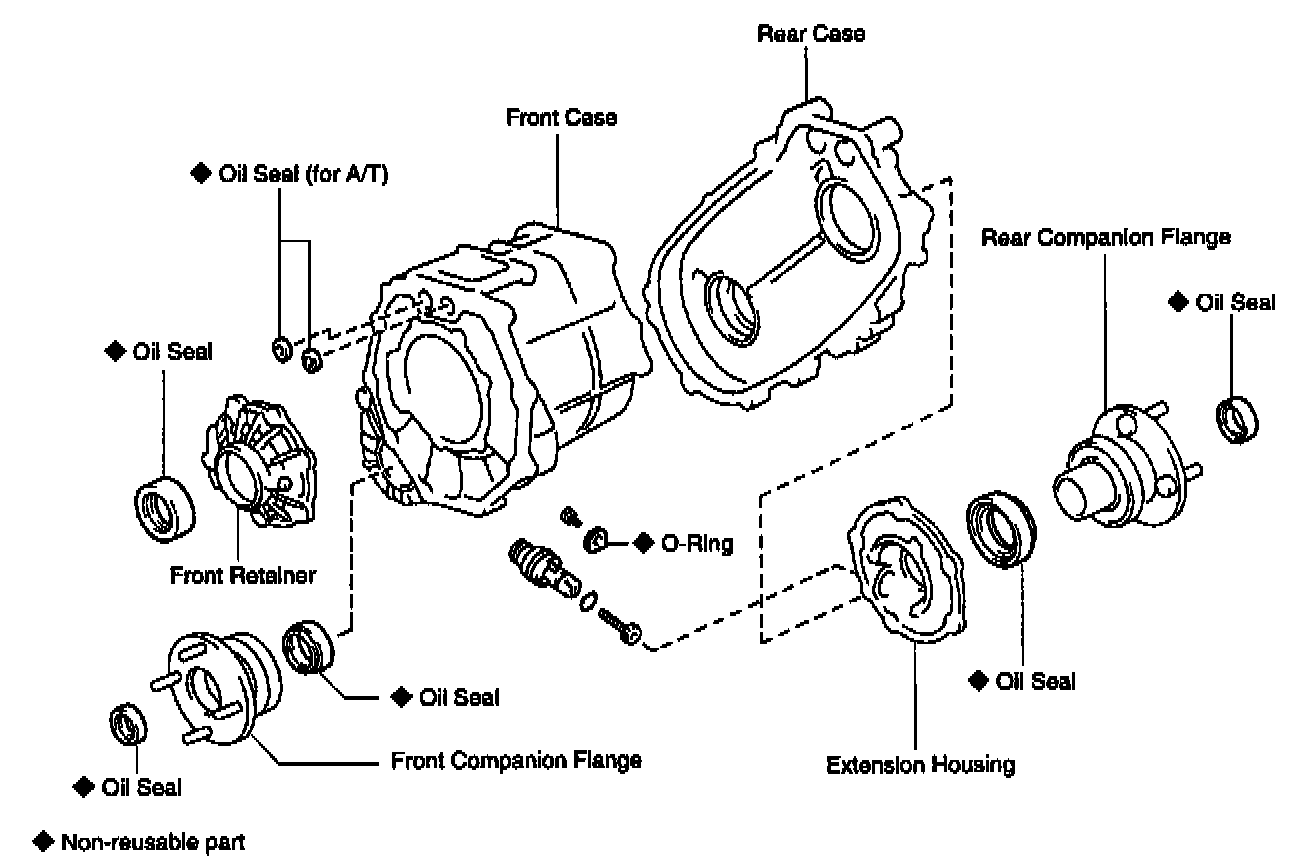

COMPONENTS






OIL SEALS REPLACEMENT




1. IF NECESSARY, REPLACE FRONT RETAINER OIL SEAL

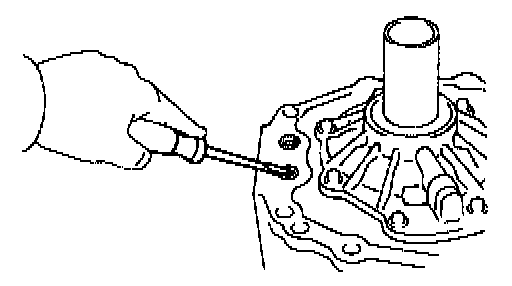

(a) Using a screwdriver and hammer, drive out the oil seal.

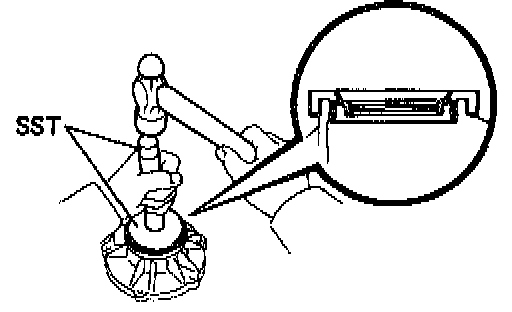

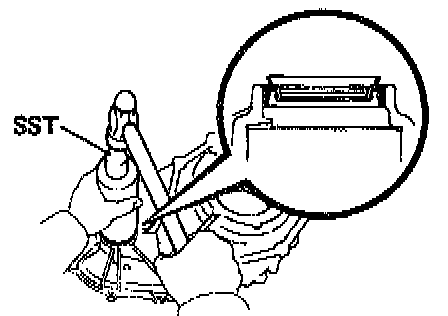

(b) Using SST and a hammer, drive in a new oil seal until its surface is flush with the retainer upper surface. SST 09223-22010
(c) Coat the lip of the oil seal with MP grease.




2. IF NECESSARY. REPLACE FRONT CASE OIL SEAL

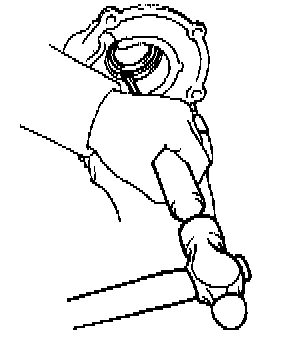

(a) Using a screwdriver and hammer, drive out the oil seal.

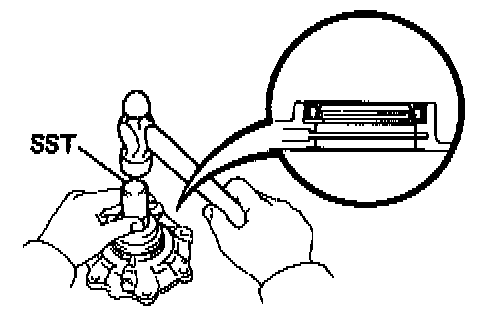

(b) Using SST and a hammer, drive in a new oil seal until its surface is flush with the case upper surface. SST 09316-60010 (09316-00010)
(c) Coat the lip of the oil seal with MP grease.




3. IF NECESSARY, REPLACE EXTENSION HOUSING OIL SEAL

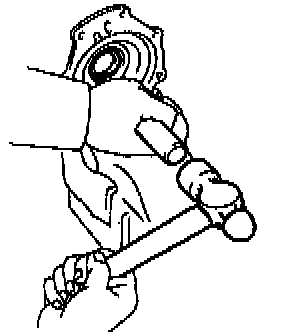

(a) Using a screwdriver and hammer, drive out the oil seal.

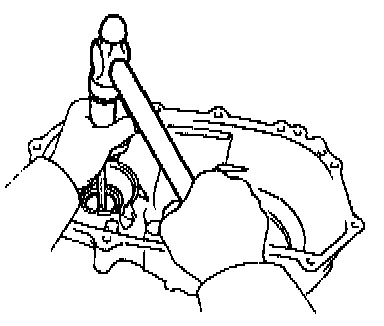

(b) Using SST and a hammer, drive in a new oil seal until its surface is flush with the housing upper surface. SST 09550-22011 (09550-00020. 09550-00031)
(c) Coat the lip of the oil seal with MP grease.




4. IF NECESSARY, REPLACE FRONT AND REAR COMPANION FLANGES OIL SEAL
(a) Using a screwdriver and hammer, drive out the oil seal.




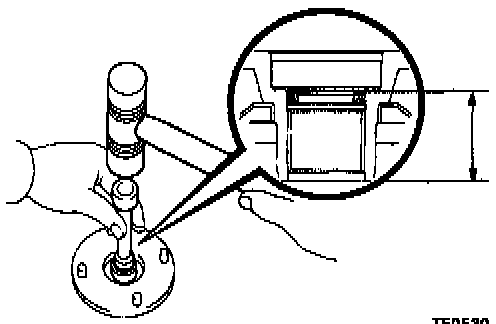

(b) Using a socket wrench and hammer, drive in a new oil seal.
(c) Coat the lip of the oil seal with MP grease.




5. 22R-E/ G58, A340F:
IF NECESSARY, REPLACE SHIFT FORK SHAFT OIL SEALS
(a) Using a screwdriver. pry out the oil seal.

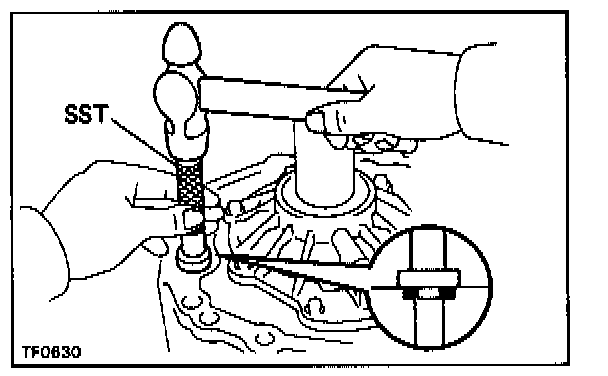

(b) Using SST and a hammer, drive in a new oil seal. SST 09304-12012
Oil seal depth: -0.5~0.5 mm (-0.020~0.020 in.)
