Transfer Disassembly

TRANSFER DISASSEMBLY

3VZ-E/R150F:

22R-E/G58,A340F:

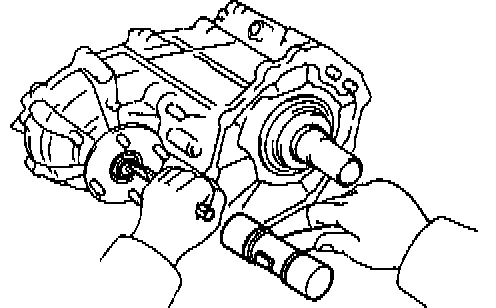

1. REMOVE SPEEDOMETER DRIVEN GEAR
2. REMOVE TRANSFER INDICATOR SWITCH
3. 22R-E/A340E:
REMOVE TRANSFER L4 AND NEUTRAL POSITION SWITCH

4. 22R-E/ G58, A340F:
REMOVE SHIFT GEAR HEAD NO.1 AND NO.2
(a) Using a pin punch and hammer. drive out the 2 slotted spring pins.
(b) Remove the 2 shift gear heads.

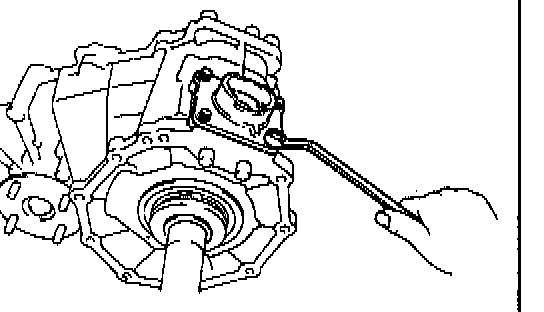

5. REMOVE FRONT RETAINER
Remove the 7 bolts and the front retainer.

6. 3VZ-E/R15OF:

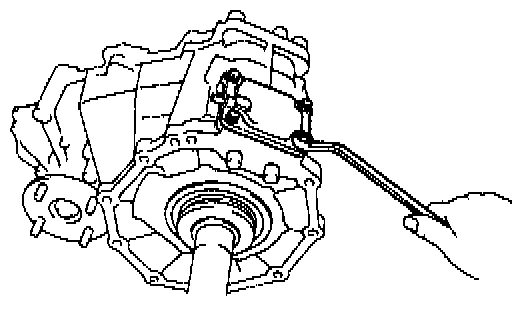

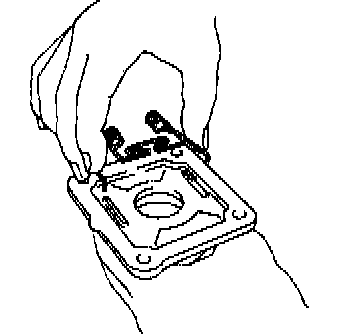

REMOVE CONTROL RETAINER
(a) Remove the 4 bolts and the control retainer.

(b) Remove the select return spring from the retainer.

7. 22R-E/ G58, A340F:
REMOVE UPPER COVER AND BREATHER HOSE DEFLECTOR
Remove the 4 bolts and the upper cover and breather hose deflector.

8. REMOVE FRONT COMPANION FLANGE
(a) Using a hammer and chisel. loosen the staked part of the nut.

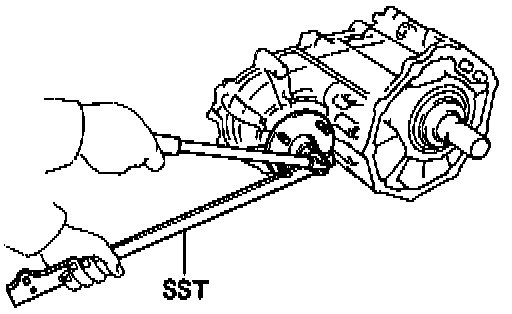

(b) Using SST to hold the flange, remove the companion flange lock nut.
SST 09330-00021

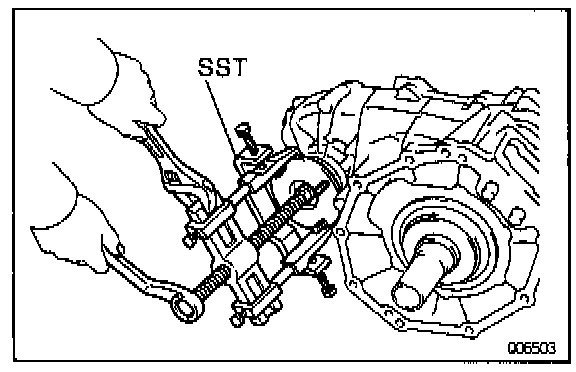

(c) Using SST, remove the companion flange. SST 09950-40010
9. REMOVE REAR COMPANION FLANGE
Remove the rear companion flange in the same way as the front companion flange.

10. REMOVE EXTENSION HOUSING
(a) Remove the 5 bolts.
(b) Using a plastic hammer, tap the extension housing and remove it.

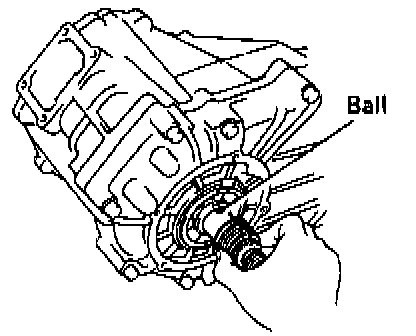

11. REMOVE SPEEDOMETER DRIVE GEAR
(a) Remove the speedometer drive gear.
(b) Using a magnetic finger, remove the ball from the rear output shaft.

12. SEPARATE FRONT CASE AND REAR CASE

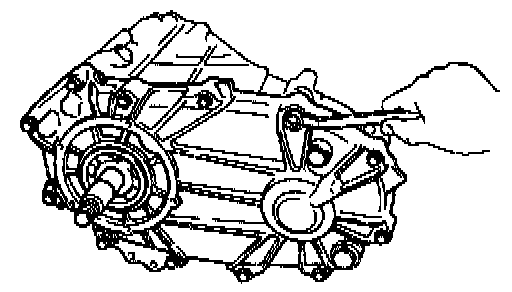

(a) Remove the 12 bolts.

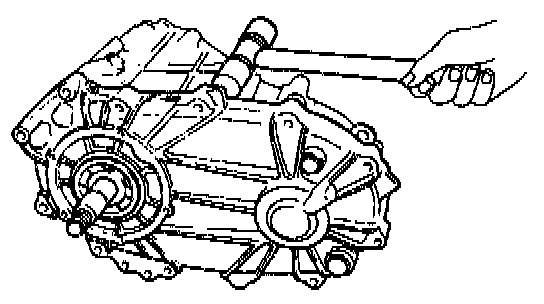

(b) Using a plastic hammer, tap the rear case and separate the front case and rear case.

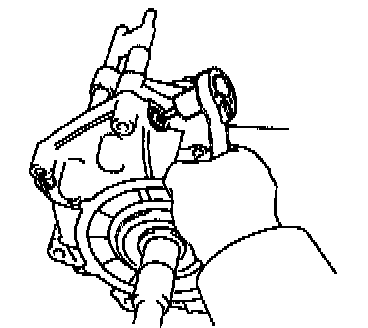

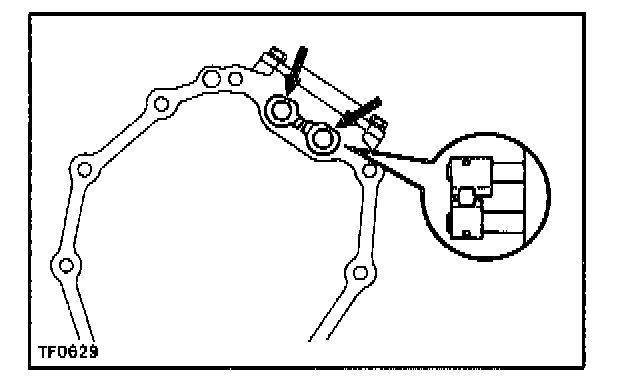

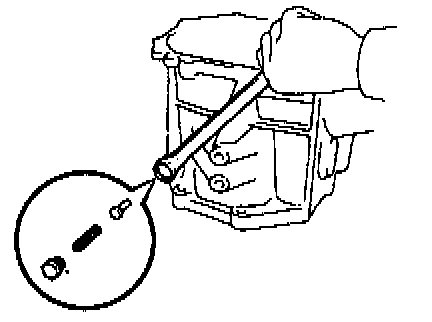

13. REMOVE STRAIGHT SCREW PLUGS, SPRINGS AND LOCKING BALLS
(a) Using a hexagon wrench, remove the 2 screws. SST 09313-30021

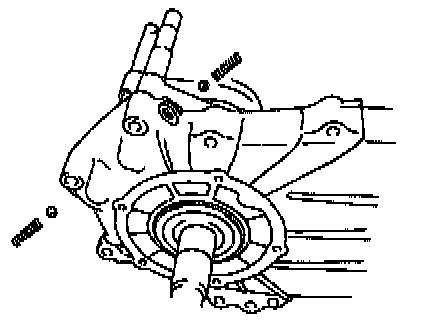

(b) Using a magnetic finger, remove the spring and ball from both of the holes.

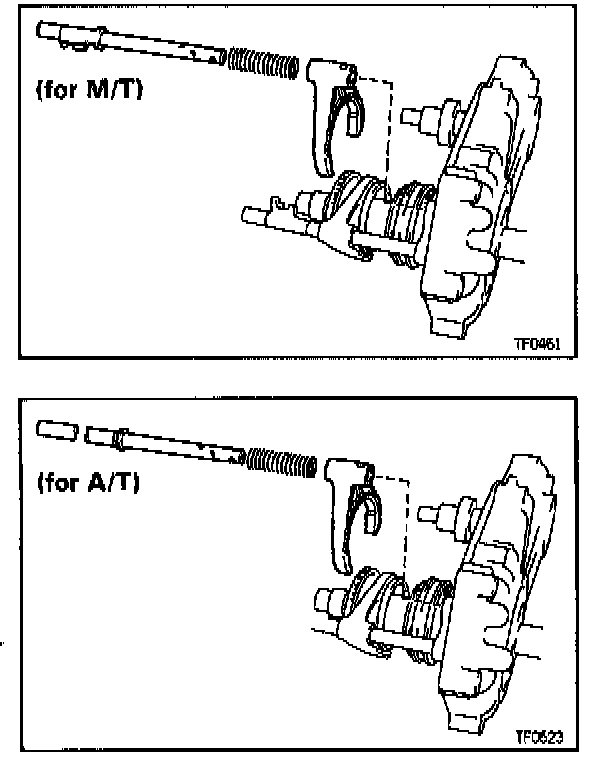

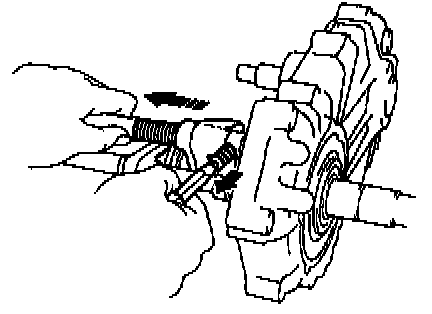

14. REMOVE FRONT DRIVE FORK SHAFT, FORK AND SPRING

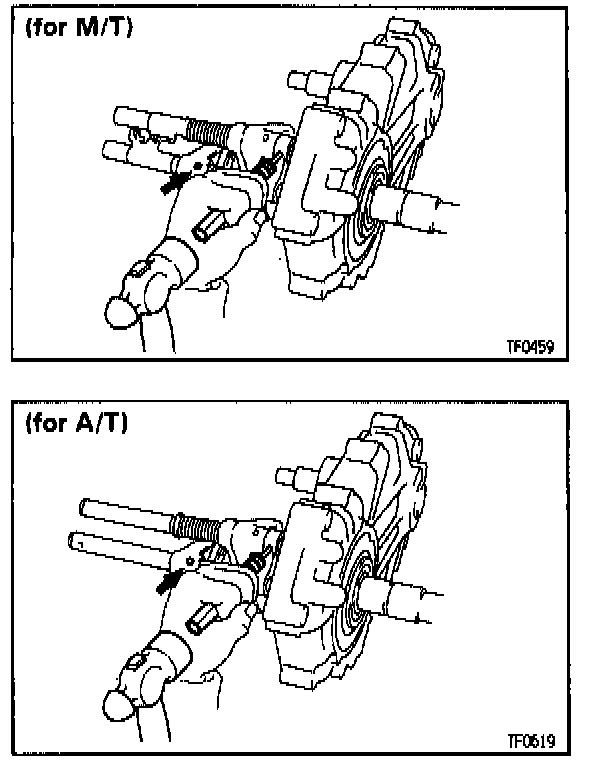

(a) Using a pin punch and hammer, drive out the 2 slotted spring pins.

HINT: When the pin is removed from the front drive fork shaft, the shaft will spring loose if the pin punch is removed, so keep the pin punch inserted in the shaft hole.

(b) Hold the front drive fork shaft in place by hand, when removing the pin punch.

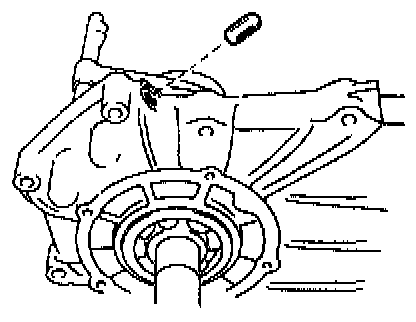

(d) Using a magnetic finger. remove the straight pin.

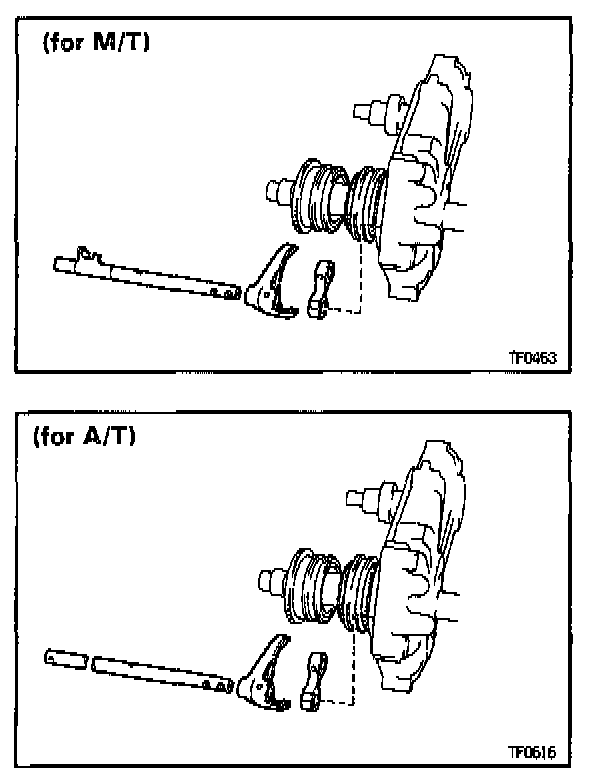

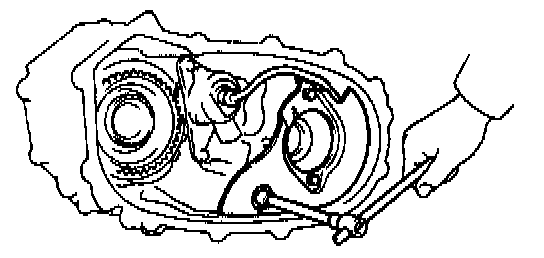

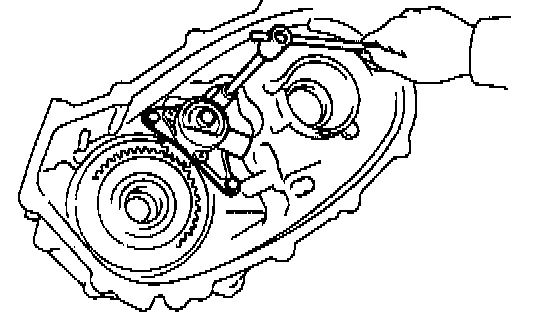

15. REMOVE HIGH AND LOW FORK SHAFT, FORK AND STOPPER

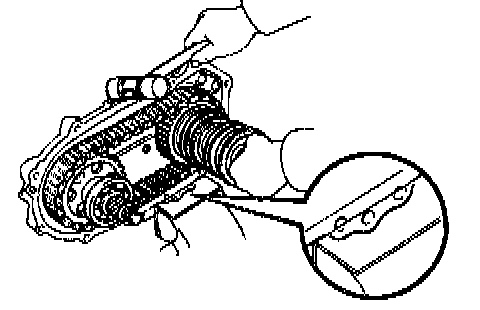

16. REMOVE REAR OUTPUT SHAFT. DRIVEN SPROCKET AND CHAIN

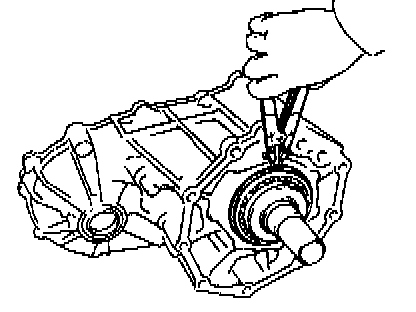

(a) Using a snap ring expander. remove the snap ring.

(b) Mount the rear case in the vise.

NOTICE: Be careful not to damage the sealing surface.

(c) Using a plastic hammer, tap the rear case with pulling the rear output shaft and driven sprocket.
(d) Remove the chain.

17. 3VZ-E/R15OF:

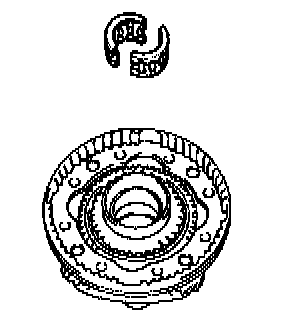

REMOVE SYNCHRONIZER RING FROM INPUT SHAFT

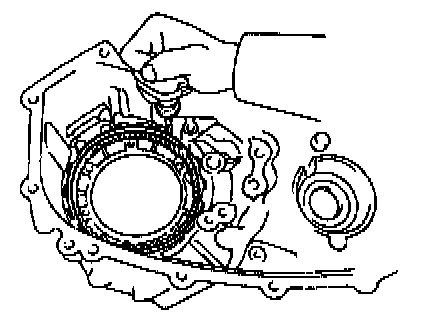

18. REMOVE SEPARATOR WITH OIL STRAINER

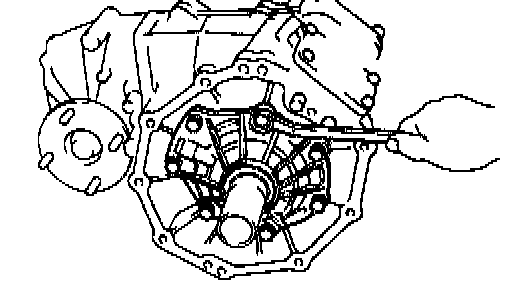

(a) Remove the 3 bolts and the separator with the oil strainer.

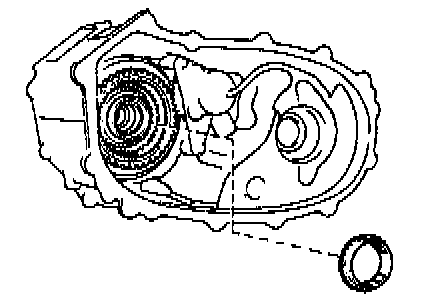

(b) Remove the 0-ring from the oil strainer pipe.

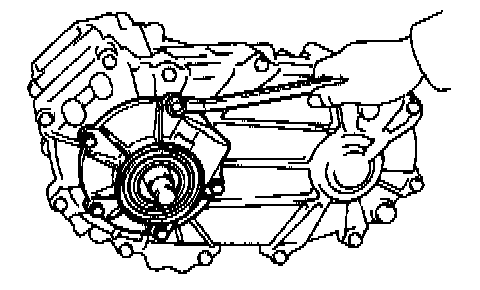

19. REMOVE OIL PUMP BODY ASSEMBLY
Remove the 3 bolts and the oil pump body assembly.

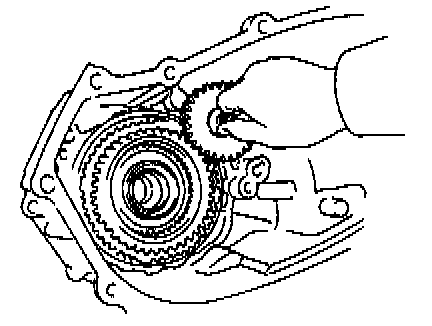

20. REMOVE OIL PUMP DRIVE GEAR

21. REMOVE PLANETARY GEAR ASSEMBLY WITH INPUT SHAFT

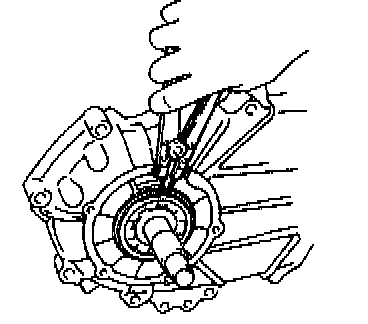

(a) Using a snap ring expander, remove the snap ring.

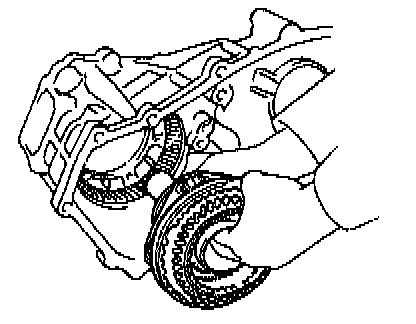

(b) Pull out the planetary gear assembly with the input shaft.

22. REMOVE LOW GEAR SPLINE PIECE

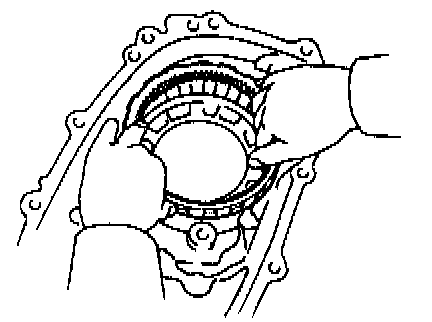

(a) Using a screwdriver. remove the snap ring.

(b) Remove the low gear spline piece.

23. REMOVE NEEDLE ROLLER BEARING FROM INPUT SHAFT

24. REMOVE INPUT SHAFT STOPPER AND THRUST BEARING

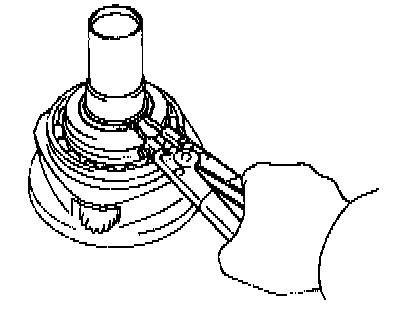

(a) Using a snap ring expander, remove the snap ring.

(b) Remove the input shaft stopper, thrust bearing, race and the 2 pins.

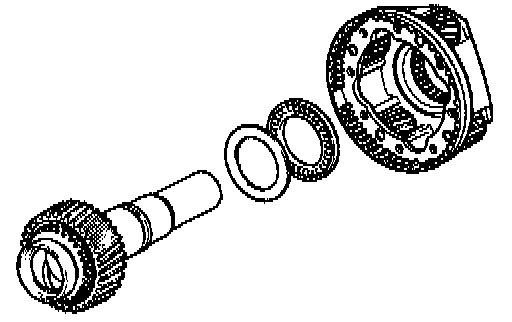

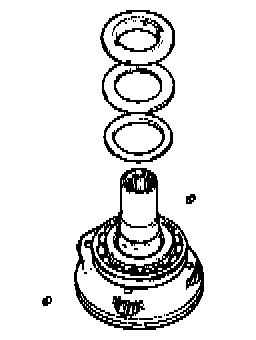

25. REMOVE INPUT SHAFT, THRUST BEARING AND RACE

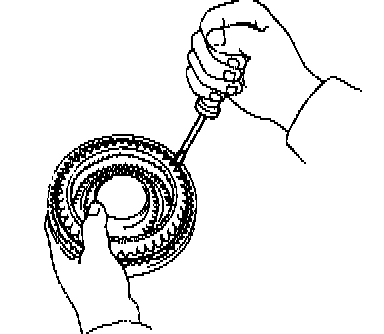

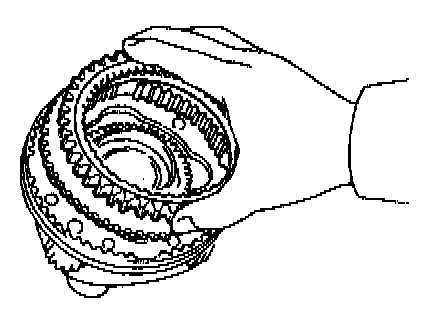

26. REMOVE PLANETARY RING GEAR
(a) Using a screwdriver, remove the snap ring.

(b) Remove the plug, spring and pin.

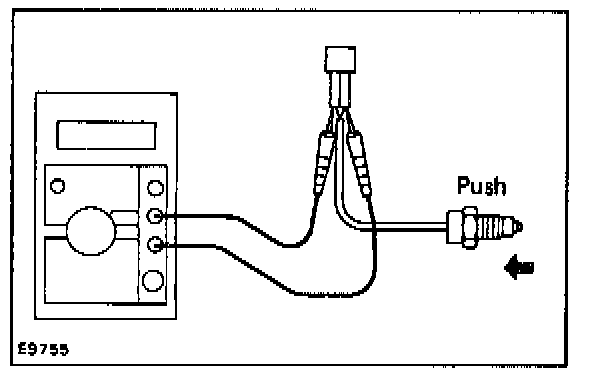

27. INSPECT TRANSFER INDICATOR SWITCH
Check that there is continuity between terminals as shown.
Switch Position Specified
Push continuity
Free No continuity

If operation is not as specified. replace the switch.

28. 22R-E/ G58, A340F:
INSPECT TRANSFER L4 AND NEUTRAL POSITION SWITCH
Check that there is continuity between terminals as shown.
Switch Position Specified
Push continuity
Free No continuity

If operation is not as specified, replace the switch.
