Transfer Removal

TRANSFER REMOVAL

1. REMOVE TRANSFER WITH TRANSMISSION
Manual Transmission - Service and Repair
Automatic Transmission - Service and Repair




2. 22R-E/G58, A340F:

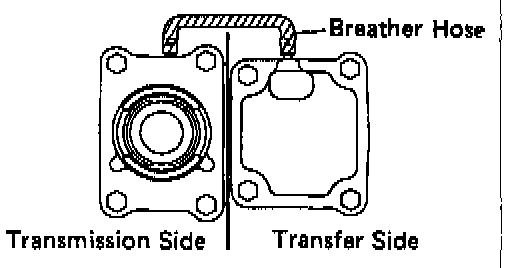

REMOVE BREATHER HOSE
Disconnect the breather hose from transfer upper cover and transmission control retainer.

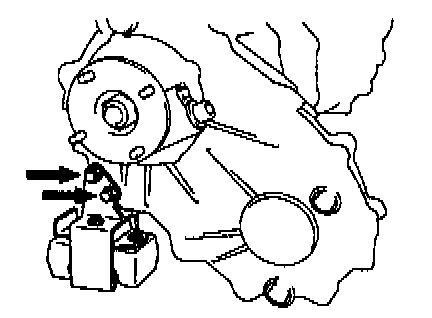

3. REMOVE ENGINE REAR MOUNTING

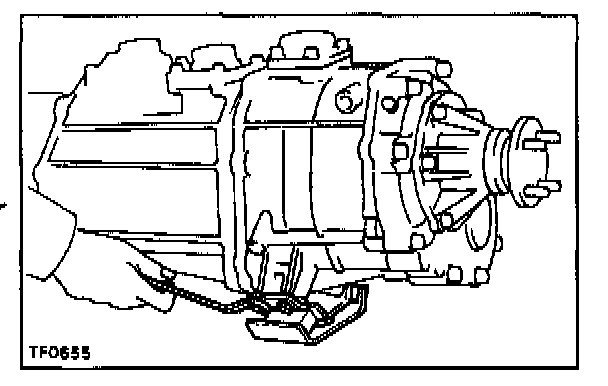

4. REMOVE DYNAMIC DAMPER

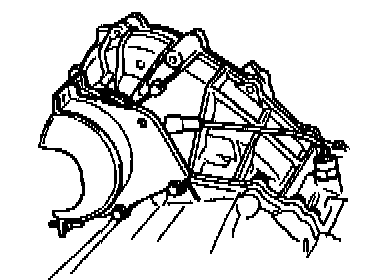

5. REMOVE PROPELLER SHAFT UPPER DUST COVER AND TRANSFER FROM TRANSMISSION
(a) Remove the dust cover bolt from the bracket.
(b) Remove the transfer adaptor rear mounting bolts.
(c) Pull the transfer straight up and remove it from the transmission.

HINT: Take care not to damage the adaptor rear oil seal with the transfer input gear spline.
