Diesel Data
: Automotive Repair
Home
>>
Toyota Truck
>>
1991
>>
4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
>>

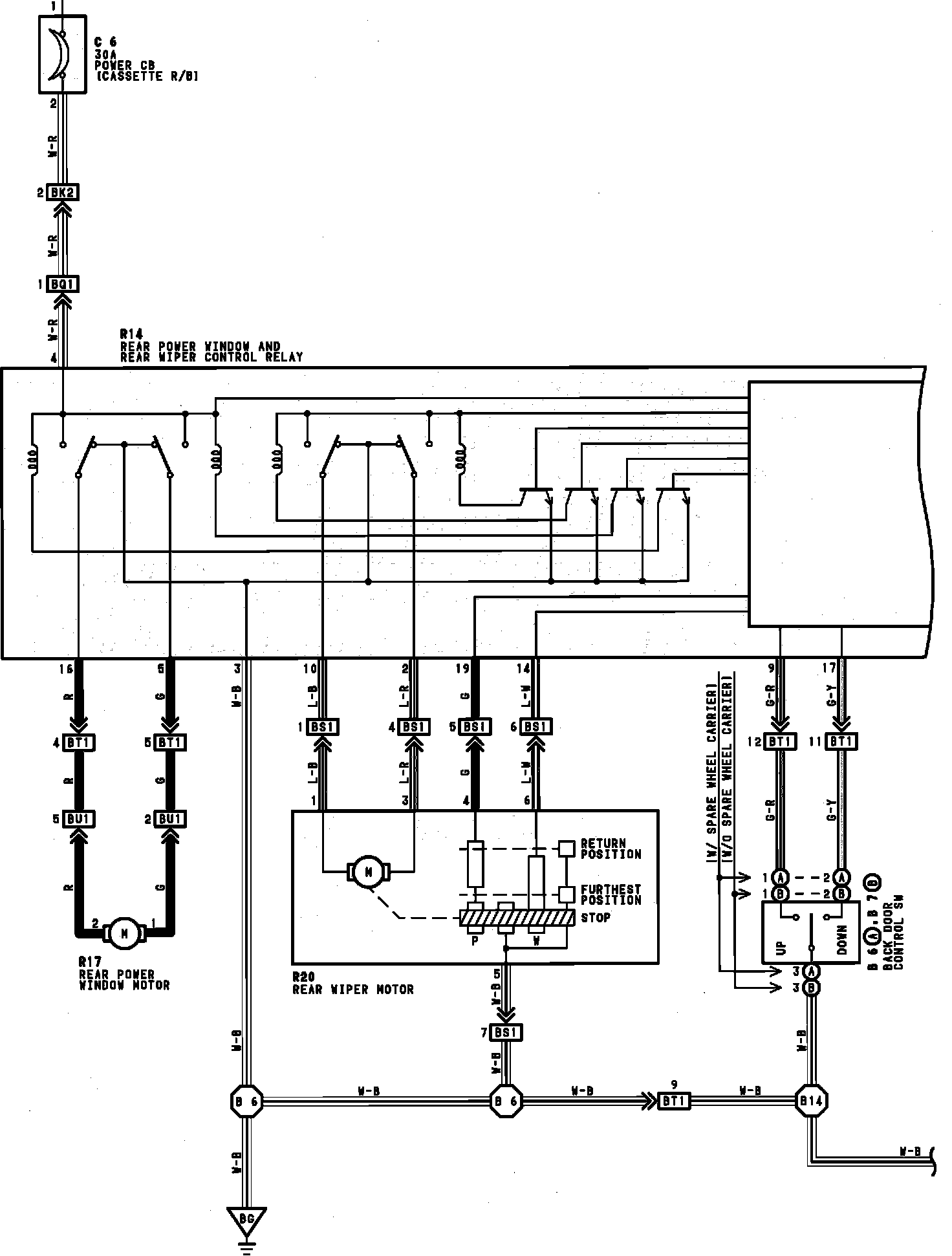

Power Window (Rear)
Power Window (Rear)
Rear Power Windows & Wiper/Washer:
Rear Power Windows & Wiper/Washer:
