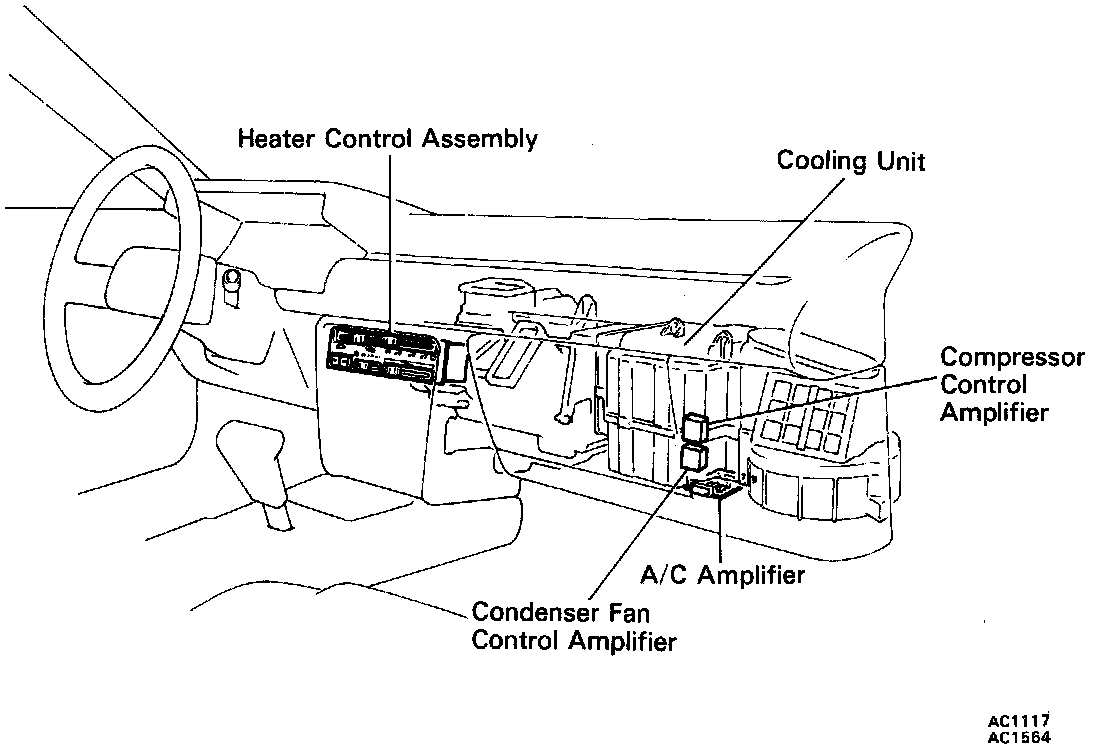

Air Conditioning Amplifier






Located on the bottom of the evaporator housing, passenger's side underdash.
