Timing Belt Removal

Timing Belt (2VZ-FE):

TIMING BELT (2VZ-FE) / REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY

2. (w/ CRUISE CONTROL SYSTEM)
REMOVE CRUISE CONTROL ACTUATOR AND VACUUM PUMP

3. REMOVE P/S OIL RESERVOIR TANK WITHOUT DISCONNECTING HOSES
4. REMOVE RH FRONT WHEEL
5. REMOVE ALTERNATOR DRIVE BELT

6. REMOVE RH FENDER APRON SEAL
7. REMOVE PS DRIVE BELT





8. REMOVE ENGINE RH MOUNTING STAYS

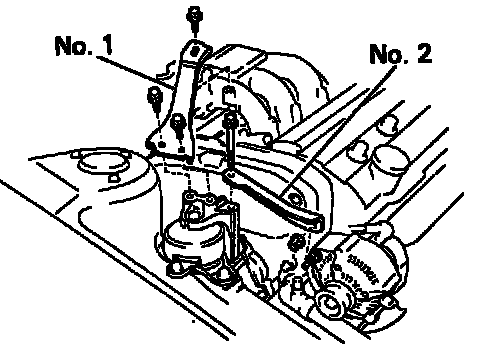

a. Remove the three bolts and No.1 mounting stay
b. Remove the bolt, nut and No.2 mounting stay






9. SLIGHTLY JACK UP ENGINE
Raise the engine enough to remove the weight from the engine mounting on the right side.

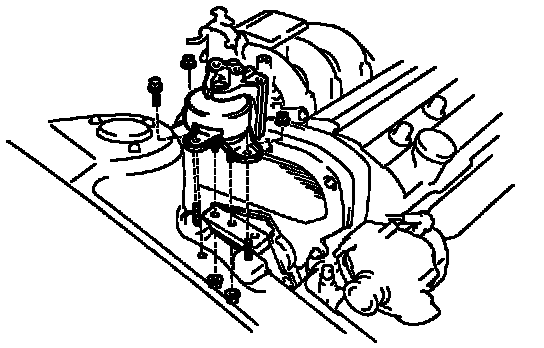

10. REMOVE ENGINE RH MOUNTING INSULATOR
a. (w/ A.B.S.)
Remove the clamp bolts of the PS oil cooler pipes.

b. Remove the bolt, four nuts and mounting insulator.


11. REMOVE SPARK PLUGS

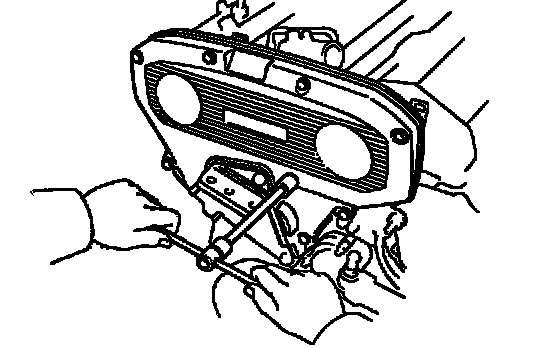

12. REMOVE NO.2 TIMING BELT COVER
Remove the eight bolts, timing belt cover and gasket.






13. REMOVE ENGINE RH MOUNTING BRACKET
Remove the three bolts and mounting bracket.






14. IF REUSING TIMING BELT, CHECK INSTALLATION MARKS ON TIMING BELT

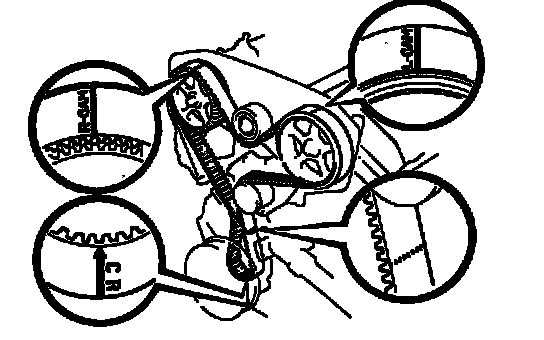

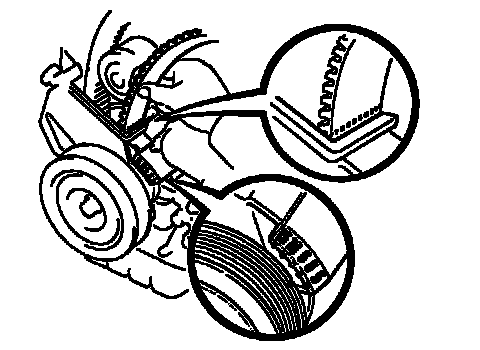

Check that there are four installation marks on the timing belt by turning the crankshaft pulley as shown in the illustration.
If the installation marks have disappeared, place a new installation mark on the timing belt before' removing each part.


15. SET NO.1 CYLINDER TO TDC/COMPRESSION

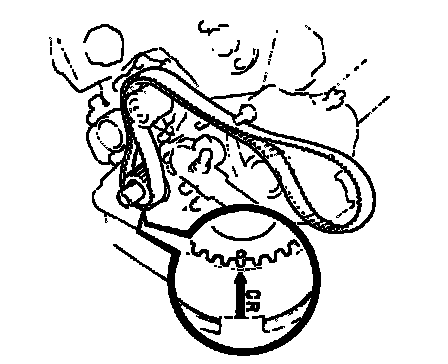

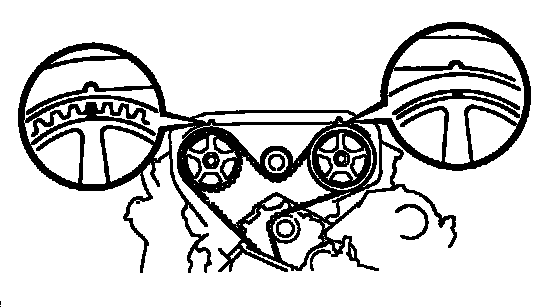

a. Turn the crankshaft pulley and align its groove with the timing mark "0" of the No.1 timing belt cover.

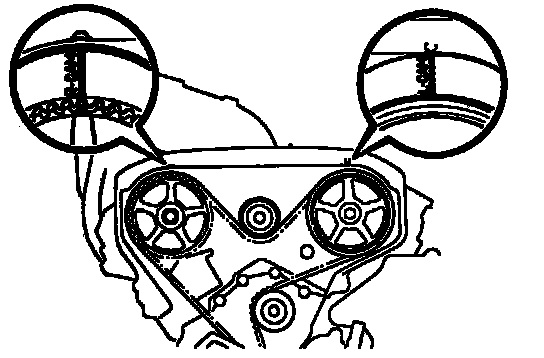

b. Check that the timing marks of the camshaft timing pulleys and the No.3 timing belt cover are aligned.

If not. turn the crankshaft one revolution (360°).






16. REMOVE TIMING BELT TENSIONER
Remove the two bolts. tensioner and dust boot.

17. REMOVE TIMING BELT FROM CAMSHAFT TIMING PULLEY






HINT: (Re-using timing belt): If the installation marks have disappeared, before removing the timing belt, place new installation marks on the timing belt to match the timing marks of the camshaft timing pulleys.

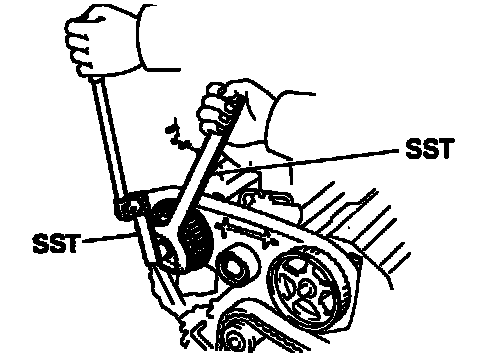

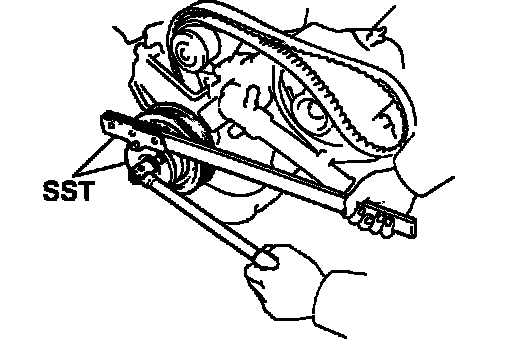

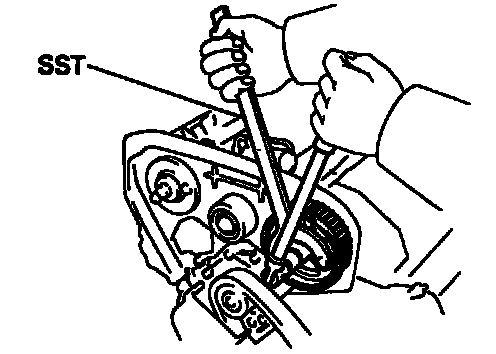

a. Using SST, loosen the tension between the LH and RH camshaft timing pulleys by slightly turning the RH camshaft timing pulley clockwise.

Special Service Tool (SST): 09278-54012

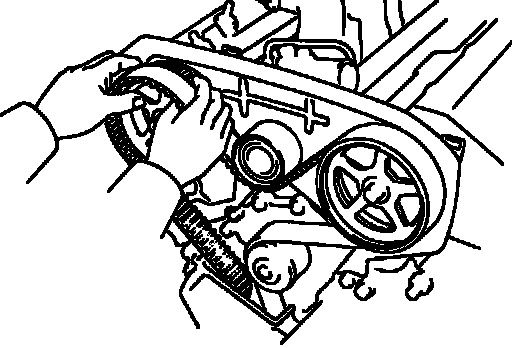

b. Remove the timing belt from the camshaft timing pulleys.






HINT: (Re-using timing belt): If the installation marks have disappeared, after removing the timing belt from the camshaft timing pulleys, place new installation mark on the timing belt to match the end of the No.1 timing belt cover.

18. REMOVE CAMSHAFT TIMING PULLEYS

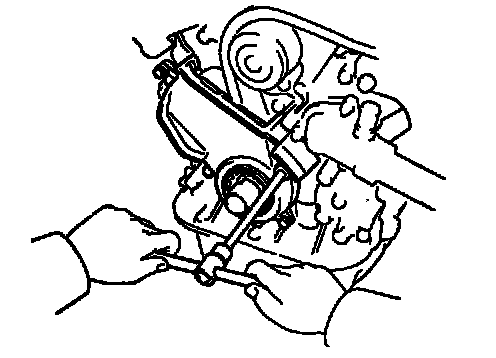

Using SST, remove the bolt, timing pulley and knock pin.
Remove the two timing pulleys.

SST:
RH .. 09249-63010 and 09278-54012
LH .. 09278-54012






HINT: Arrange the RH and LH pulleys.

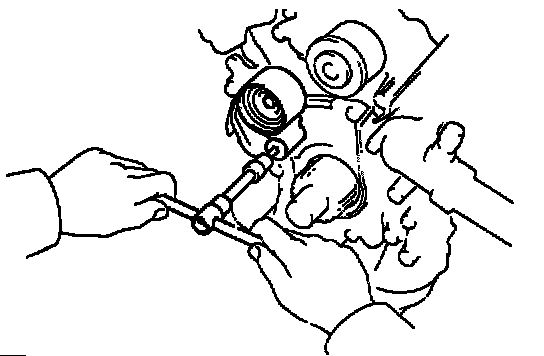

19. REMOVE NO.2 IDLER PULLEY
Remove the bolt and idler pulley.

20. REMOVE CRANKSHAFT PULLEY

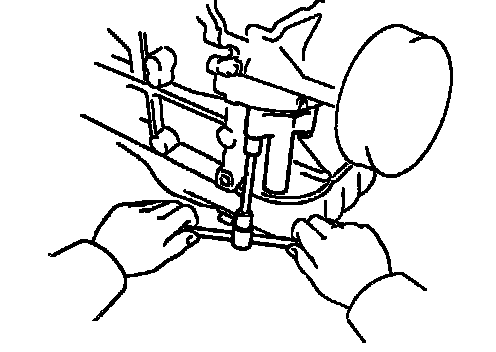

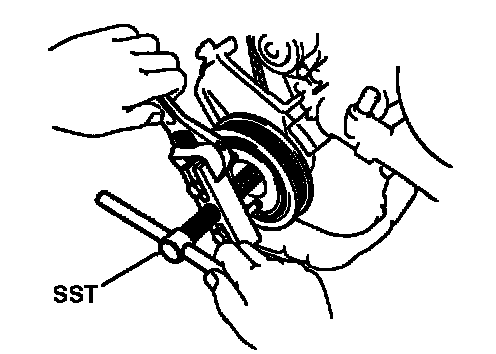

a. Using SST, remove the pulley bolt.

SST: 09213-54014 (Body)
90213-70010 (90105-08076 (Bolt) and
09330-00021






HINT: (Re-using timing belt): When the crankshaft pulley bolt is loosened, the position of the timing mark of the crankshaft pulley and the installation mark may slip, so check and align them again.

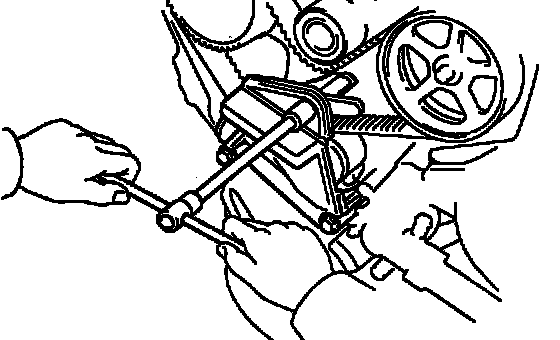

b. Using SST, remove the pulley.

SST: 09213-60017






21. REMOVE NO.1 TIMING BELT COVER
Remove the four bolts. timing belt cover and gasket.






22. REMOVE TIMING BELT GUIDE






23. REMOVE TIMING BELT

HINT: (Re-using timing belt): If the installation marks have disappeared, place new installation mark on the timing belt to match the drilled mark of the crankshaft timing pulley.

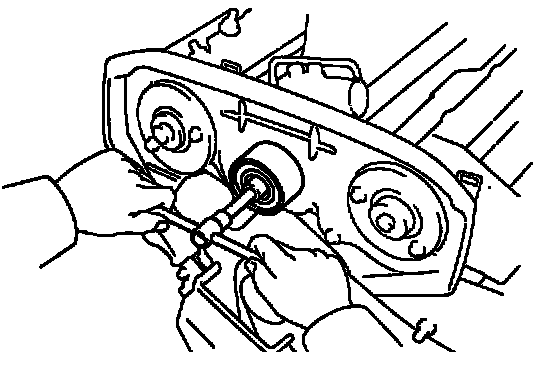

24. REMOVE NO.1 IDLER PULLEY
Using a 8 mm hexagon wrench, remove the bolt, idler pulley and plate washer.






25. REMOVE CRANKSHAFT TIMING PULLEY

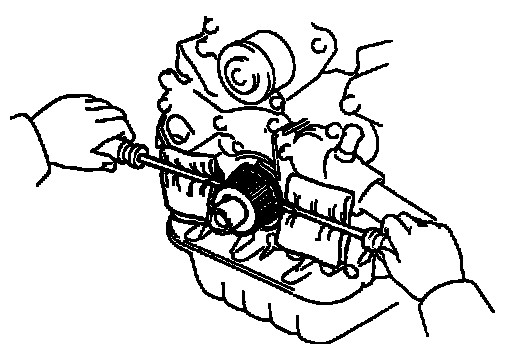

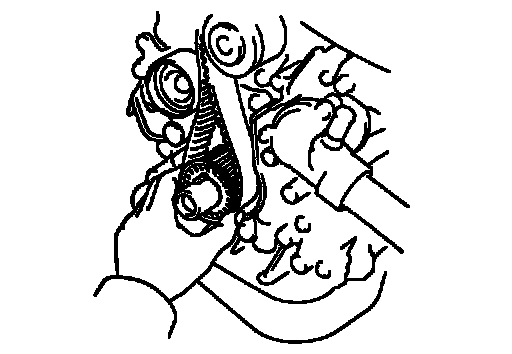

If the pulley cannot be removed by hand, use two screwdrivers.

HINT: Position shop rags as shown to prevent damage.
