First and Reverse Brake

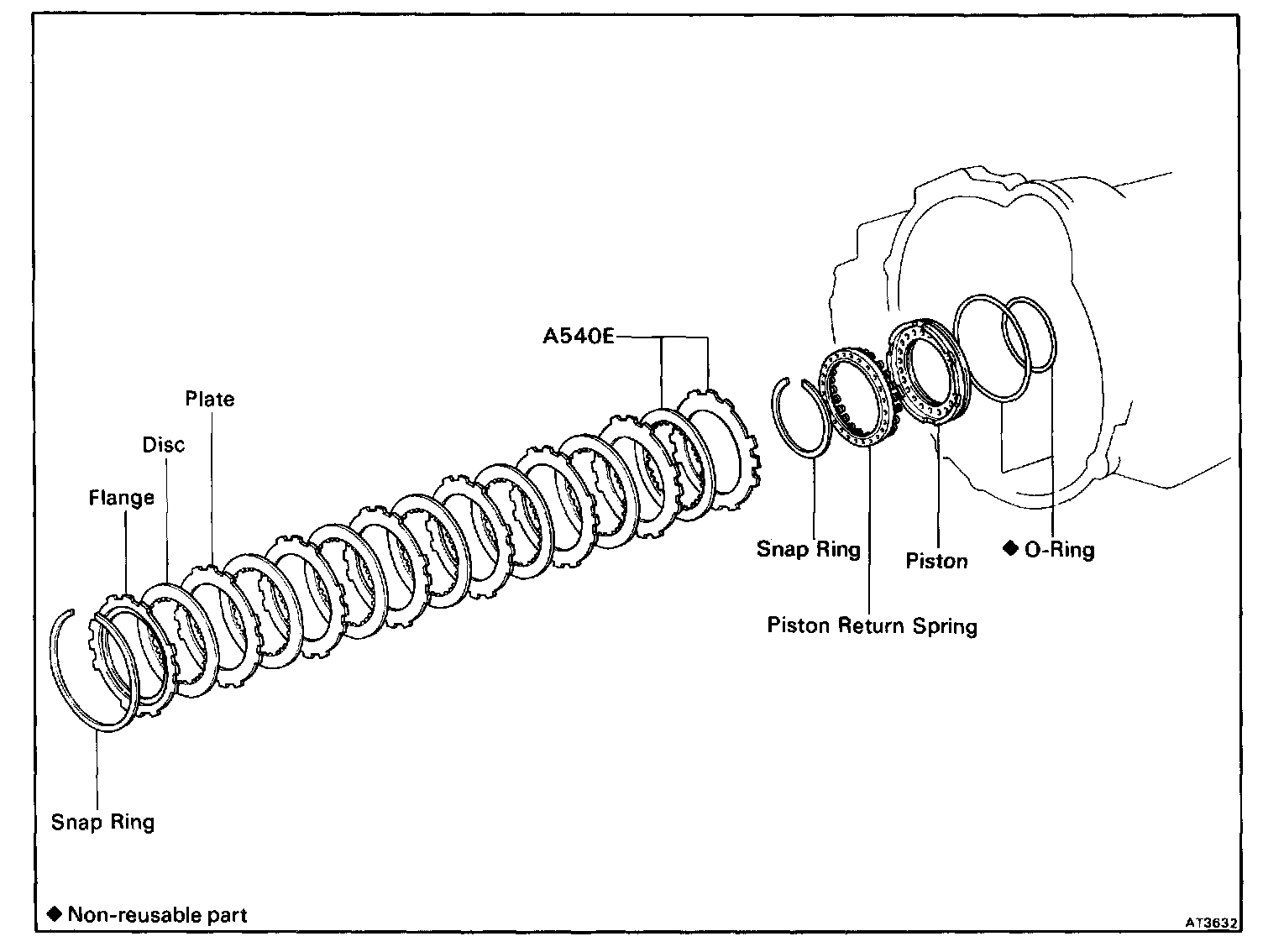

COMPONENTS




INSPECTION OF FIRST AND REVERSE BRAKE COMPONENTS

INSPECT DISCS. PLATES AND FLANGES
Check if the sliding surfaces of the discs, plates and flanges are worn or burnt. If necessary, replace them.

HINT:

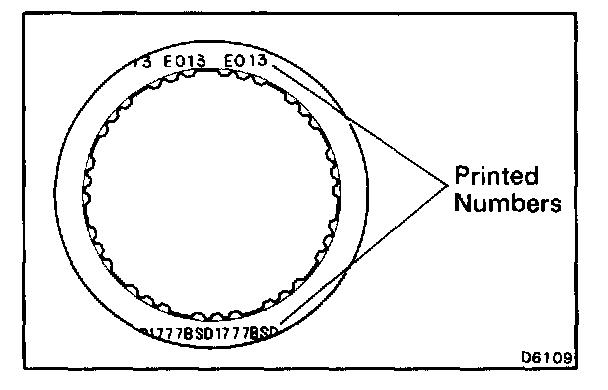

- If the lining of the disc is exfoliated or discolored, or even a part of the printed numbers are defaced, replace all discs.
- Before assembling new discs, soak them in ATF for at least fifteen minutes.
