Disassembly of Differential Case

1. REMOVE SIDE BEARING A

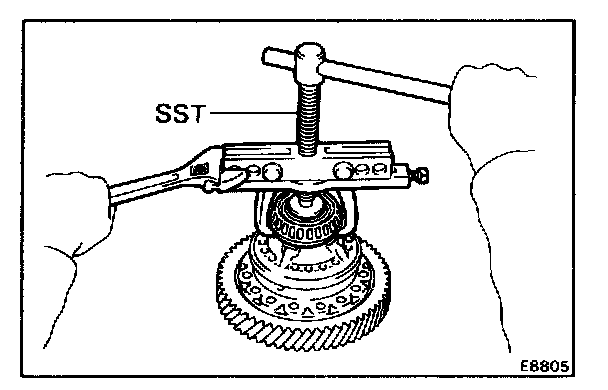

Using SST, remove the two side bearings.
SST 09950-20017




2. REMOVE RING GEAR

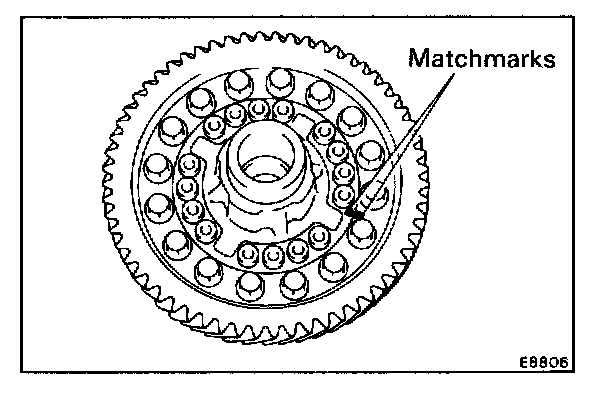

a. Place the matchmarks on both the differential case and ring gear.

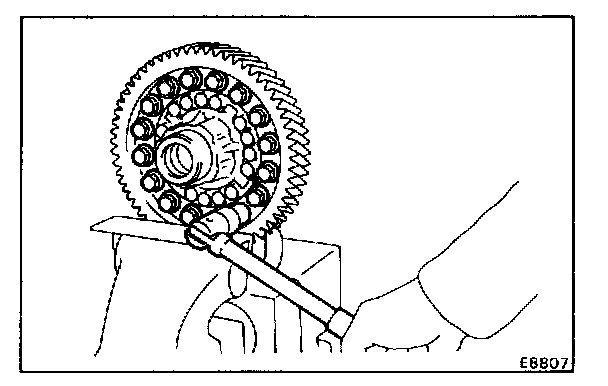

b. Remove the sixteen bolts.

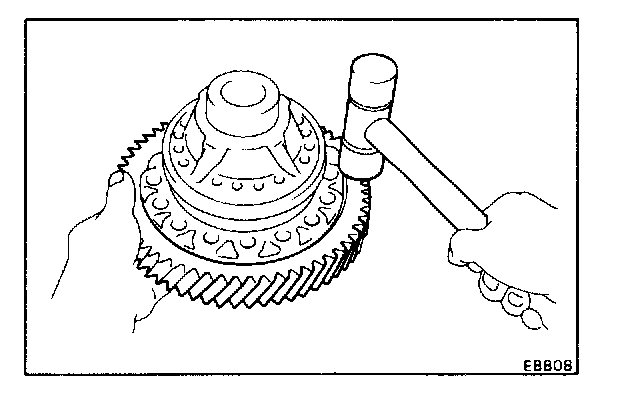

c. Using a plastic hammer, tap out the ring gear.




3. DISASSEMBLE OF DIFFERENTIAL CASE

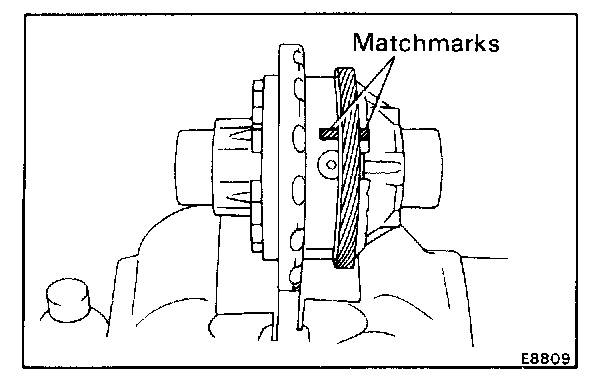

a. Place the matchmarks on the differential right and left case.

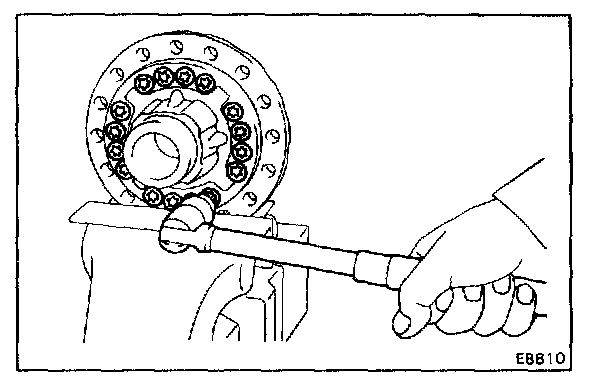

b. Using a torx socket wrench, remove the sixteen torx screws.




b. Using a torx wrench, remove the sixteen torx screws.
Torx wrench T50 09042-00040

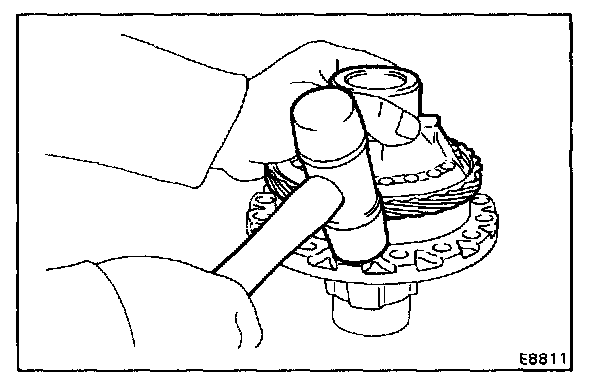

c. Using a plastic hammer, tap Out the differential left case.
d. Remove the speedometer drive gear from the differential right case.

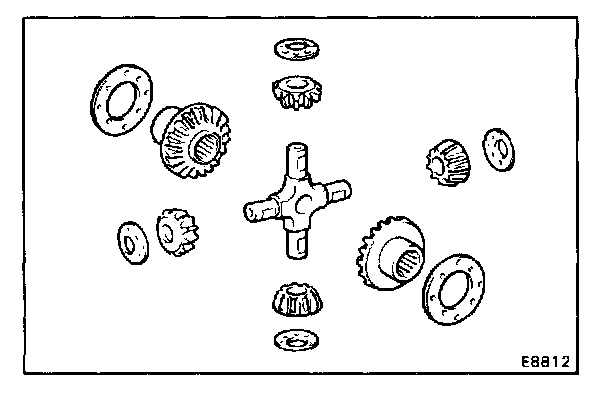

e. Remove the two differential side gears, two side gear thrust washers, differential spider, four differential pinions and four pinion washers from the differential left case.
