Disassembly of Oil Pump

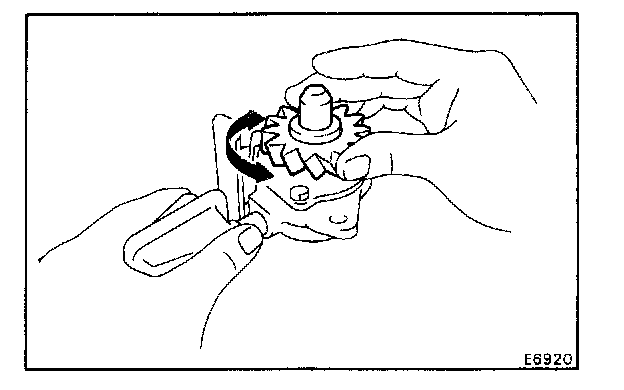

1. CHECK OPERATION OF OIL PUMP
Install the oil pump drive gear to the drive rotor, check that the drive rotor turn smoothly.

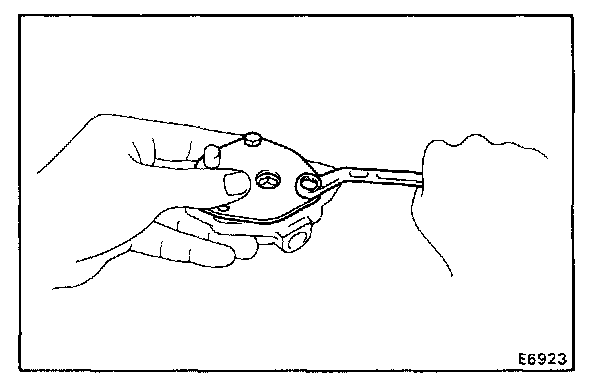

2. REMOVE GASKET TO OIL PUMP CASE

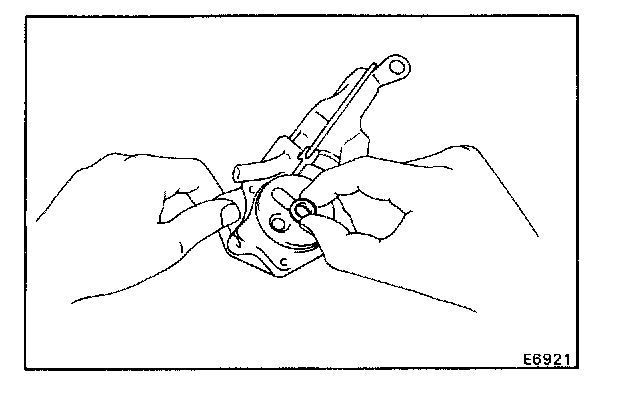

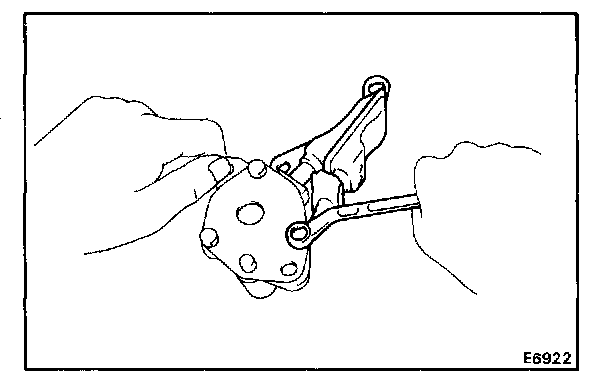

3. REMOVE BOLT AND OIL STRAINER




4. REMOVE OIL PUMP COVER
a. Hold the oil pump cover, remove the two bolts and a cover.

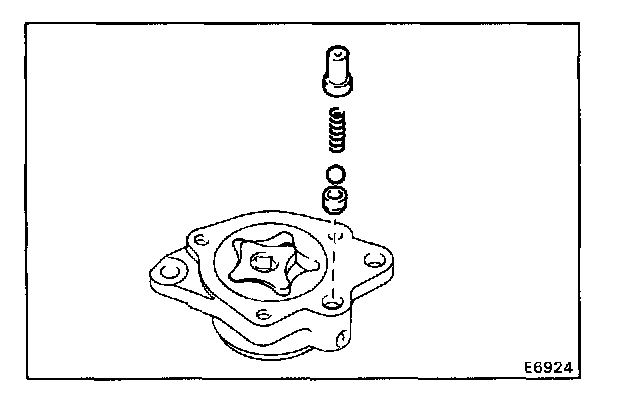

b. Remove the spring holder, spring, ball and relief valve seat.




5. CHECK ROTOR BODY CLEARANCE
a. Install the oil pump drive gear to the drive rotor.
b. Using a feeler gauge, measure the body clearance between the drive rotor and oil pump case.
Standard clearance: 0.10 - 0.16 mm (0.004 - 0.006 in.)
Maximum clearance: 0.30 mm (0.012 in.)




6. CHECK ROTOR TIP CLEARANCE
a. Install the oil pump drive gear to the drive rotor.

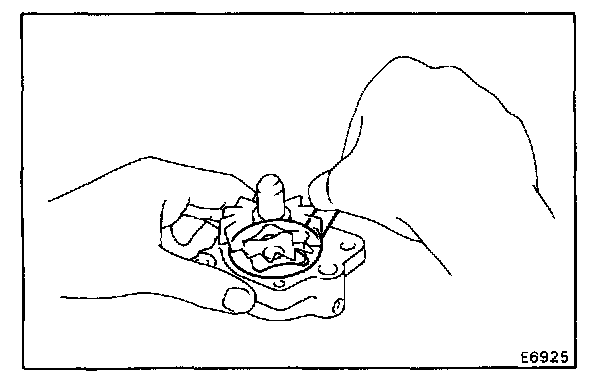

b. Using a feeler gauge, measure the tip clearance between the drive and driven rotors.
Standard clearance: 0.08 - 0.15 mm (0.003 - 0.006 in.)
Maximum clearance: 0.30 mm (0.012 in.)




7. CHECK SIDE CLEARANCE

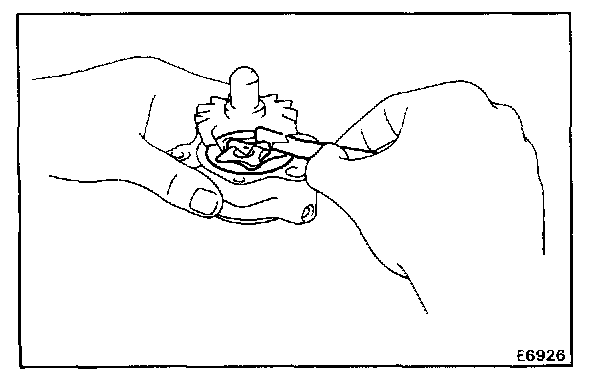

Using a precision straight edge and feeler gauge, measure the side clearance of both rotors.
Standard clearance: 0.03 - 0.08 mm (0.001 - 0.003 in.)
Maximum clearance: 0.15 mm (0.006 in.)

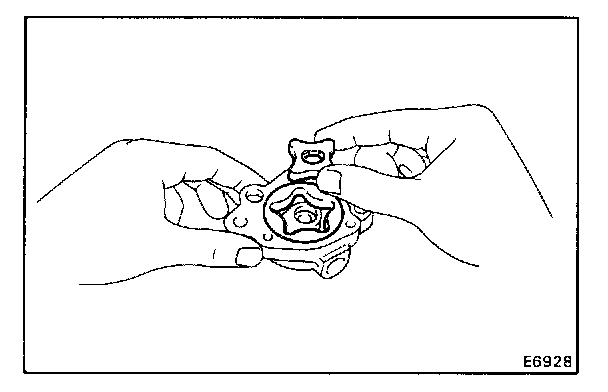

8. REMOVE OIL PUMP DRIVE ROTOR AND DRIVEN ROTOR

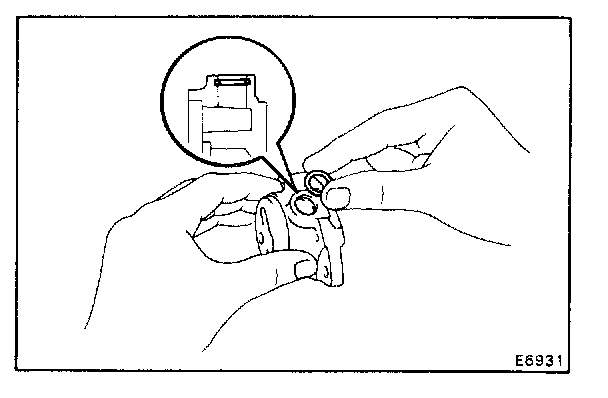

9. IF NECESSARY. REPLACE O-RING

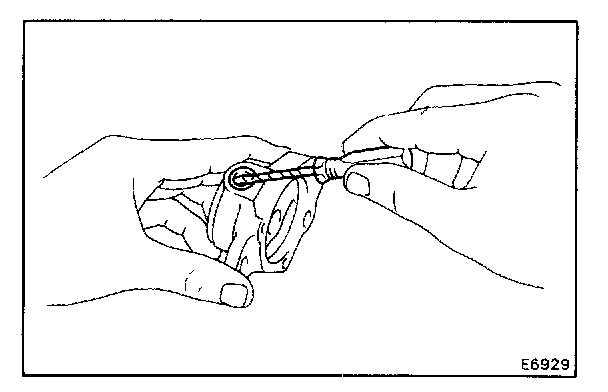

a. Using a screwdriver, remove the O-ring.




b. Apply gear oil to the O-ring.
c. Install the O-ring.
