Disassembly of Shift and Select Lever Assembly

1. REMOVE NO.2 SHIFT INNER LEVER

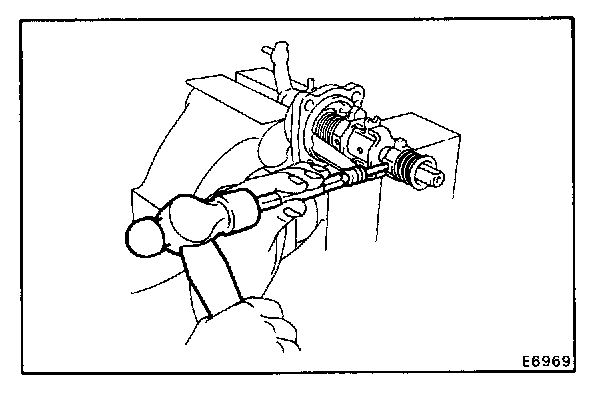

a. Using a pin punch and hammer, drive out the slotted spring pin.

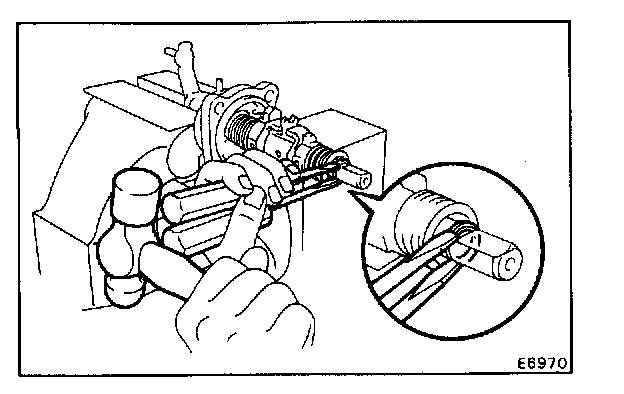

b. Using two screwdrivers and a hammer, remove the snap ring.

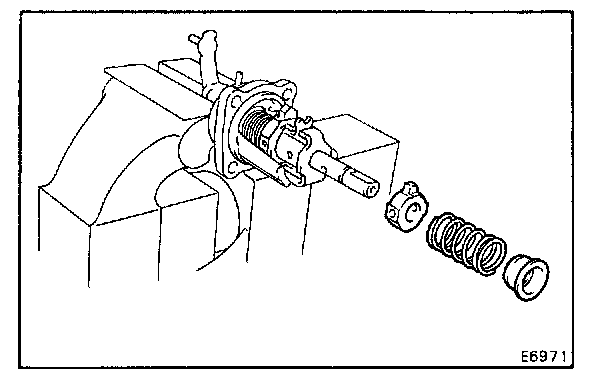

c. Remove the No.2 select spring seat, No.2 compression spring and No.2 shift inner lever.




2. REMOVE SHIFT INTERLOCK PLATE AND NO.1 SHIFT INNER LEVER

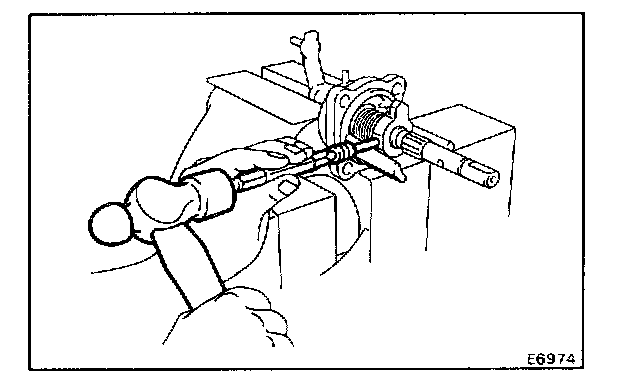

a. Using a pin punch and hammer, drive out the slotted spring pin.

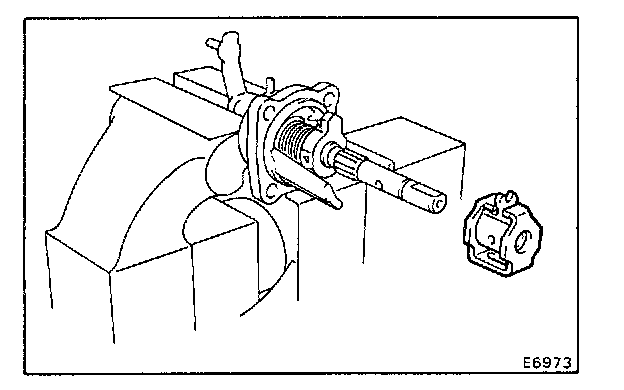

b. Remove the shift interlock plate and No.1 shift inner lever.




3. REMOVE SELECT INNER LEVER

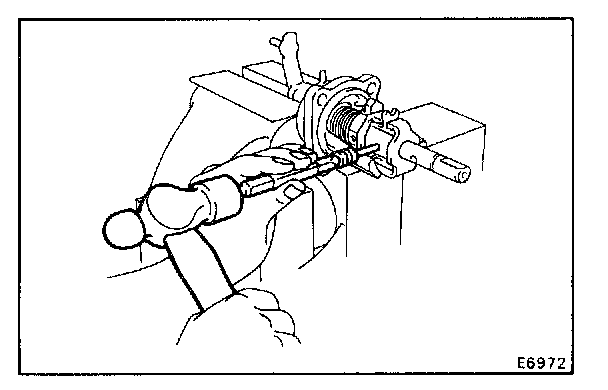

a. Using a pin punch and hammer, drive out the slotted spring pin.

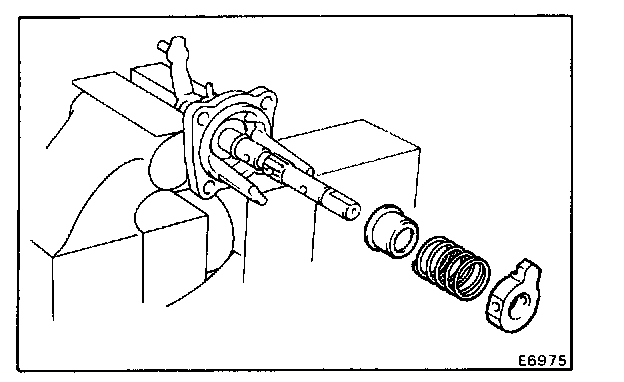

b. Remove the select inner lever, No.1 compression spring and No.1 select spring seat.




4. REMOVE SNAP RING

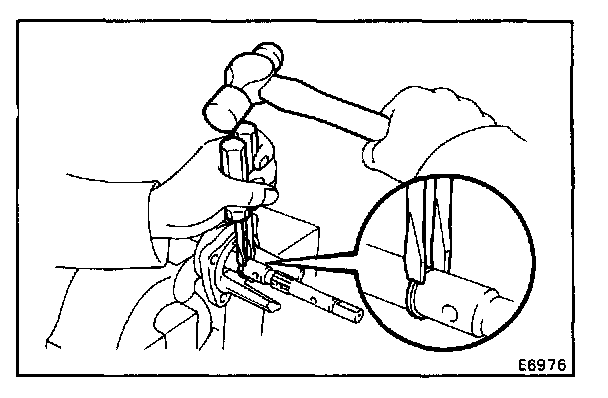

Using two screwdrivers and a hammer, remove the snap ring.




5. REMOVE CONTROL SHAFT COVER AND DUST BOOT

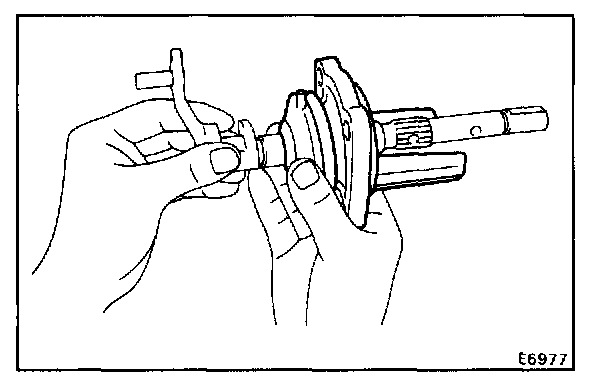

a. Remove the control shaft cover with dust boot from the shaft.
b. Remove the dust boot from the control shaft cover.
