No. 1 Speed Sensor

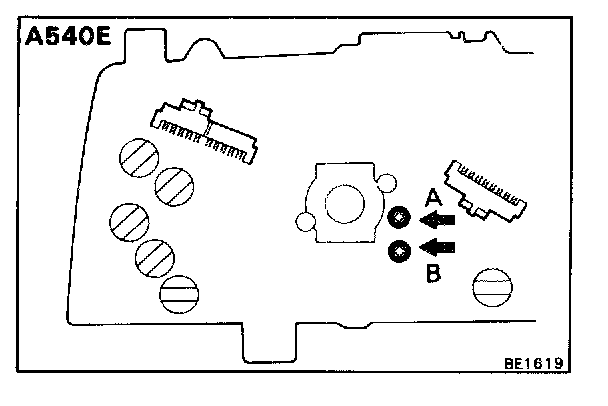

INSPECT NO.1 SPEED SENSOR IN COMBINATION METER



a. Remove the combination meter.
b. Connect an ohmmeter between terminals A and B.
c. Revolve the meter shaft and check that the meter needle repeatedly deflects from Ohm to infinity Ohms.
