Less Electronically Controlled Transaxle (ECT)
Less Electronically Controlled Transaxle (ECT)

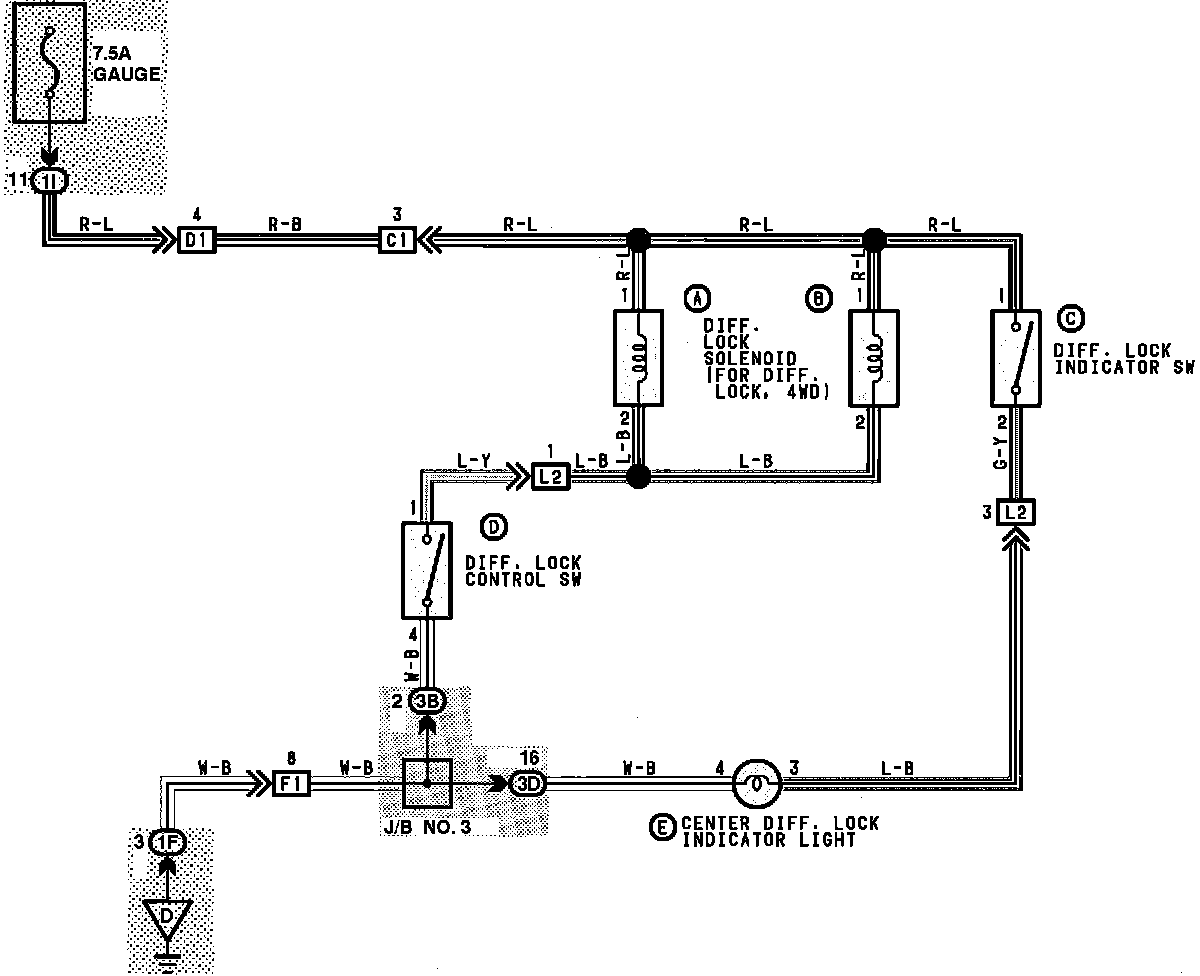

All-Trac/4 Wheel Drive (Less Electronic Controlled Transaxle (ECT)):
