Vehicle Speed Sensor and Rear Wheel Speed Sensor

INSPECT VEHICLE SPEED SENSOR AND REAR WHEEL SPEED SENSOR



a. Disconnect the connector from ECT ECU.

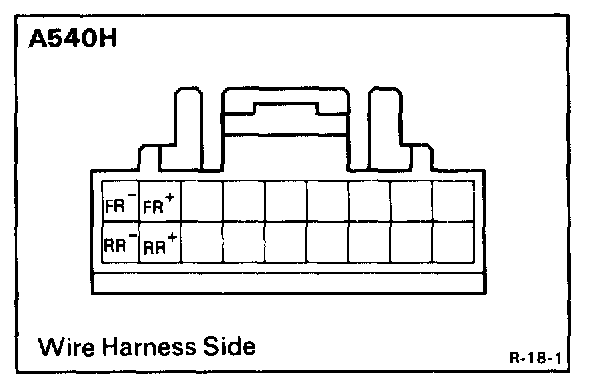

b. Measure the resistance between FR- and FR+ (vehicle speed sensor), and between RR- and RR+ (rear wheel speed sensor).

Resistance: 620 ± 60 Ohms
