D/F Technical Data

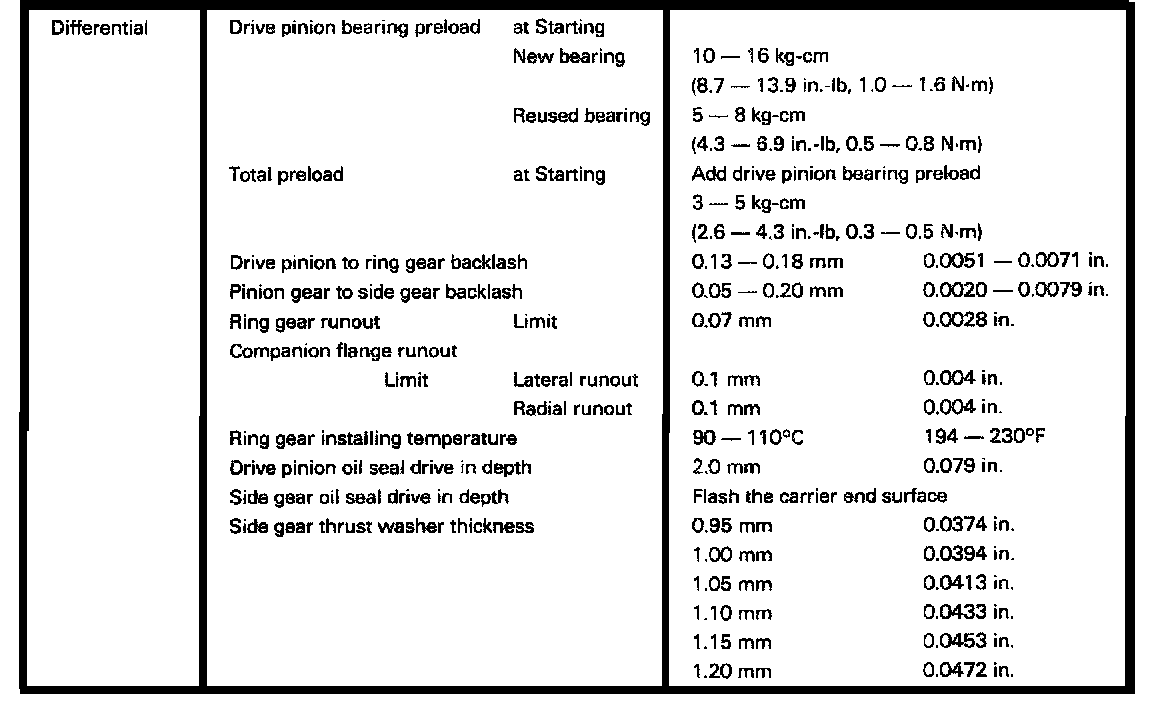

Rear Differential, Pinion Preload/Clearances:

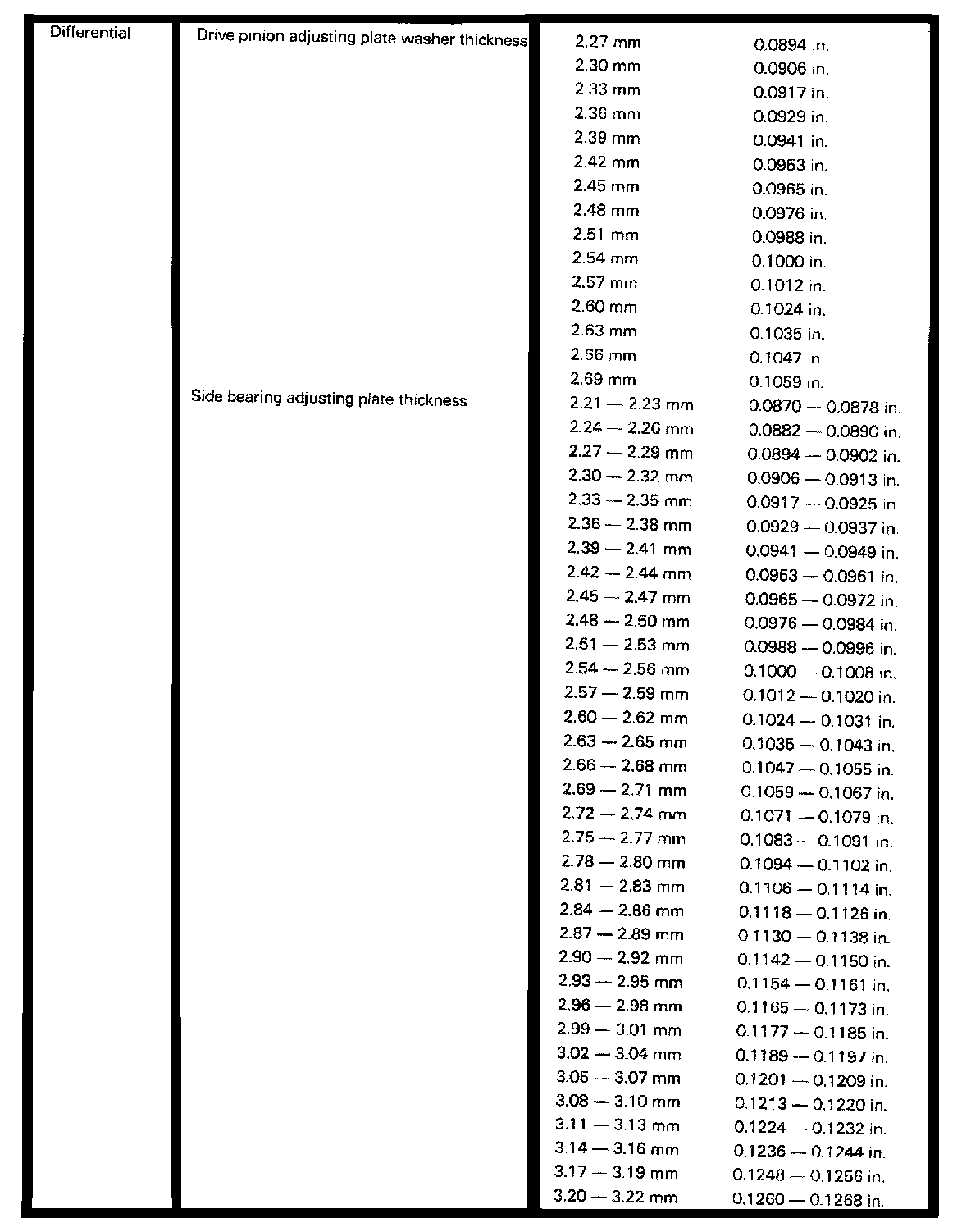

Rear Differential, Drive Pinion/Side Bearing Thickness:
