Extension Housing Oil Seal (A540H)

REPLACEMENT OF EXTENSION HOUSING OIL SEAL
1. DRAIN TRANSFER OIL
2. REMOVE PROPELLER SHAFT.



3. REMOVE EXTENSION HOUSING OIL SEAL

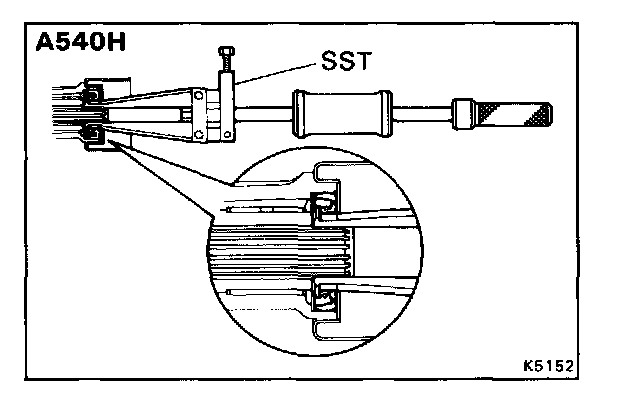

Using SST, remove the oil seal.
SST 09308-00010




4. INSTALL EXTENSION HOUSING OIL SEAL
a. Coat the lip of oil seal with MP grease.

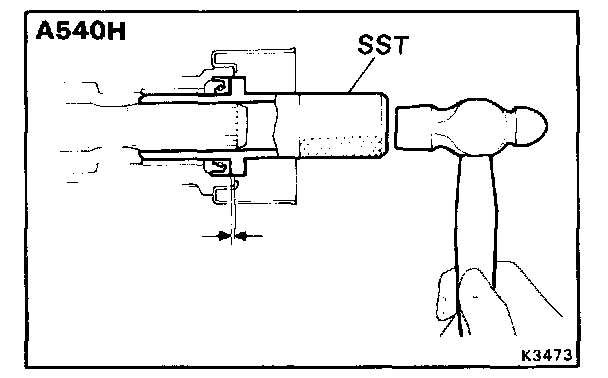

b. Using SST, drive in a new oil seal.
SST 09325-20010

5. INSTALL PROPELLER SHAFT.
6. FILL TRANSFER OIL.
