Camry Wagon L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Diagrams
>>
Electrical Diagrams
>>
Side Doors
Side Doors

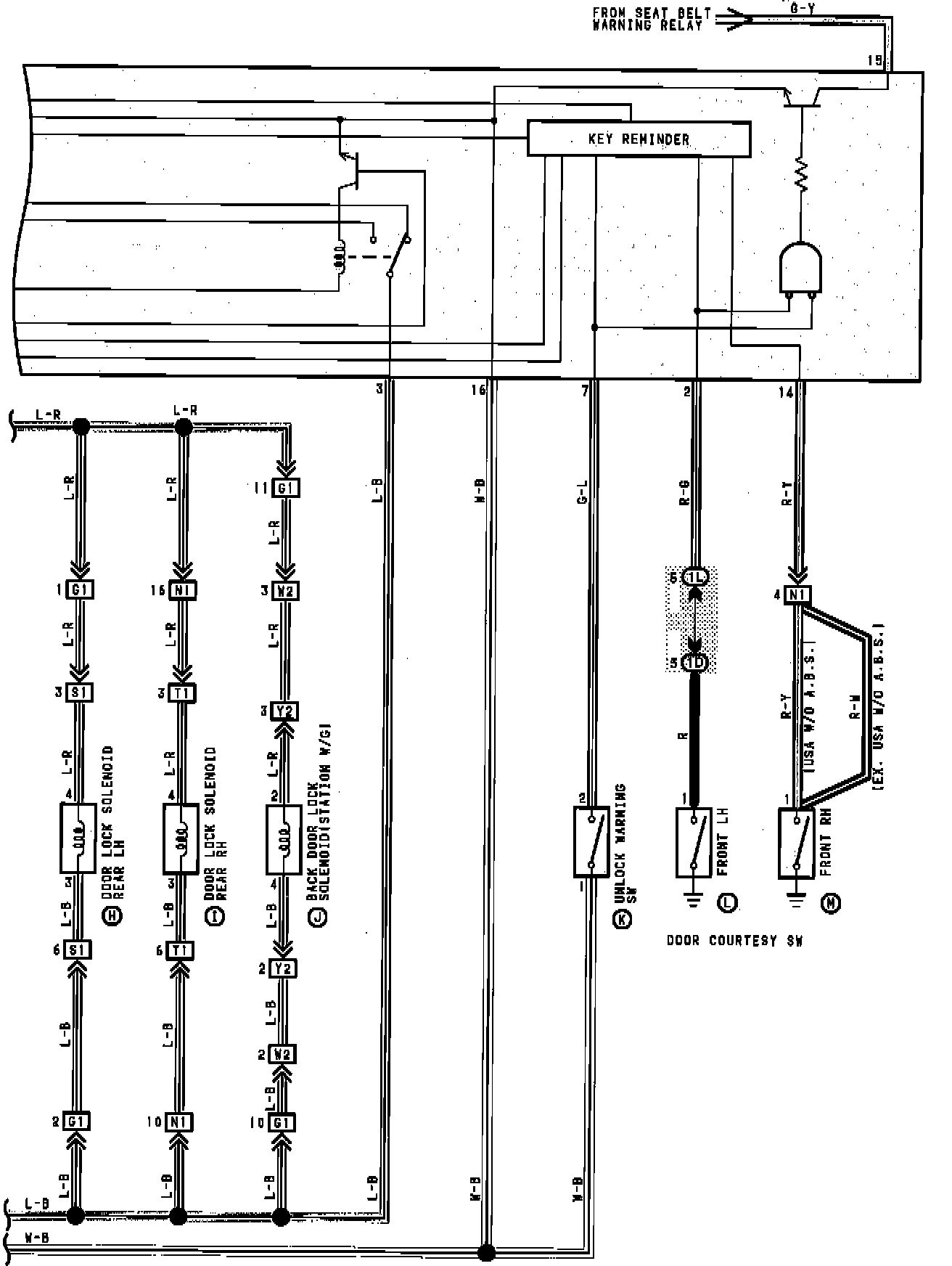

Power Door Locks (Part 1 Of 2):

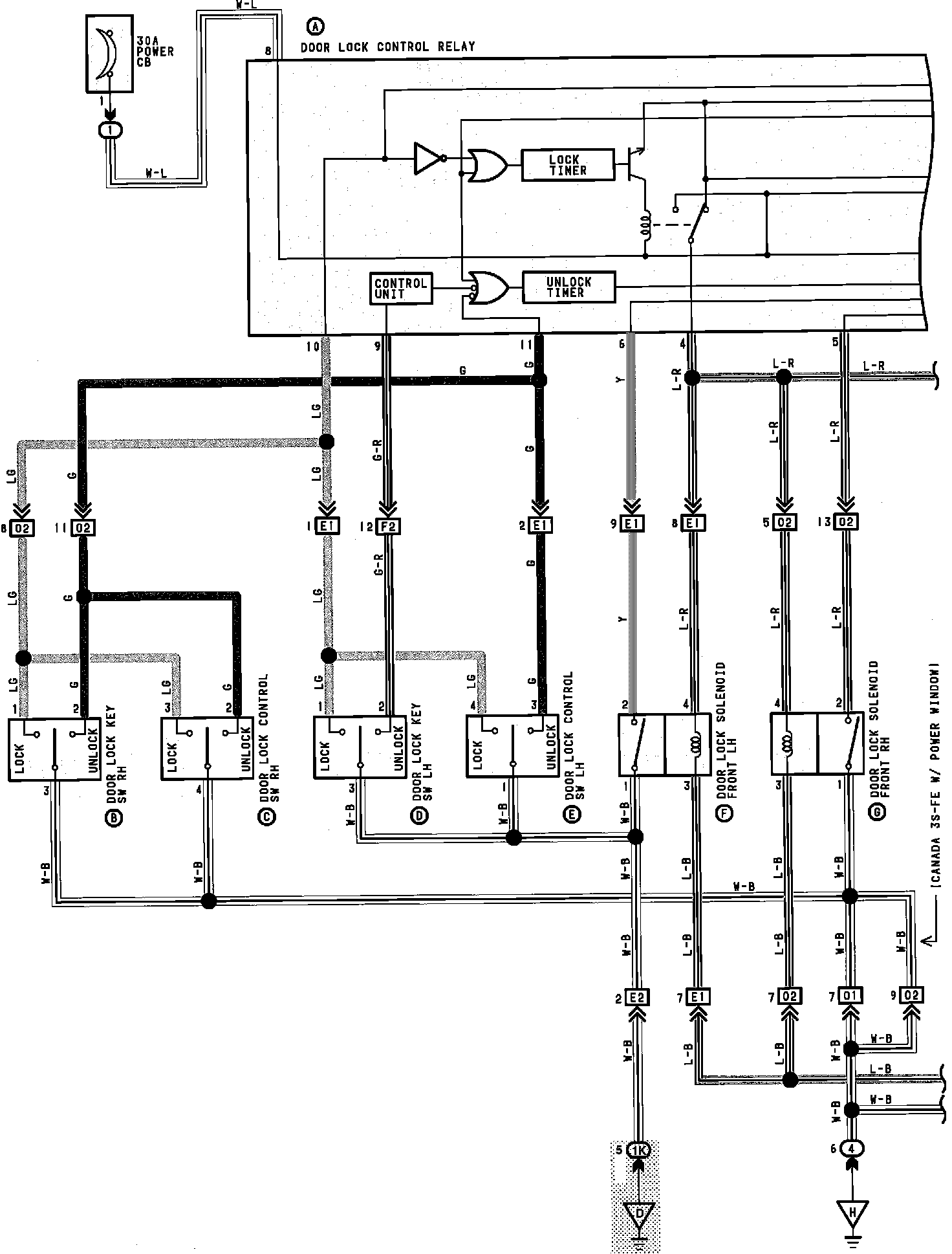

Power Door Locks (Part 2 Of 2):
