Power Mirror Motor: Testing and Inspection

INSPECTION OF REMOTE CONTROL MIRROR

INSPECT MIRROR OPERATION

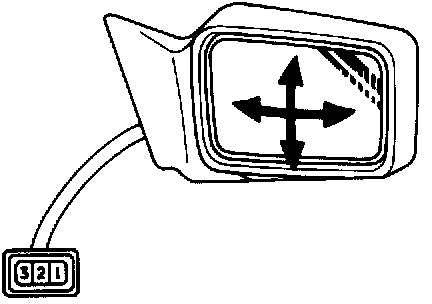

(a) Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, check that the mirror moves upward.
Then, reverse the polarity, check that the mirror operation is reversed.

(b) Connect the positive (+) lead from the battery to terminal 2 and negative (-) lead to terminal 3, check that the mirror moves to the right.
Then, reverse the polarity, check that the mirror operation is reversed.

If there is no mirror operation, replace the mirror.
